Product Details | GROOVED CLAMP COUPLING

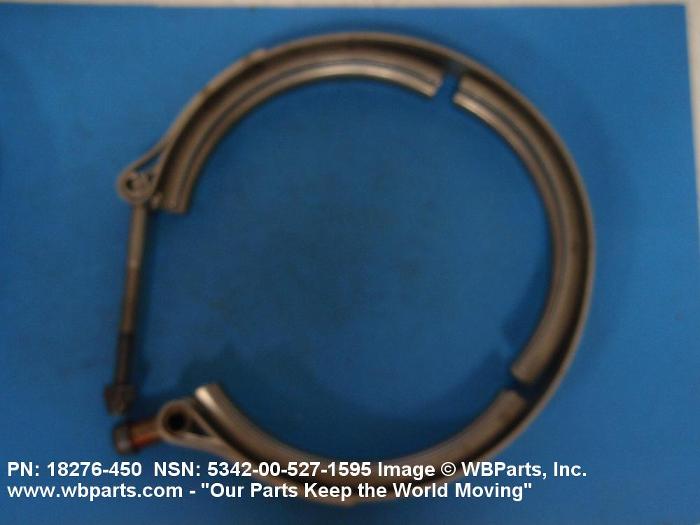

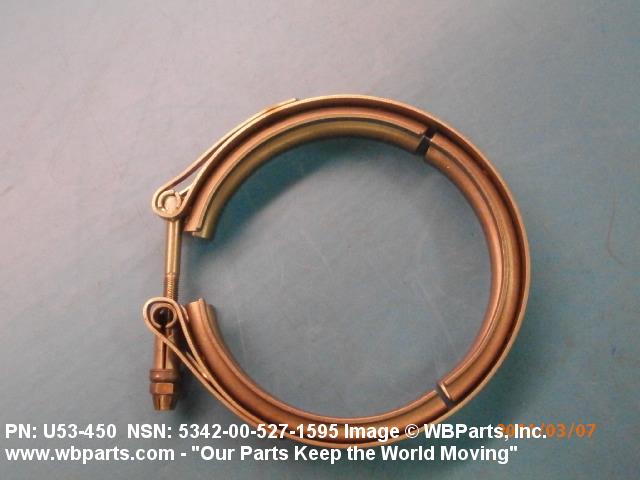

5342-00-527-1595 A metal loop having either a V or U cross section or channelled segment(s). It may be attached to a flat band. It is designed to create a fluid tight joint and/or connect pipe, tubing, tank cover(s), duct(s) and the like, by mating with flanged or beaded ferrule(s), flared, or beaded ends. It may or may not have a sealing inner liner. A latch or latches of the quick coupling type, nut or bolt type, or threaded trunnion type is (are) used to lock and adjust the band. Excludes COUPLING, CLAMP, PIPE and RING, LOCKING, METAL DRUM COVER.
Part Alternates: U53450, U53-450, 99808-0534, 18276450, 18276-450, 813114EA534Z, 813114EA-534-Z, 94H00450, 94H00-450, 5342-00-527-1595, 00-527-1595, 5342005271595, 005271595, 998080534
Hardware and Abrasives | Hardware, Weapon System
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-527-1595 | 20319 ( COUPLING, CLAMP, GROOVED ) |

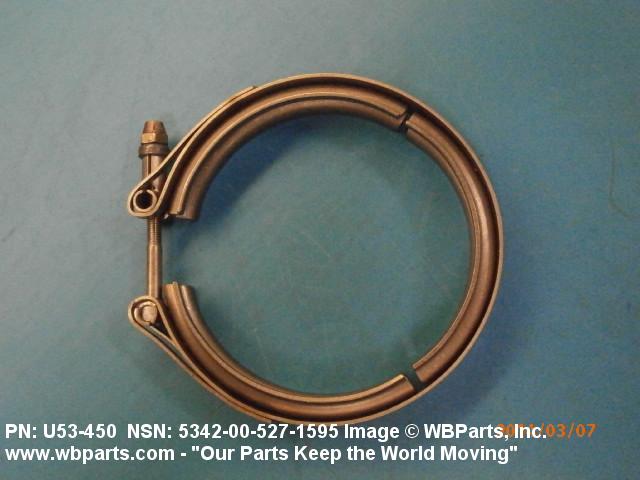

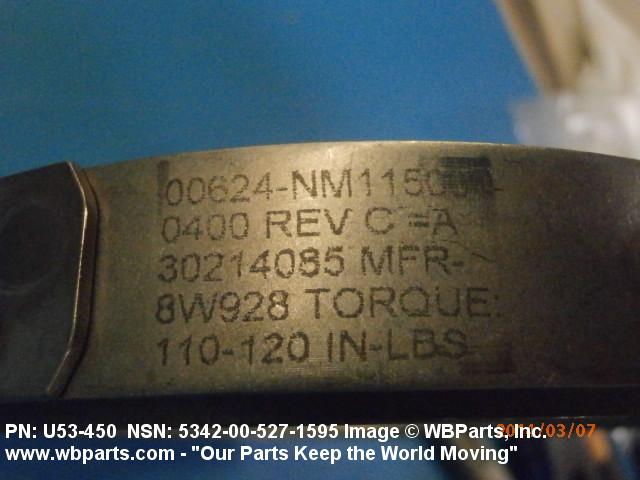

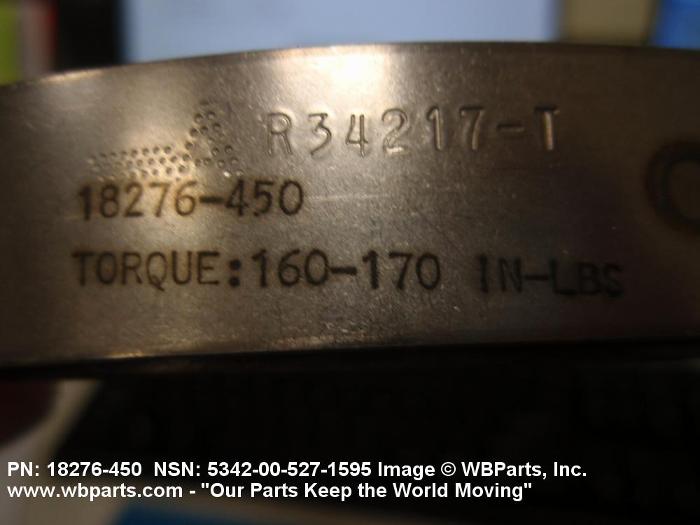

Drawings & Photos | NSN 5342-00-527-1595
Demand History | NSN 5342-00-527-1595
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 18276-450 | 2020-10-15 | 56 | DIBBS |
| 813114EA-534-Z | 2020-10-15 | 56 | DIBBS |
| 94H00-450 | 2020-10-15 | 56 | DIBBS |
| 99808-0534 | 2020-10-15 | 56 | DIBBS |
| U53-450 | 2020-10-15 | 56 | DIBBS |
| 18276-450 | 2020-10-07 | 56 | DIBBS |
| 813114EA-534-Z | 2020-10-07 | 56 | DIBBS |
| 94H00-450 | 2020-10-07 | 56 | DIBBS |
| 99808-0534 | 2020-10-07 | 56 | DIBBS |
| U53-450 | 2020-10-07 | 56 | DIBBS |
| 5342-00-527-1595 | 2018-02-20 | 37 | DIBBS |
| 5342-00-527-1595 | 2018-02-06 | 37 | DIBBS |
| 5342-00-527-1595 | 2018-01-21 | 34 | DIBBS |
| 5342-00-527-1595 | 2016-10-18 | 11 | DIBBS |
| 5342-00-527-1595 | 2016-08-17 | 11 | DIBBS |
| 5342-00-527-1595 | 2016-08-09 | 11 | DIBBS |
| 5342-00-527-1595 | 2016-02-21 | 13 | DIBBS |
| 5342-00-527-1595 | 2016-01-10 | 7 | DIBBS |
| 5342-00-527-1595 | 2015-08-27 | 10 | DIBBS |
| 5342-00-527-1595 | 2015-08-19 | 10 | DIBBS |
| 5342-00-527-1595 | 2014-11-11 | 1 | CA |
| 5342-00-527-1595 | 2014-02-24 | 1 | Canada |
| 5342-00-527-1595 | 2014-02-18 | 31 | Canada |
| 5342-00-527-1595 | 2011-02-15 | 2 | Canada |
| 5342-00-527-1595 | 2009-06-19 | 15 | DIBBS |
Cross Reference | NSN 5342-00-527-1595
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 18276-450 | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| 18276-450 | 8W928 | EATON CORPORATION DBA EATON QUIP |
| 813114EA-534-Z | 14242 | VOSS INDUSTRIES, INC. |
| 94H00-450 | 72914 | GRIMES AEROSPACE COMPANY DBA HONEYWELL |
| 94H00-450 | 8W928 | EATON CORPORATION DBA EATON QUIP |
| 99808-0534 | 54646 | CLAMPCO PRODUCTS, INC. DIV CLAMPCO PRODUCTS, INC. |
| U53-450 | 43002 | NATIONAL UTILITIES CO |
| U53-450 | 94581 | V I J CORPORATION DBA NUCO |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5342-00-527-1595
Related Products | NSN 5342-00-527-1595
5342-00-527-1599, 5342-00-527-2366, 5342-00-527-2368, 5342-00-527-3213, 5342-00-528-1582
Technical Data | NSN 5342-00-527-1595

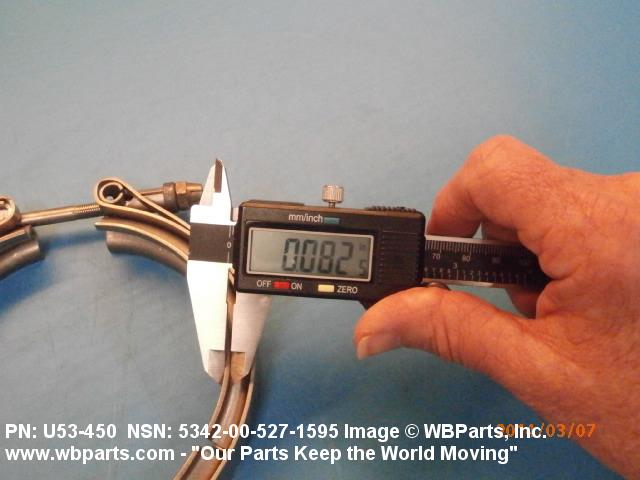

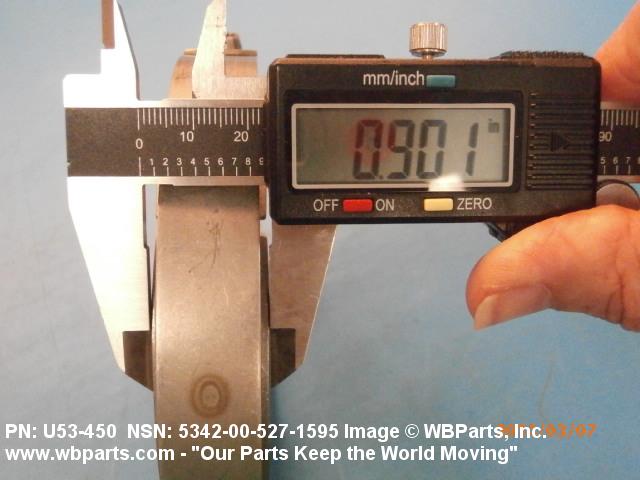

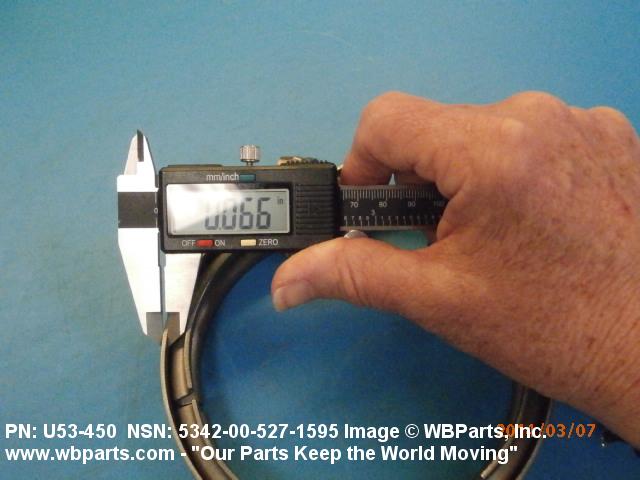

| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE STYLE | 1 GROOVED RETAINER |
| RETAINER THICKNESS | 0.080 INCHES NOMINAL |
| RETAINER WIDTH | 0.880 INCHES NOMINAL |
| ROOT WIDTH | 0.207 INCHES NOMINAL |
| BAND THICKNESS | 0.062 INCHES NOMINAL |

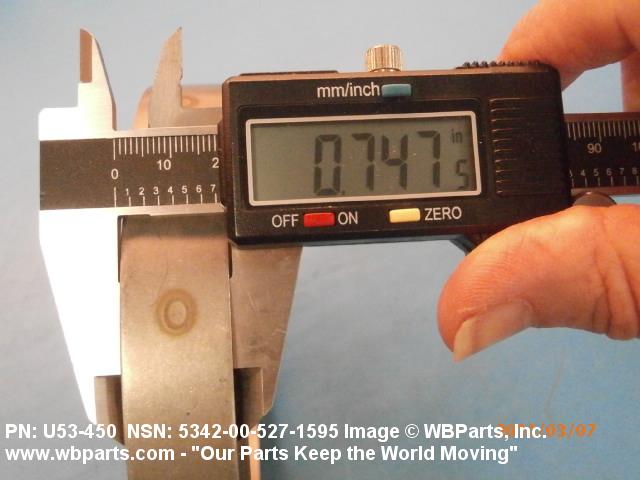

| BAND WIDTH | 0.750 INCHES NOMINAL |

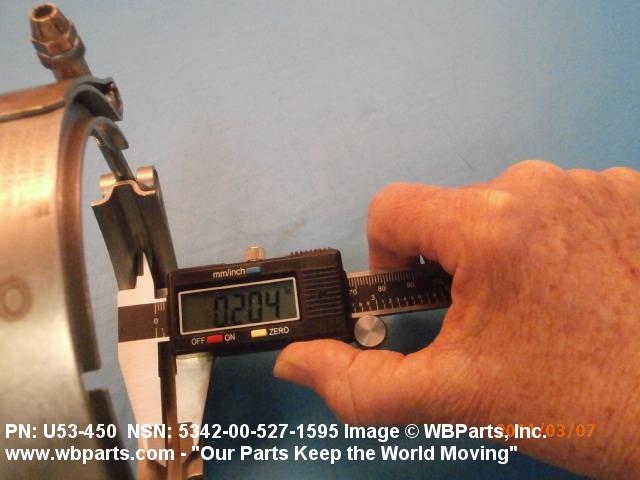

| HEIGHT | 0.280 INCHES NOMINAL |
| INCLUDED ANGLE IN DEG | 40.0 |
| MATERIAL AND LOCATION | STEEL NUT STEEL, MIL-S-5059, TYPE 301, 1/2 HARD BAND STEEL, MIL-S-18732, TYPE 431 BOLT STEEL MIL-S-6721 TYPE T1 1/8 HARD SEGMENT |
| SHAPE | ROUND |

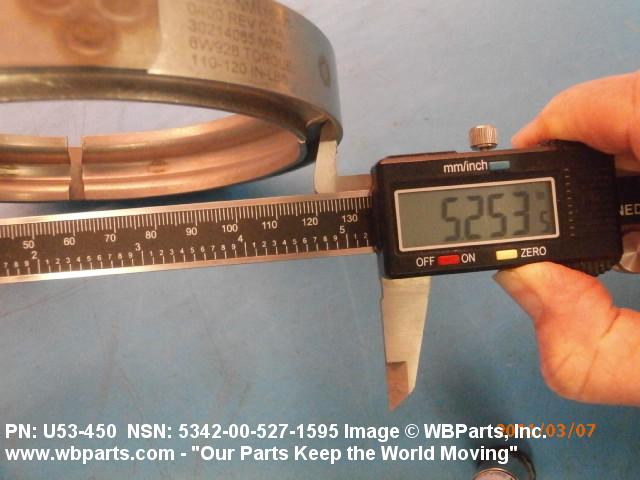

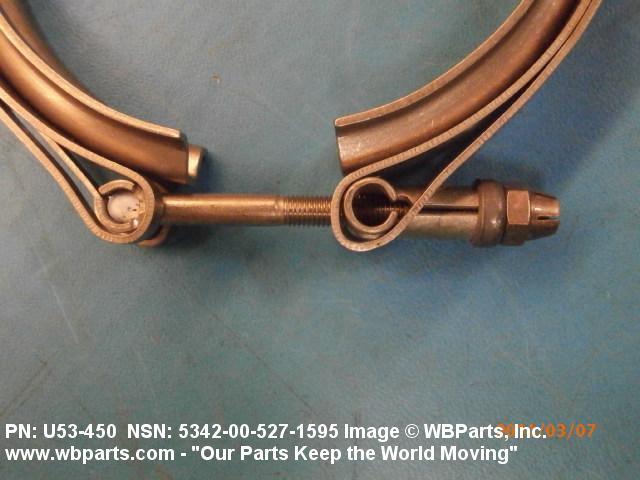

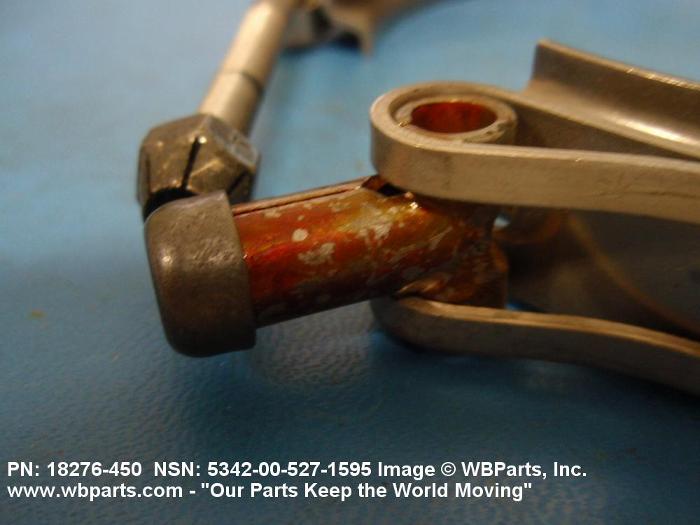

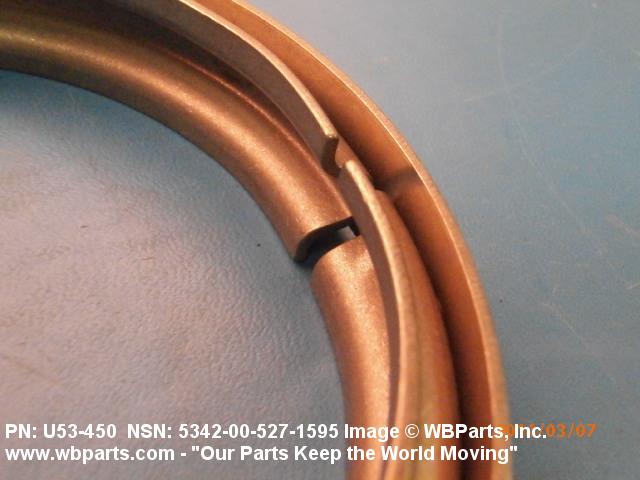

| INSIDE DIAMETER | 5.345 INCHES NOMINAL |
| LATCH STYLE | 31 SINGLE |
| NUT TYPE | SELF-LOCKING HEXAGON |
| SEGMENT QUANTITY | 3 |
| SEALING INNER LINER | NOT INCLUDED |
| TEMP RATING | NOT RATED |
| MAXIMUM LOAD RATING | NOT RATED |
