NSN 5342-00-572-8727 3XE5B , 00-572-8727, 005728727
Product Details | ENGINE ACCESSORY BRACKET
5342-00-572-8727 A bracket specifically designed for the purpose of mounting and supporting miscellaneous accessories. Excludes adjusting arms.
Part Alternates: 3XE5B , 5342-00-572-8727, 00-572-8727, 5342005728727, 005728727
Hardware and Abrasives | Hardware, Weapon System
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1961 | 00-572-8727 | 37122 ( BRACKET, ENGINE ACCESSORY ) |

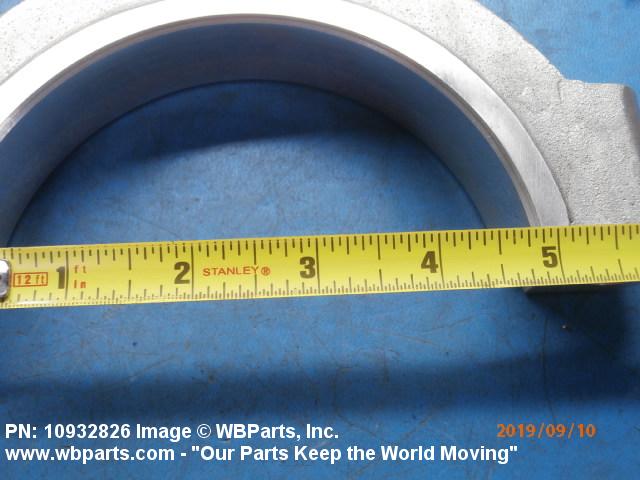

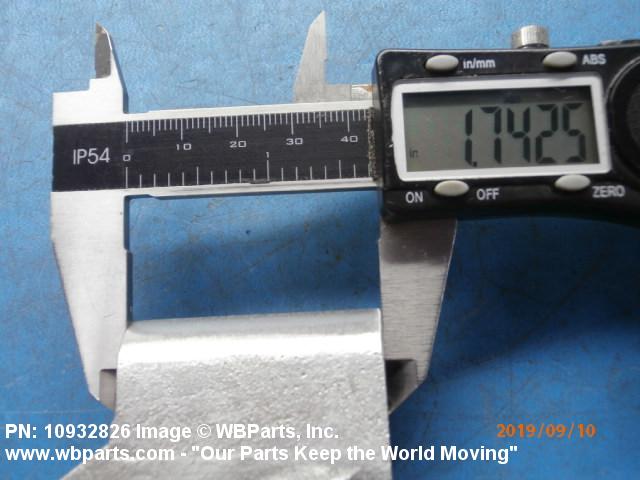

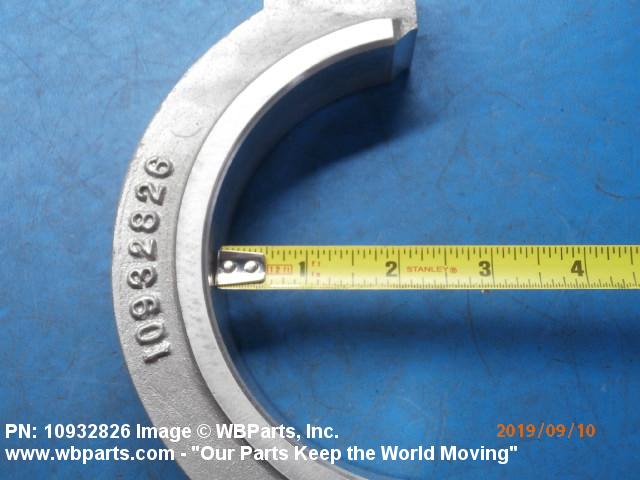

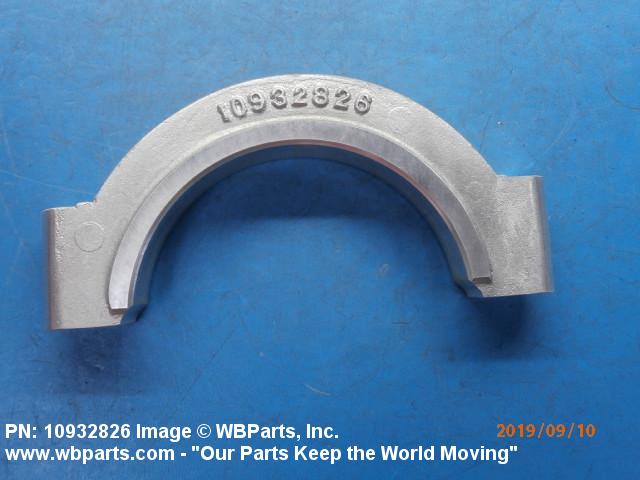

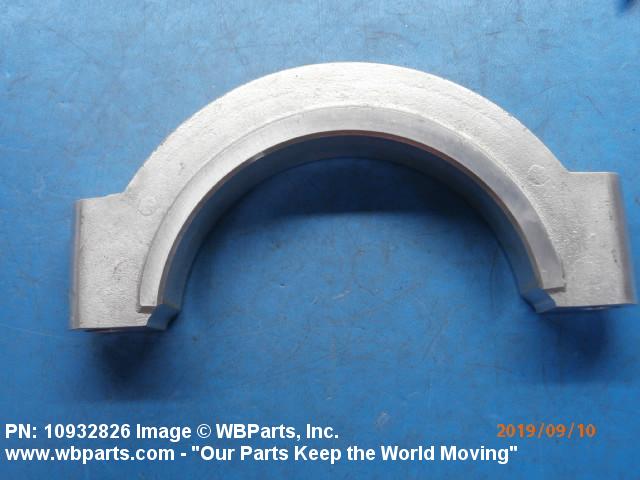

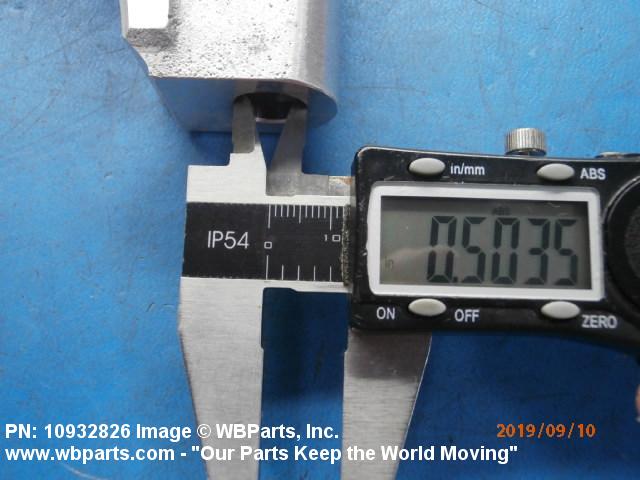

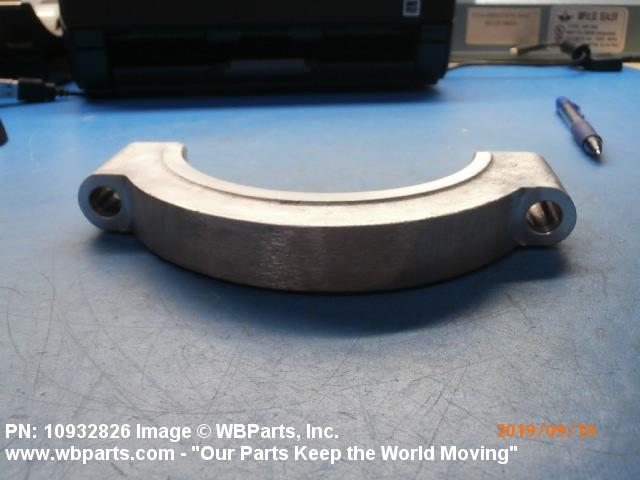

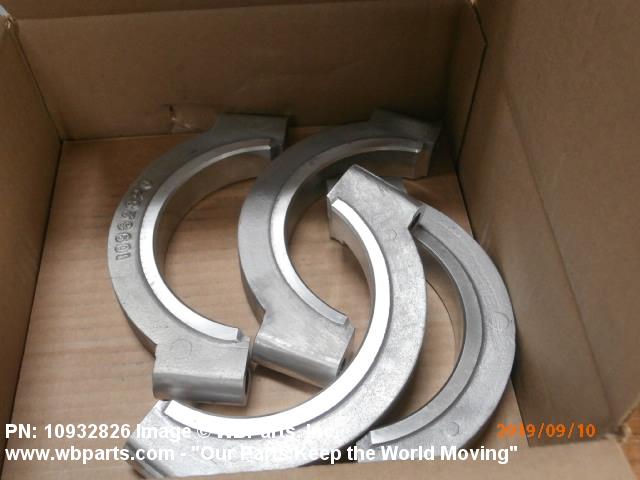

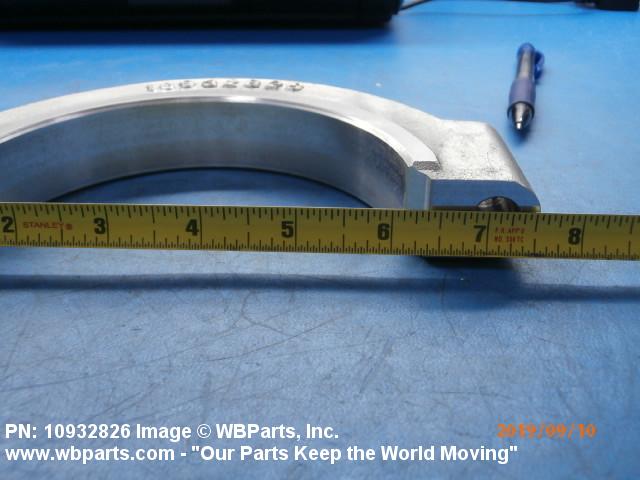

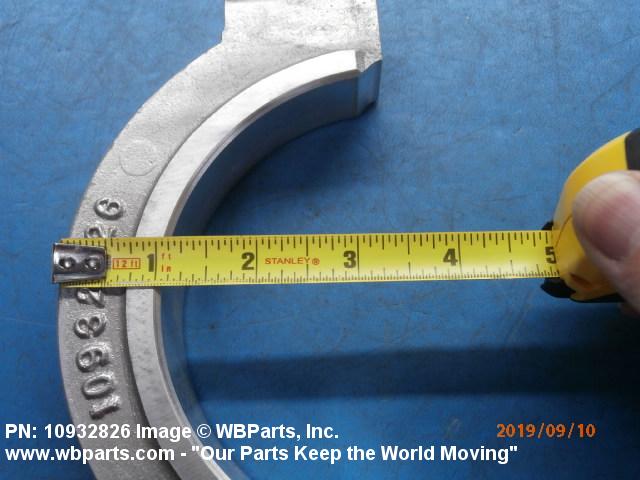

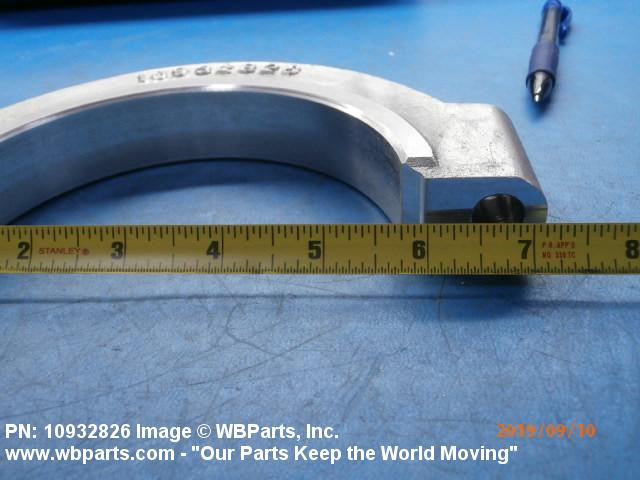

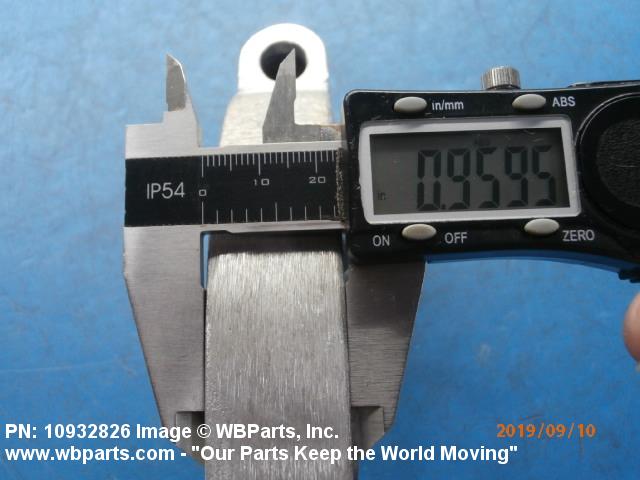

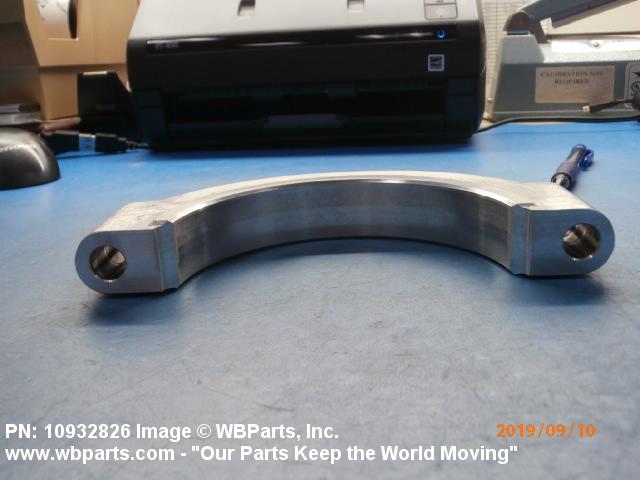

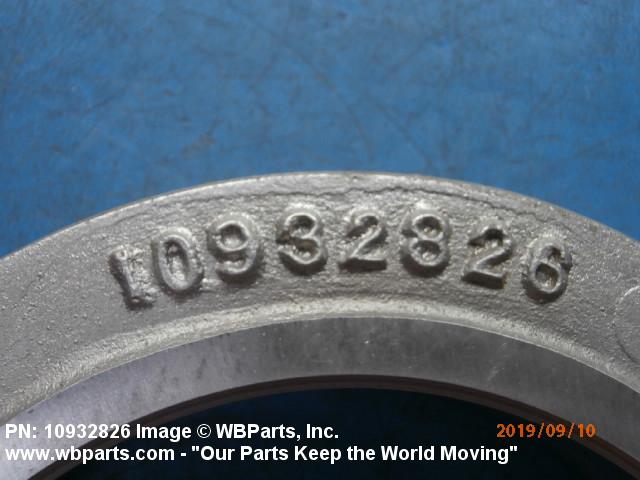

Drawings & Photos | NSN 5342-00-572-8727
Demand History | NSN 5342-00-572-8727
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5342-00-572-8727 | 2019-08-218 | 13 | United States |
| 5342-00-572-8727 | 2018-07-197 | 10 | DIBBS |
| 5342-00-572-8727 | 2018-05-143 | 15 | DIBBS |
| 5342-00-572-8727 | 2018-05-135 | 15 | DIBBS |
| 5342-00-572-8727 | 2018-02-44 | 5 | DIBBS |
| 5342-00-572-8727 | 2017-10-278 | 2 | DIBBS |
| 5342-00-572-8727 | 2017-08-241 | 1 | DIBBS |
| 5342-00-572-8727 | 2017-07-194 | 20 | DIBBS |
| 5342-00-572-8727 | 2017-02-40 | 1 | DIBBS |
| 5342-00-572-8727 | 2017-02-32 | 1 | DIBBS |
| 5342-00-572-8727 | 2016-12-342 | 4 | DIBBS |
| 5342-00-572-8727 | 2016-11-320 | 10 | DIBBS |
| 5342-00-572-8727 | 2016-11-312 | 4 | DIBBS |
| 5342-00-572-8727 | 2016-11-312 | 10 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5342-00-572-8727
Related Products | NSN 5342-00-572-8727
Technical Data | NSN 5342-00-572-8727
| Characteristic | Specifications |
|---|---|
| GENERAL CHARACTERISTICS ITEM DESCRIPTION | ALUMINUM FED QQ-A-596 COMP 356 CLASS 8 COND T6,7.563 IN. O/A LONG,1.057 IN. MIN 1.067 IN. MAX O/A WIDE,1.750 IN. BASE THICKNESS,0.497 IN. MIN 0.515 IN. MAX MTG HOLE SIZE,6.625 IN. DISTANCE BETWEEN MTG HOLE CENTERS,4.812 IN. MIN 4.817 IN. MAX INSIDE DIA ARCH LG,2.406 IN. DISTANCE BETWEEN BASE AND INSIDE OF ARCH |
| III FSC APPLICATION DATA | ENGINE MOUNTING,DIESEL |
| MANUFACTURERS CODE | 19207 |
| DESIGN CONTROL REFERENCE | 10932826 |
Restrictions/Controls & Freight Information | NSN 5342-00-572-8727
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 197337 | WHEELS COG/GEAR/PINION/SPROCK |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5342-00-572-8727
Marines| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
