NSN 5342-00-591-4221 G68872, 00-591-4221, 005914221
Product Details | CORROSION PREVENTIVE ANODE
5342-00-591-4221 An item which sacrificially corrodes when coupled to a more noble metal in a conducting medium.20253400020Hardware, Commercial53420023Hardware, Weapon System
Part Alternates: G68872, 5342-00-591-4221, 00-591-4221, 5342005914221, 005914221
Hardware and Abrasives | Hardware, Weapon System
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 03 JAN 1975 | 00-591-4221 | 13154 ( ANODE, CORROSION PREVENTIVE ) |
Drawings & Photos | NSN 5342-00-591-4221
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5342-00-591-4221
Technical Data | NSN 5342-00-591-4221
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | ZINC MIL-A-18001 O/A |
| THREAD SIZE AND SERIES/TYPE DESIGNATOR | 0.375-11 NPT |
| THREAD DIRECTION | RIGHT-HAND |

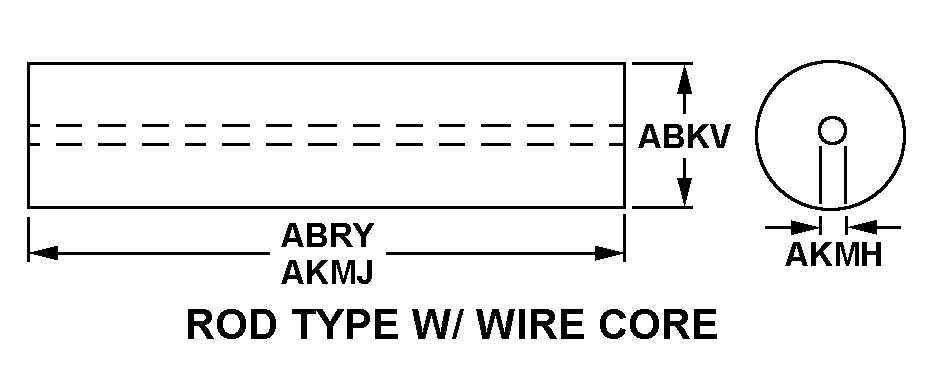

| STYLE DESIGNATOR | 34 ROD TYPE WITH WIRE CORE |
| OUTSIDE DIAMETER | 0.750 INCHES NOMINAL |
| LENGTH | 4.500 INCHES NOMINAL |
| CORE DIAMETER | 0.670 INCHES MINIMUM AND 0.680 INCHES MAXIMUM |
| CORE LENGTH | 4.500 INCHES NOMINAL |
| MOUNTING METHOD | THREADED END |
| CONSTRUCTION | SECTIONALIZED |
| WEIGHT | NOT RATED |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | AS DIFFERENTIATED BY REQUIREMENT THAT ITEM BE FREE FROM MERCURY CONTAMINATION |
| MANUFACTURERS CODE | 1MME1 |
| DESIGN CONTROL REFERENCE | G68872 |
Restrictions/Controls & Freight Information | NSN 5342-00-591-4221
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 200500 | ZINC:ANODES |
| Less than car load rating | ||
| Less than truck load rating | T | 55.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5342-00-591-4221
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
