NSN 5342-00-597-6691 00-597-6691, 005976691
Product Details | WEAPON SYSTEM RESILIENT MOUNT
5342-00-597-6691 An item made of material having elastic properties. It may have rigid mounting facilities such as a flange(s), sleeve(s), stud(s) or the like. It is designed to isolate or dampen shock and/or vibration of a continuous or intermittent origin and serve as a support for a weapon system component to be isolated. Excludes MOUNT, RESILIENT, UTILITY; SPRING (as modified); BUMPER, NONMETALLIC; BUMPER, RUBBER; BUSHING, NONMETALLIC; hydraulic and pneumatic shock absorbers, dash-pots, grommets, and shock pads.
Part Alternates: 5342-00-597-6691, 00-597-6691, 5342005976691, 005976691
Hardware and Abrasives | Hardware, Weapon System
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 00-597-6691 | 53589 ( MOUNT, RESILIENT, WEAPON SYSTEM ) |

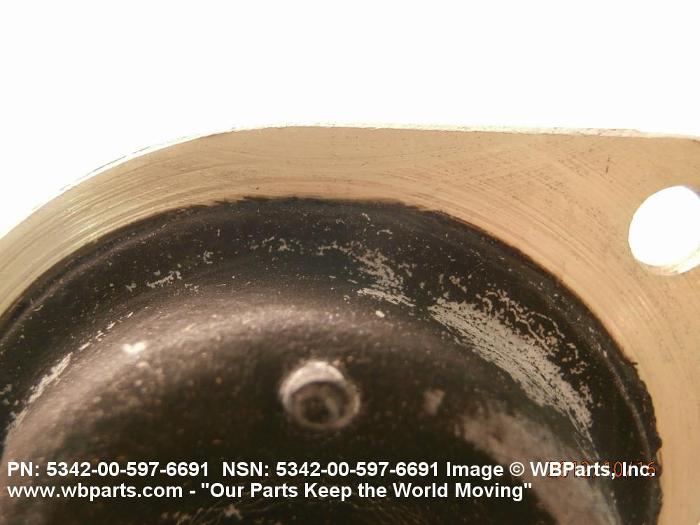

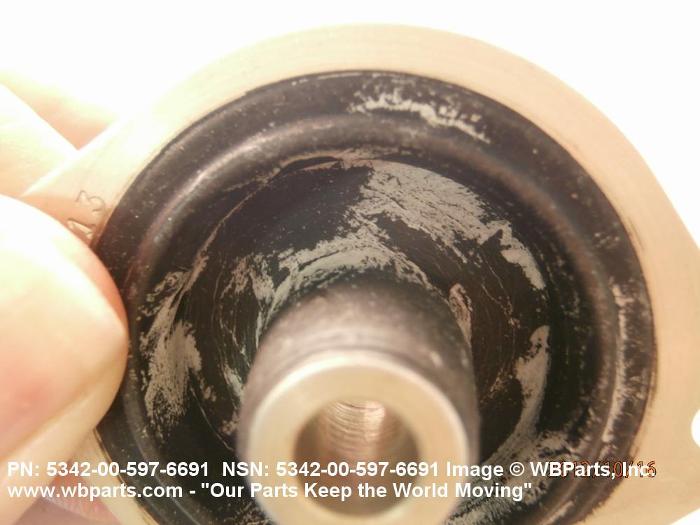

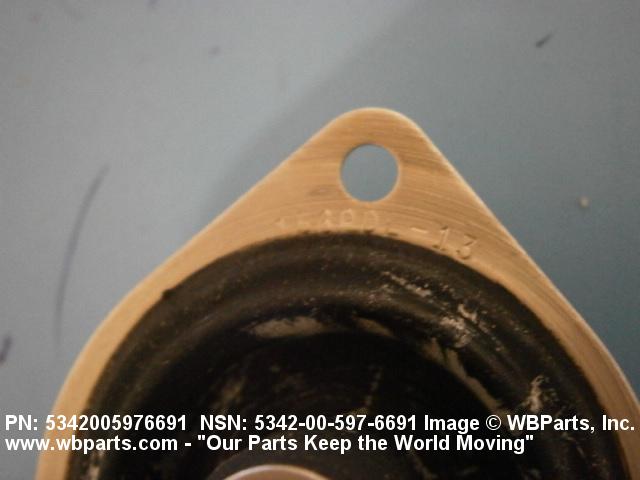

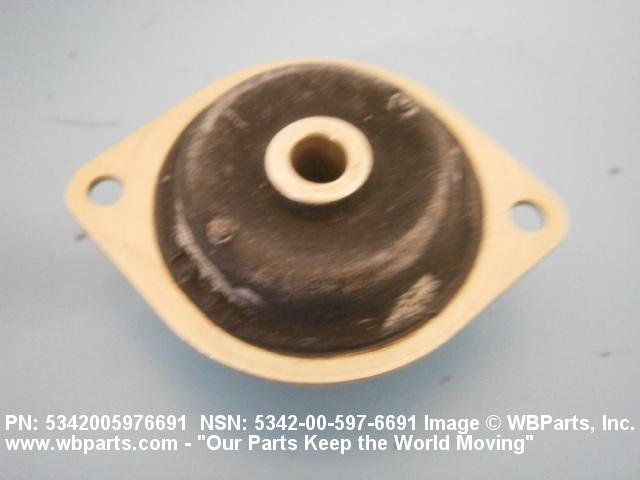

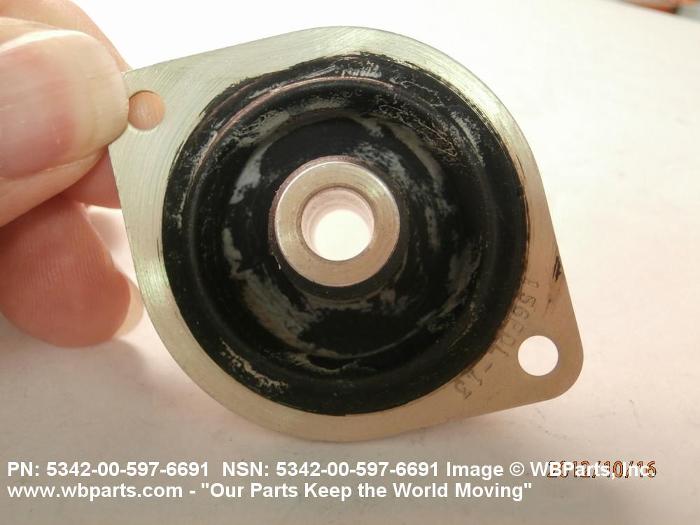

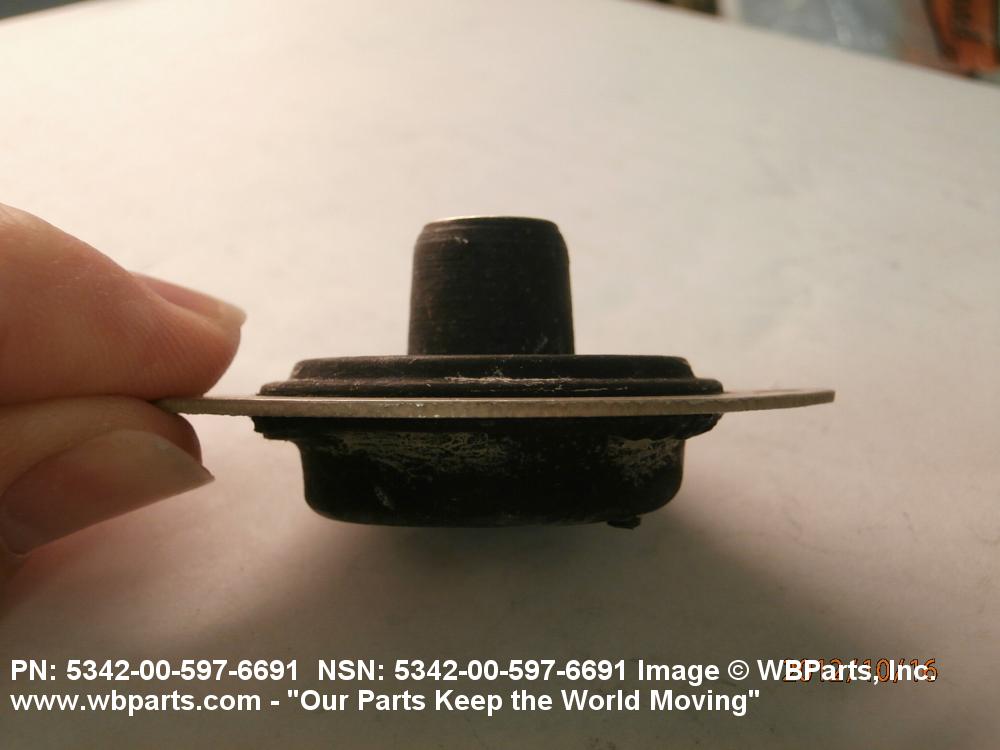

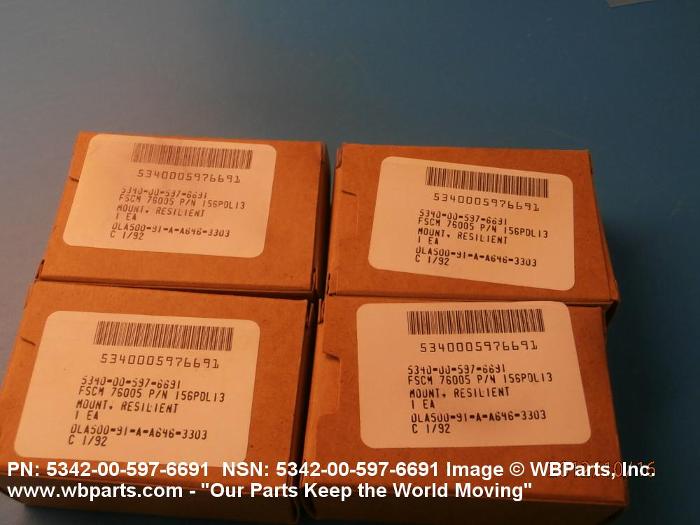

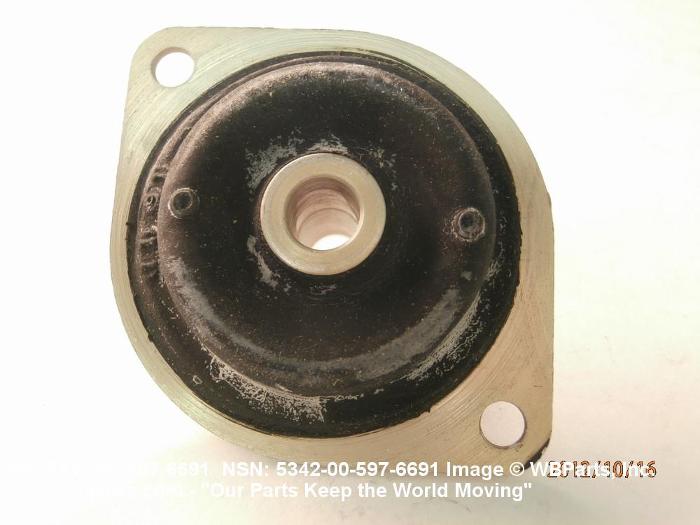

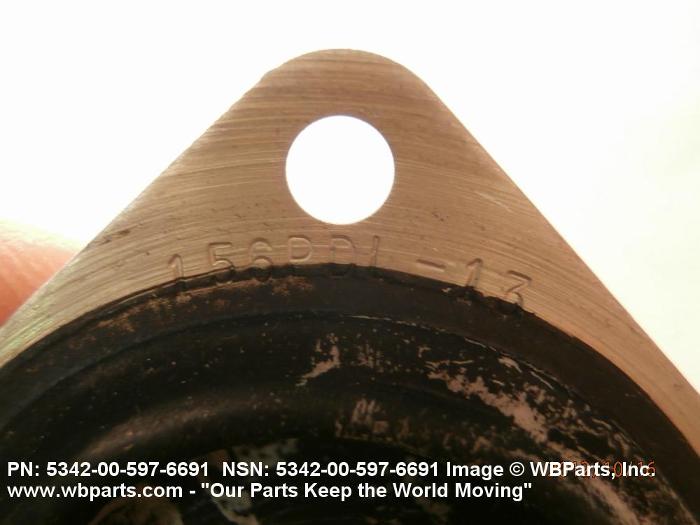

Drawings & Photos | NSN 5342-00-597-6691
Demand History | NSN 5342-00-597-6691
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5342-00-597-6691 | 2012-10-284 | 4 | United States |
| 5342-00-597-6691 | 2012-05-129 | 4 | United States |
| 5342-00-597-6691 | 2012-02-54 | 12 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5342-00-597-6691
Technical Data | NSN 5342-00-597-6691
| Characteristic | Specifications |
|---|---|
| RESILIENT MEMBER MATERIAL | RUBBER |
| NONMETALLIC HARDNESS RATING | NOT RATED |
| RIGID MEMBER MATERIAL AND LOCATION | ALUMINUM OVERALL |
| RIGID MEMBER SURFACE TREATMENT AND LOCATION | ANODIZED OVERALL |
| STYLE DESIGNATOR | C36 ROUND W/BUSHING TWO-HOLE FLANGE |
| INSIDE DIAMETER | 0.257 INCHES NOMINAL |
| FLANGE THICKNESS | 0.050 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING HOLE CENTERS | 1.940 INCHES NOMINAL |
| FLANGE LENGTH | 2.320 INCHES NOMINAL |
| FLANGE WIDTH | 1.760 INCHES NOMINAL |
| DISTANCE FROM FLANGE TO END | 0.550 INCHES NOMINAL |
| FLANGE MOUNTING HOLE DIAMETER | 0.166 INCHES NOMINAL |
| HEIGHT | 0.969 INCHES NOMINAL |
| STATIC LOAD RATING AT SPECIFIED DEFLECTION | 13 LB LOAD RATING AT 3/16 IN. DEFLECTION |
| MAXIMUM LOAD RATING | NOT RATED |
| MANUFACTURERS CODE | 76005 |
| DESIGN CONTROL REFERENCE | 156PDL13 |
Restrictions/Controls & Freight Information | NSN 5342-00-597-6691
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
