NSN 5342-00-887-8139 55C22150, 00-887-8139, 008878139
Product Details | THREADED END TENSIONING TIE ROD

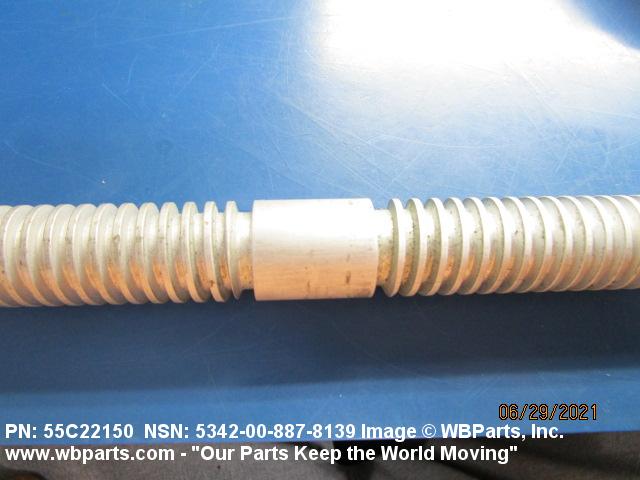

5342-00-887-8139 A rod having various cross-sectional shaped bodies with one right hand and one left hand integral externally threaded end. See also TURNBUCKLE; TURNBUCKLE BODY; and ROD, THREADED END.
Part Alternates: 55C22150, 5342-00-887-8139, 00-887-8139, 5342008878139, 008878139
Hardware and Abrasives | Hardware, Weapon System
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-887-8139 | 20759 ( TIE ROD, TENSIONING, THREADED END ) |

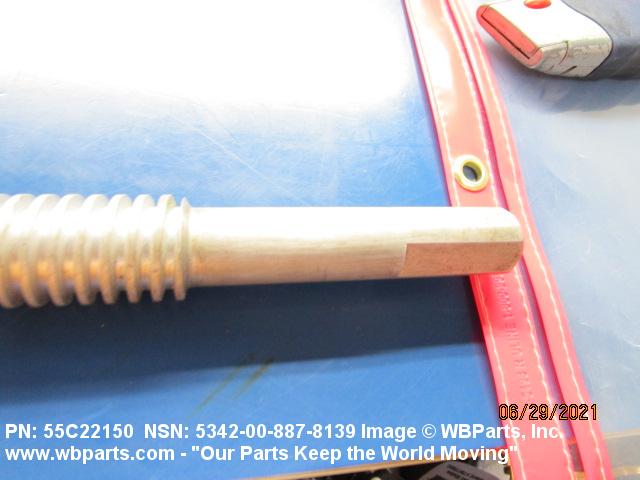

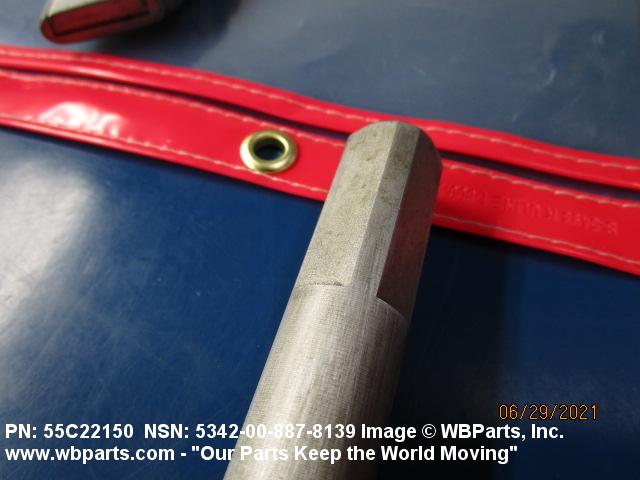

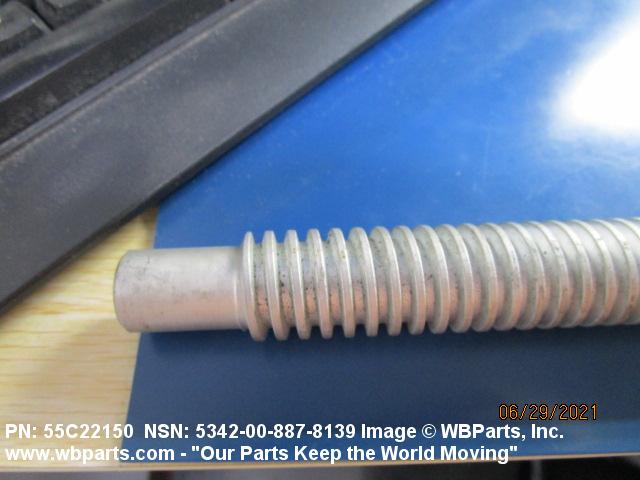

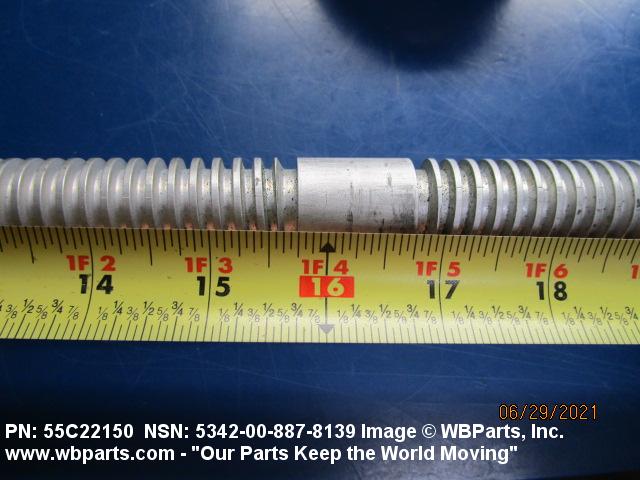

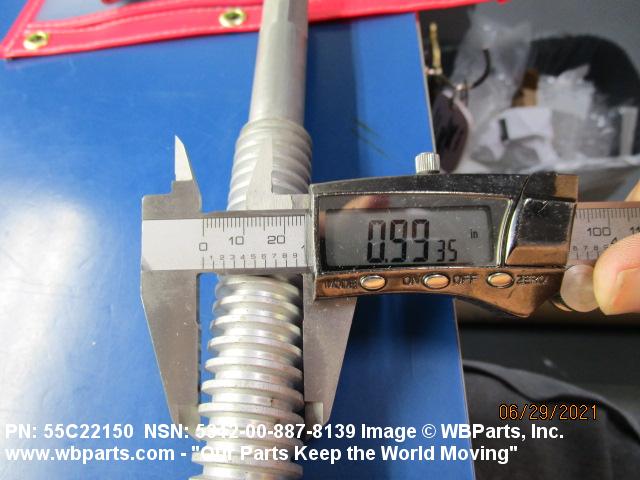

Drawings & Photos | NSN 5342-00-887-8139
Demand History | NSN 5342-00-887-8139
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5342-00-887-8139 | 2025-11-331 | 10 | SG |
| 5342-00-887-8139 | 2023-11-318 | 52 | us |
| 5342-00-887-8139 | 2023-01-16 | 11 | DIBBS |
| 5342-00-887-8139 | 2022-10-289 | 4 | DIBBS |
| 5342-00-887-8139 | 2022-07-185 | 27 | DIBBS |
| 5342-00-887-8139 | 2022-02-48 | 15 | DIBBS |
| 5342-00-887-8139 | 2021-07-189 | 14 | DIBBS |
| 5342-00-887-8139 | 2021-04-106 | 1 | Indonesia |
| 5342-00-887-8139 | 2021-03-64 | 1 | Indonesia |
| 5342-00-887-8139 | 2018-06-156 | 112 | DIBBS |
| 5342-00-887-8139 | 2017-02-32 | 1 | DIBBS-RFPs |
| 5342-00-887-8139 | 2016-07-210 | 2 | Taiwan |
| 5342-00-887-8139 | 2016-03-81 | 6 | MANUAL |
| 55C22150 | 2016-03-81 | 6 | United States |
| 5342-00-887-8139 | 2016-03-73 | 90 | DIBBS |
| 5342-00-887-8139 | 2015-10-293 | 100 | DIBBS |
| 5342-00-887-8139 | 2014-02-33 | 250 | DIBBS |
| 5342-00-887-8139 | 2013-06-175 | 70 | DIBBS |
| 5342-00-887-8139 | 2013-06-167 | 70 | DIBBS |
| 5342-00-887-8139 | 2012-01-09 | 86 | DIBBS |
| 5342-00-887-8139 | 2011-06-154 | 67 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5342-00-887-8139
Related Products | NSN 5342-00-887-8139
Technical Data | NSN 5342-00-887-8139
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1212 OR STEEL OR STEEL COMP 1025 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-637,COMP 1112 FED SPEC 1ST MATERIAL RESPONSE OR QQ-S-637,COMP 1113 FED SPEC 2ND MATERIAL RESPONSE OR ASTM A108 ASSN STD 3RD MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE 1,CLASS 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |

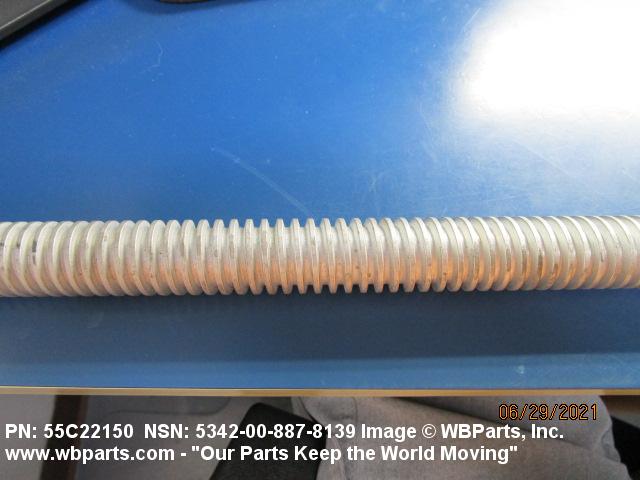

| THREAD SERIES DESIGNATOR | ACME ROD CONNECTION |
| NOMINAL THREAD SIZE | 1.000 INCHES ROD CONNECTION |
| THREAD CLASS | 2G OVERALL |

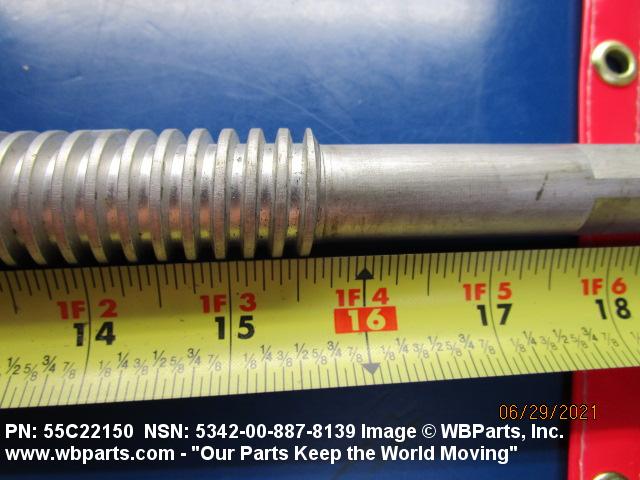

| THREAD LENGTH | 15.719 INCHES NOMINAL AND 15.719 INCHES NOMINAL ROD CONNECTION |
| STYLE DESIGNATOR | 151 ROUND |
| BODY DIAMETER | 1.000 INCHES NOMINAL |

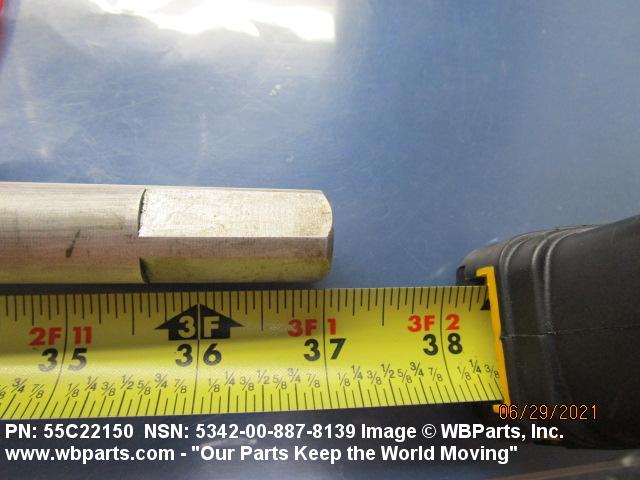

| OVERALL LENGTH | 37.000 INCHES NOMINAL |

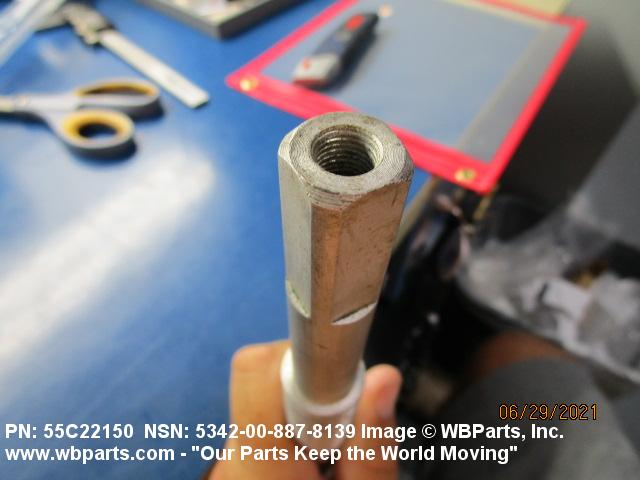

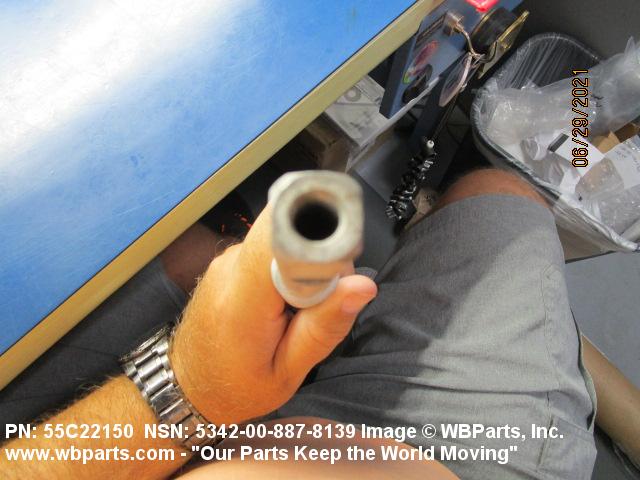

| SPECIAL FEATURES | TAPPED HOLE 0.375-24 UNF 2B |
| MANUFACTURERS CODE | 98750 |
| DESIGN CONTROL REFERENCE | 55C22150 |
Restrictions/Controls & Freight Information | NSN 5342-00-887-8139
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 107340 | TURNBUCKLES/SLEEVE NUTS NOI I/S |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
