NSN 5342-01-020-5589 MILM17508, MIL-M-17508, 7E450BB
Product Details | WEAPON SYSTEM RESILIENT MOUNT
5342-01-020-5589 An item made of material having elastic properties. It may have rigid mounting facilities such as a flange(s), sleeve(s), stud(s) or the like. It is designed to isolate or dampen shock and/or vibration of a continuous or intermittent origin and serve as a support for a weapon system component to be isolated. Excludes MOUNT, RESILIENT, UTILITY; SPRING (as modified); BUMPER, NONMETALLIC; BUMPER, RUBBER; BUSHING, NONMETALLIC; hydraulic and pneumatic shock absorbers, dash-pots, grommets, and shock pads.
Part Alternates: MILM17508, MIL-M-17508, 7E450BB, 7E450BBEES, 1385778, 1740710, 21635783A, 216357-83A, 311152, 31115-2, 5000S1112F1385778TYPE7E450BB, 5000-S1112-F-1385778TYPE7E450BB, 5342-01-020-5589, 01-020-5589, 5342010205589, 010205589
Hardware and Abrasives | Hardware, Weapon System
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 30 APR 1976 | 01-020-5589 | 53589 ( MOUNT, RESILIENT, WEAPON SYSTEM ) |

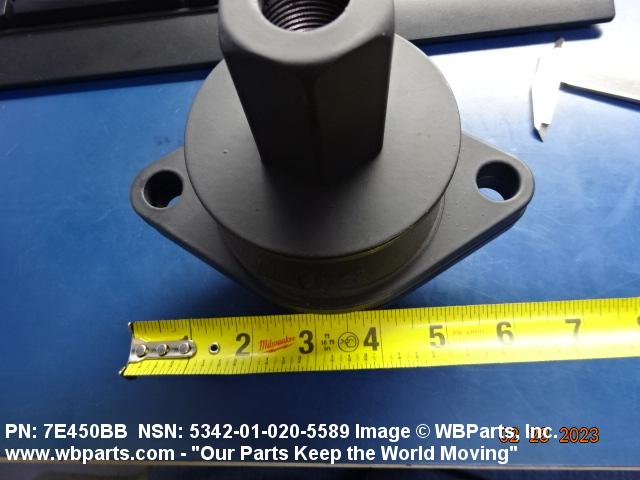

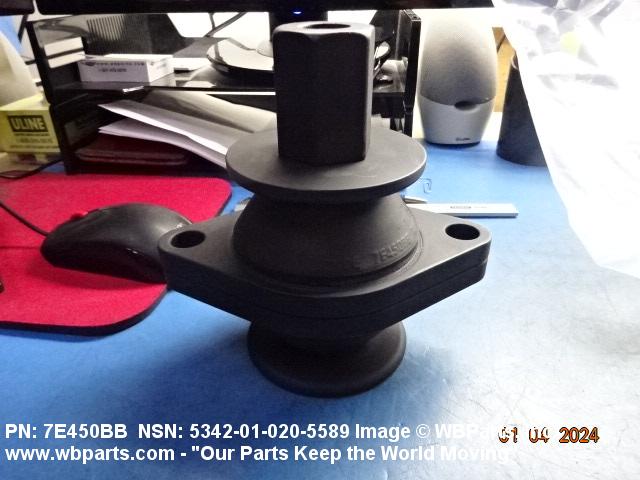

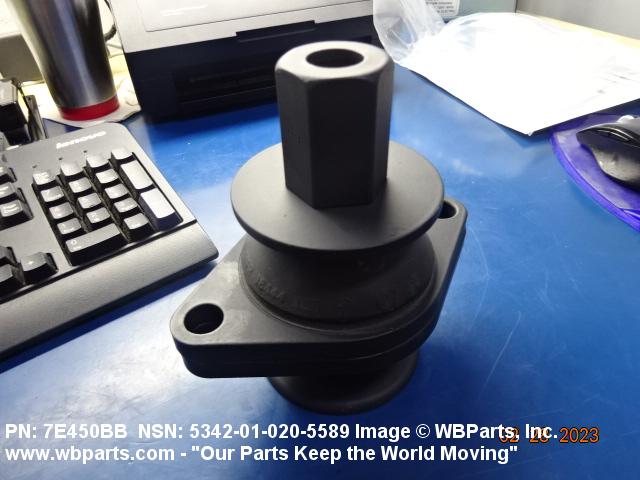

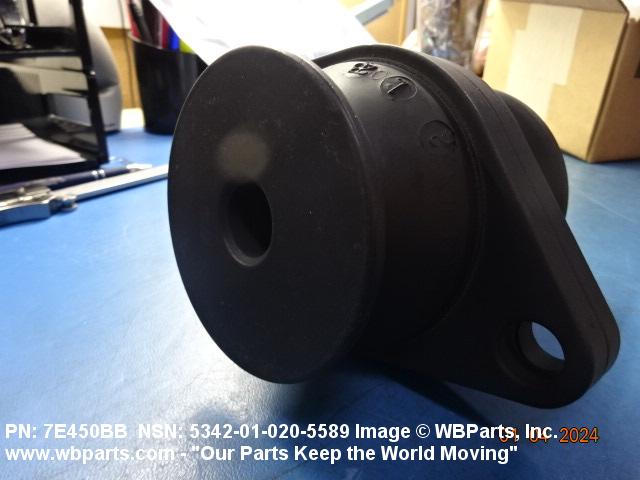

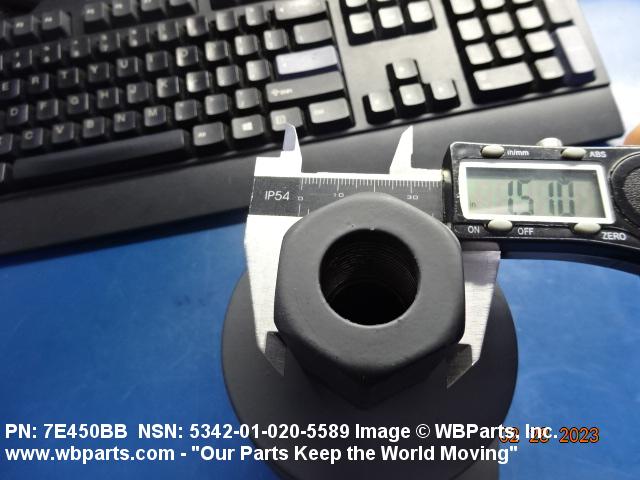

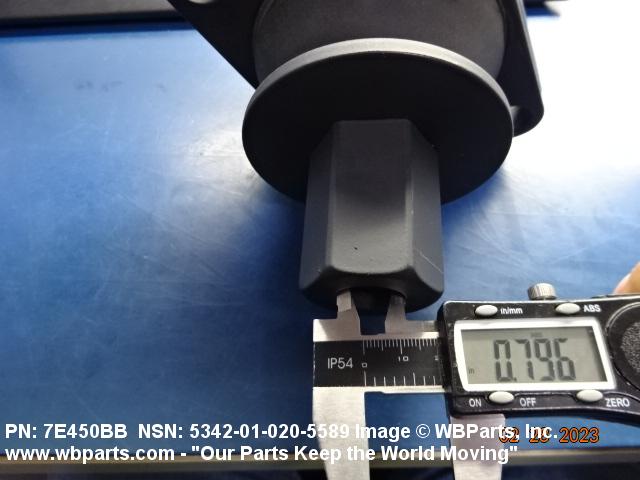

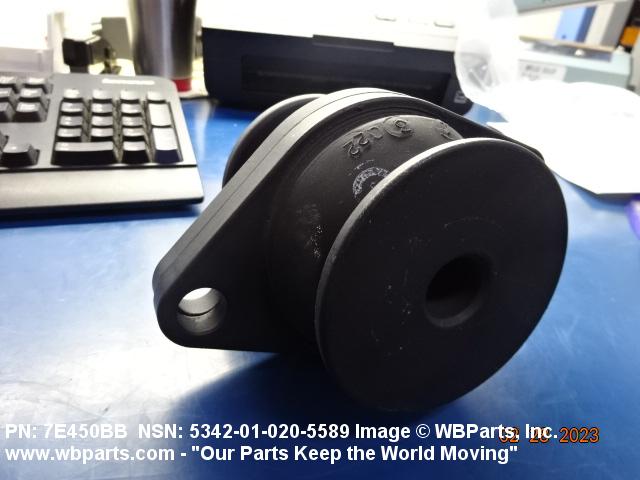

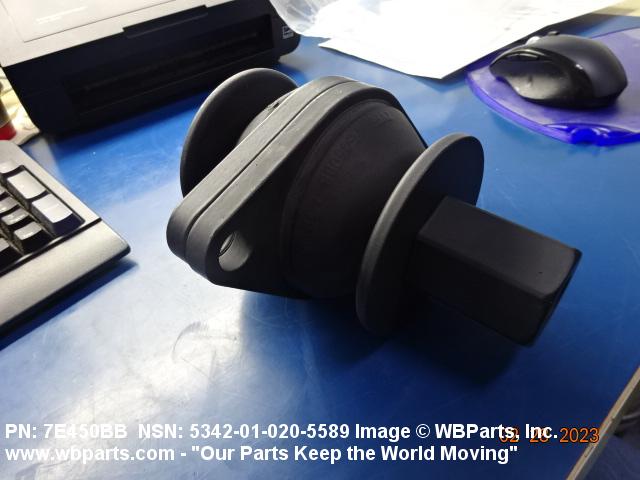

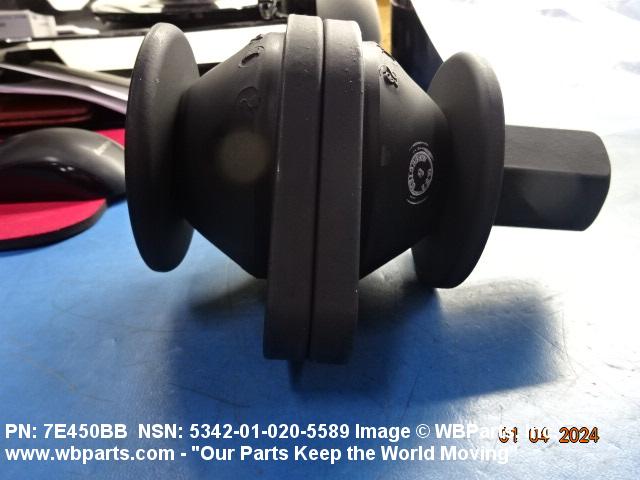

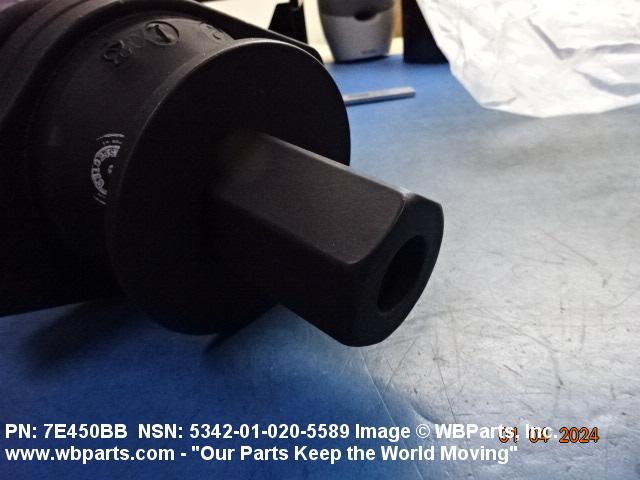

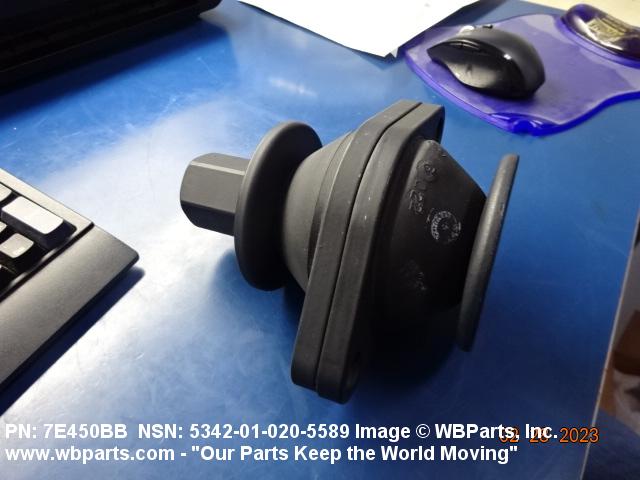

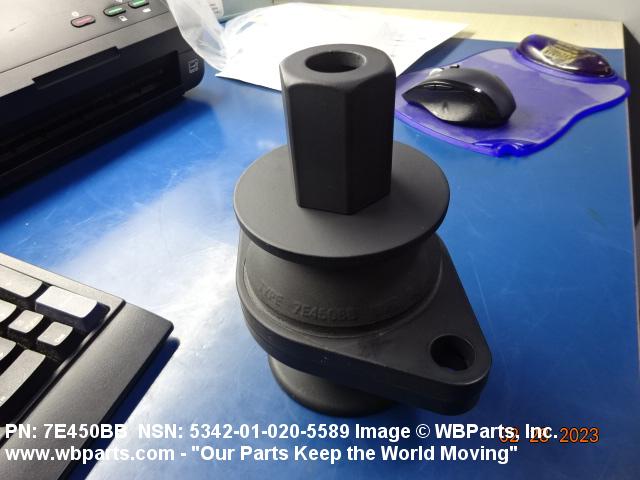

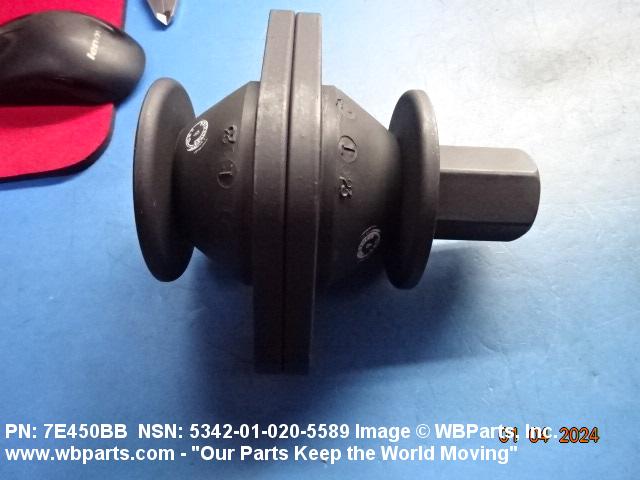

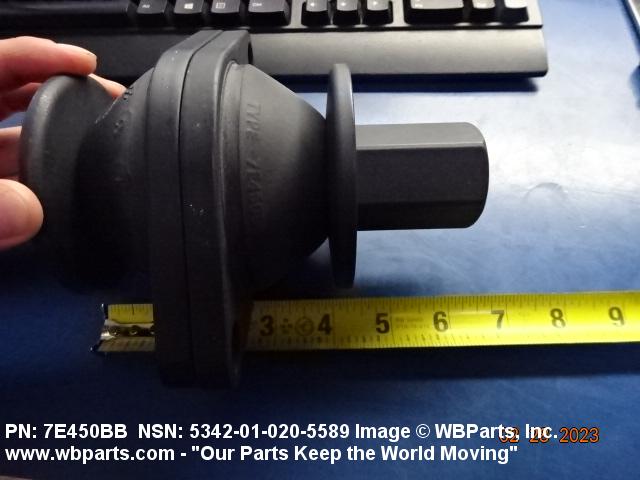

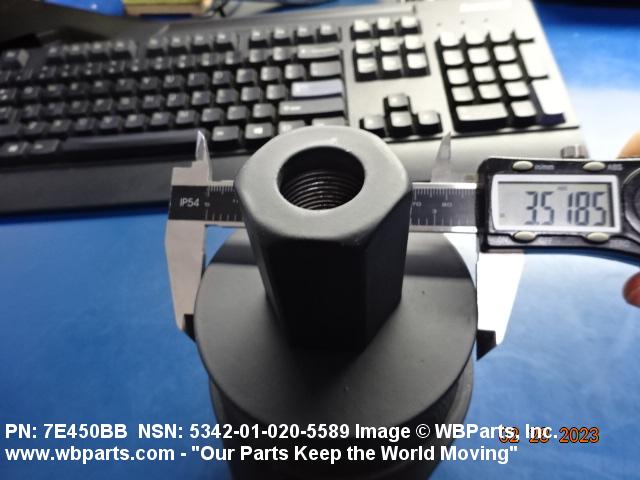

Drawings & Photos | NSN 5342-01-020-5589
Demand History | NSN 5342-01-020-5589
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 7E450BB | 2025-09-269 | 4 | us |
| 7E450BB | 2025-09-259 | 4 | us |
| 7E450BB | 2025-09-251 | 4 | us |
| 5342-01-020-5589 | 2025-08-233 | 4 | US |
| 5342-01-020-5589 | 2025-08-231 | 4 | us |
| 5342-01-020-5589 | 2025-06-162 | 2 | United States |
| 5342-01-020-5589 | 2024-12-345 | 12 | United States |
| 7E450BB | 2024-04-110 | 2 | US |
| 7E450BB | 2024-04-109 | 7 | US |
| 5342-01-020-5589 | 2023-12-338 | 18 | United States |
| 5342-01-020-5589 | 2023-01-23 | 15 | United States |
| 5342-01-020-5589 | 2022-12-354 | 29 | United States |
| 5342-01-020-5589 | 2022-10-292 | 1 | US |
| 5342-01-020-5589 | 2022-09-255 | 4 | United States |
| 5342-01-020-5589 | 2022-07-193 | 130 | DIBBS |
| MILM17508 | 2022-05-151 | 4 | US |
| 5342-01-020-5589 | 2022-05-123 | 71 | DIBBS |
| 5342-01-020-5589 | 2022-03-75 | 353 | DIBBS |
| 5342-01-020-5589 | 2021-11-323 | 1 | United States |
| 5342-01-020-5589 | 2021-10-291 | 133 | DIBBS |
| 5342-01-020-5589 | 2021-10-278 | 133 | DIBBS |
| 5342-01-020-5589 | 2021-09-252 | 61 | DIBBS |
| 5342-01-020-5589 | 2021-08-237 | 68 | DIBBS |
| 5342-01-020-5589 | 2021-05-144 | 217 | DIBBS |
| 5342-01-020-5589 | 2021-03-81 | 87 | DIBBS |
| 5342-01-020-5589 | 2021-03-68 | 87 | DIBBS |
| 5342-01-020-5589 | 2019-06-169 | 248 | DIBBS |
| 5342-01-020-5589 | 2018-09-260 | 242 | DIBBS |
| 5342-01-020-5589 | 2018-09-249 | 242 | DIBBS |
| 5342-01-020-5589 | 2018-05-128 | 214 | DIBBS |
| 5342-01-020-5589 | 2018-02-40 | 1 | DIBBS-RFPs |
| 5342-01-020-5589 | 2017-08-235 | 439 | DIBBS |
| 5342-01-020-5589 | 2017-05-138 | 144 | DIBBS |
| 5342-01-020-5589 | 2017-03-71 | 289 | DIBBS |
| 5342-01-020-5589 | 2017-03-60 | 171 | DIBBS |
| 5342-01-020-5589 | 2016-10-287 | 144 | DIBBS |
| 5342-01-020-5589 | 2016-07-189 | 127 | DIBBS |
| 5342-01-020-5589 | 2016-05-130 | 350 | DIBBS |
| 5342-01-020-5589 | 2016-03-87 | 142 | DIBBS |
| 5342-01-020-5589 | 2015-02-33 | 291 | DIBBS |
| 5342-01-020-5589 | 2014-12-337 | 157 | DIBBS |
| 5342-01-020-5589 | 2014-04-100 | 156 | DIBBS |
| 5342-01-020-5589 | 2014-02-49 | 170 | DIBBS |
| 5342-01-020-5589 | 2014-02-34 | 246 | DIBBS |
| 5342-01-020-5589 | 2013-11-330 | 305 | DIBBS |
| 5342-01-020-5589 | 2013-11-323 | 305 | DIBBS |
| 5342-01-020-5589 | 2010-11-312 | 192 | DIBBS |
| 5342-01-020-5589 | 2010-11-308 | 192 | DIBBS |
| 5342-01-020-5589 | 2010-10-300 | 180 | DIBBS |
| 5342-01-020-5589 | 2010-07-204 | 146 | DIBBS |
| 5342-01-020-5589 | 2010-03-75 | 74 | DIBBS |
| 5342-01-020-5589 | 2010-03-68 | 70 | DIBBS |
| 5342-01-020-5589 | 2009-11-308 | 83 | DIBBS |
| 5342-01-020-5589 | 2009-09-264 | 191 | DIBBS |
| 5342-01-020-5589 | 2009-05-125 | 100 | DIBBS |
| 5342-01-020-5589 | 2009-02-36 | 91 | DIBBS |
| 5342-01-020-5589 | 2008-06-166 | 151 | DIBBS |
| 5342-01-020-5589 | 2008-04-93 | 102 | DIBBS |
Cross Reference | NSN 5342-01-020-5589
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1385778 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 1740710 | 43689 | HUNTINGTON INGALLS INCORPORATED DIV NEWPORT NEWS |
| 216357-83A | 43689 | HUNTINGTON INGALLS INCORPORATED DIV NEWPORT NEWS |
| 31115-2 | 2J565 | HOLT COMPANY OF OHIO |
| 5000-S1112-F-1385778TYPE7E450BB | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 7E450BB | 18444 | OIL STATES INDUSTRIES, INC DBA SPECIAL PRODUCTS DIV |
| 7E450BB | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| 7E450BBEES | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-M-17508 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5342-01-020-5589
Related Products | NSN 5342-01-020-5589
Technical Data | NSN 5342-01-020-5589
| Characteristic | Specifications |
|---|---|
| RESILIENT MEMBER MATERIAL | RUBBER |
| NONMETALLIC HARDNESS RATING | 33.0 MINIMUM SHORE DUROMETER A AND 43.0 MAXIMUM SHORE DUROMETER A |
| RIGID MEMBER MATERIAL AND LOCATION | STEEL OVERALL |

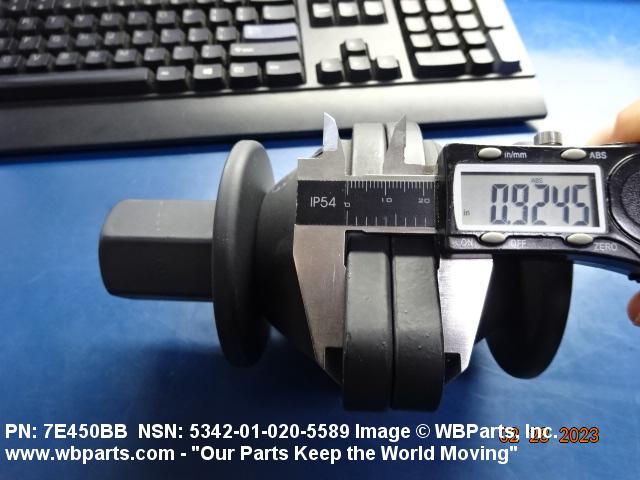

| FLANGE THICKNESS | 0.875 INCHES NOMINAL |

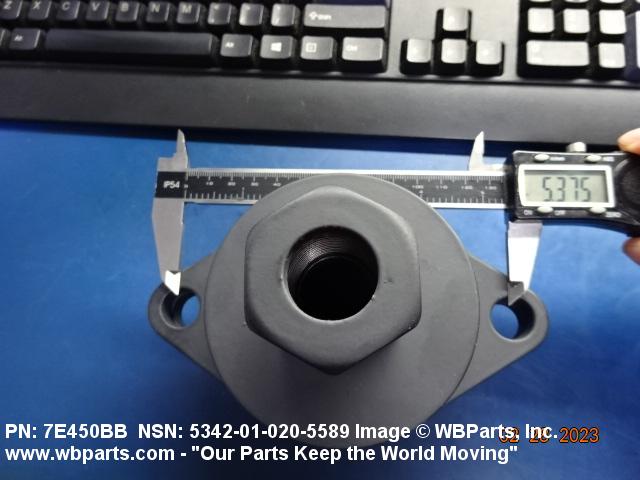

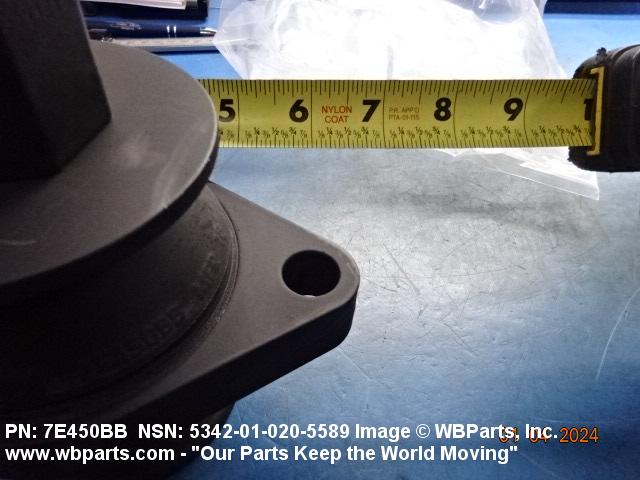

| DISTANCE BETWEEN MOUNTING HOLE CENTERS | 5.375 INCHES NOMINAL |
| FLANGE LENGTH | 6.500 INCHES NOMINAL |
| FLANGE WIDTH | 4.000 INCHES NOMINAL |
| DISTANCE FROM FLANGE TO END | 2.375 INCHES NOMINAL |

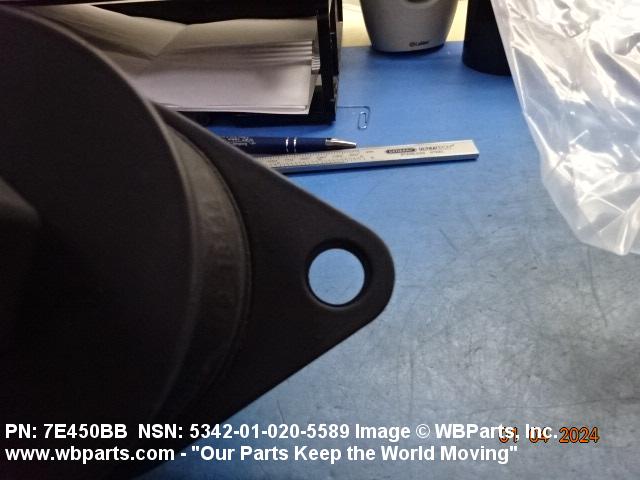

| FLANGE MOUNTING HOLE DIAMETER | 0.656 INCHES NOMINAL |
| HEIGHT | 3.875 INCHES NOMINAL |
| MAXIMUM LOAD RATING | 450.0 POUNDS |

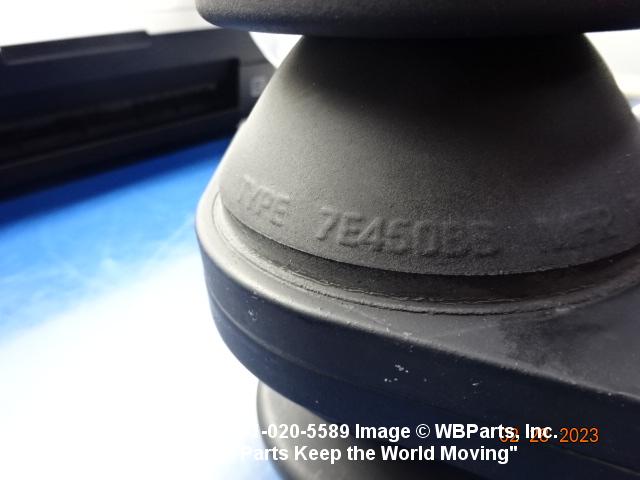

| NONDEFINITIVE SPEC/STD DATA | 7E450BB TYPE |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-M-17508 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | 7E450BB |
Restrictions/Controls & Freight Information | NSN 5342-01-020-5589
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | T | 84 months |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093600 | BRACKETS/BUSHINGS/JOINTS/MOUNTS ETC |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5342-01-020-5589
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | T | 84 months |
| Purchasing | QTY UOM |
1 EA : Each |
