NSN 5342-01-130-2879 MILSTD973, MIL-STD-973, 65217-03047-041
Product Details | HINGE ASSEMBLY
5342-01-130-2879
Part Alternates: MILSTD973, MIL-STD-973, 65217-03047-041, 5342-01-130-2879, 01-130-2879, 5342011302879, 6521703047041, 011302879
Hardware and Abrasives | Hardware, Weapon System
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 19 APR 1982 | 01-130-2879 | 77777 ( ) |

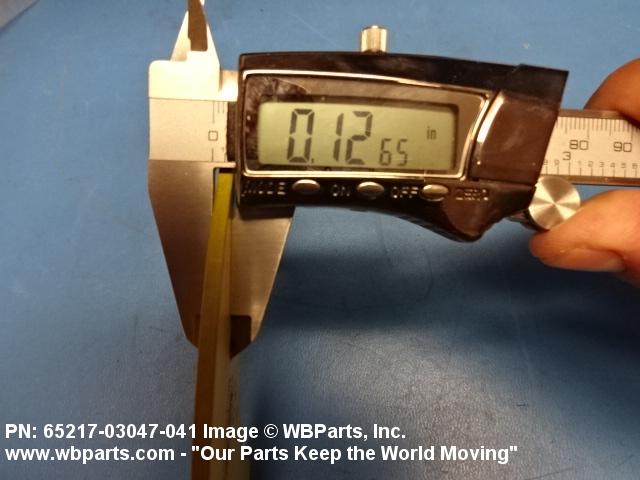

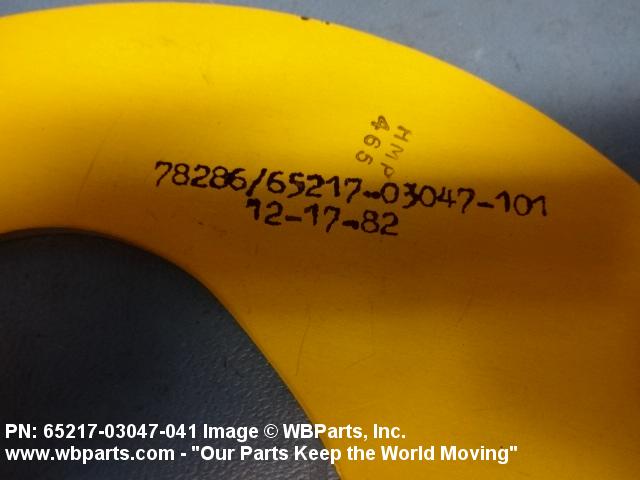

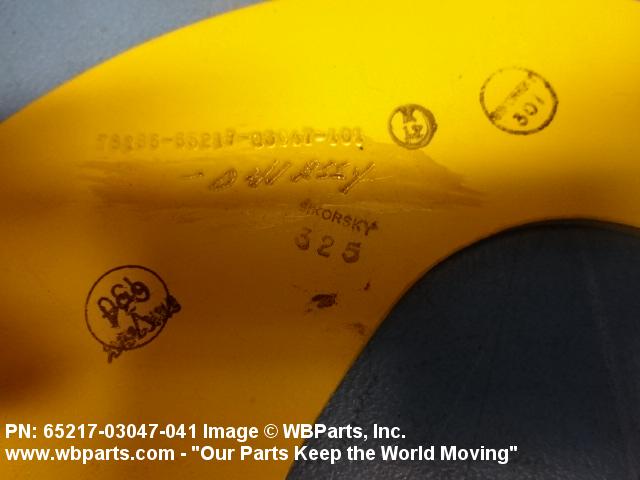

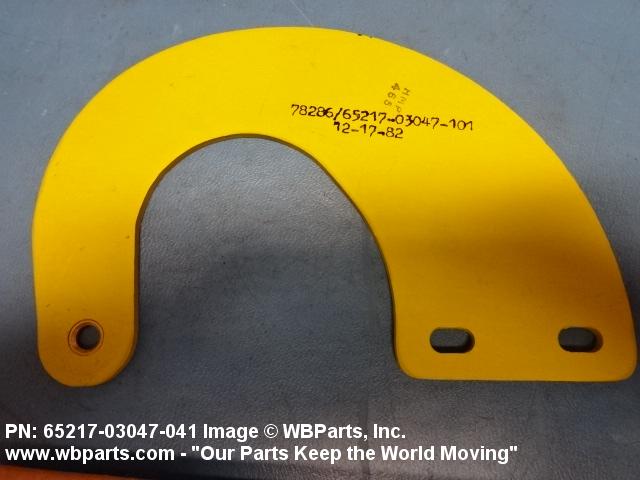

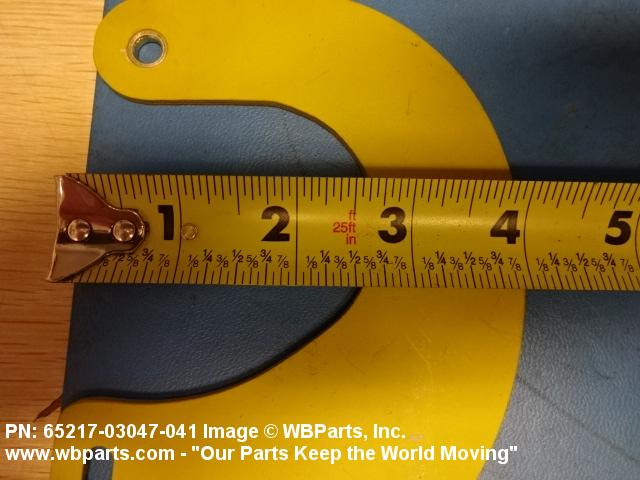

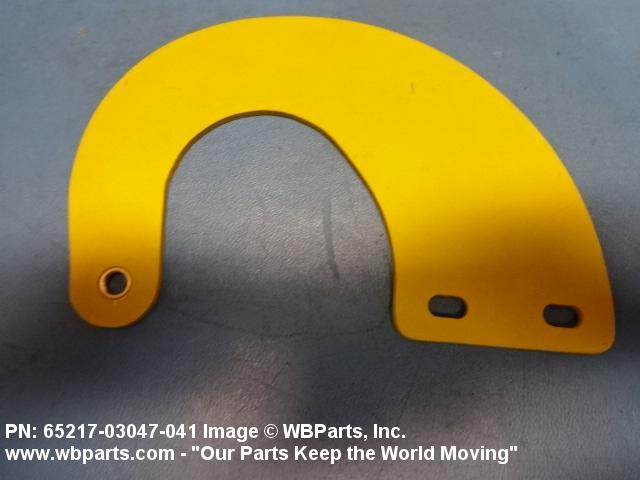

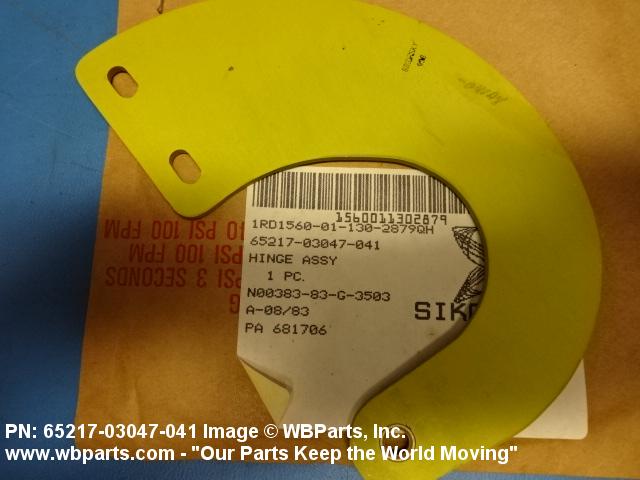

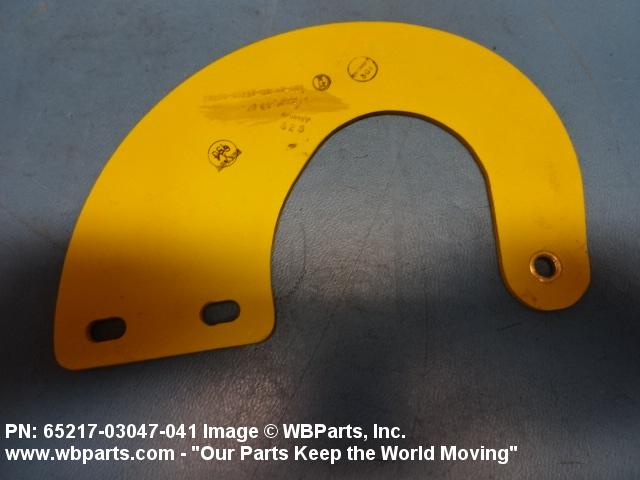

Drawings & Photos | NSN 5342-01-130-2879
Demand History | NSN 5342-01-130-2879
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5342-01-130-2879 | 2017-09-255 | 4 | DIBBS |
| 5342-01-130-2879 | 2017-08-243 | 4 | DIBBS |
| 5342-01-130-2879 | 2017-08-240 | 6 | United States |
| 5342-01-130-2879 | 2017-07-198 | 6 | DIBBS |
| 5342-01-130-2879 | 2017-07-186 | 6 | DIBBS |
| 5342-01-130-2879 | 2017-03-71 | 5 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5342-01-130-2879
Related Products | NSN 5342-01-130-2879
Technical Data | NSN 5342-01-130-2879
| Characteristic | Specifications |
|---|---|
| GENERAL CHARACTERISTICS ITEM DESCRIPTION | ALUMINUM ALLOY,7075-76,QQ-A-250 13 |
| III END ITEM IDENTIFICATION | AIRCRAFT MODEL CH-53E |
| MANUFACTURERS CODE | 78286 |
| DESIGN CONTROL REFERENCE | 65217-03047-041 |
Restrictions/Controls & Freight Information | NSN 5342-01-130-2879
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095290 | HINGES/BUTTS NOI METAL O/T I/S |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5342-01-130-2879
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 3B | Navy-owned stocks of field level repairable DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | LU | HELICOPTERS(CH-53E) |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | D | Field Level Reparables |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
