NSN 5342-01-162-6792 J11729177, J-11729-177, VBM5014127423
Product Details | WEAPON SYSTEM RESILIENT MOUNT
5342-01-162-6792 An item made of material having elastic properties. It may have rigid mounting facilities such as a flange(s), sleeve(s), stud(s) or the like. It is designed to isolate or dampen shock and/or vibration of a continuous or intermittent origin and serve as a support for a weapon system component to be isolated. Excludes MOUNT, RESILIENT, UTILITY; SPRING (as modified); BUMPER, NONMETALLIC; BUMPER, RUBBER; BUSHING, NONMETALLIC; hydraulic and pneumatic shock absorbers, dash-pots, grommets, and shock pads.
Part Alternates: J11729177, J-11729-177, VBM5014127423, VBM-5014-127423 , 12300112-1, 5342-01-162-6792, 01-162-6792, 5342011626792, 123001121, 011626792
Hardware and Abrasives | Hardware, Weapon System
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 21 SEP 1983 | 01-162-6792 | 53589 ( MOUNT, RESILIENT, WEAPON SYSTEM ) |

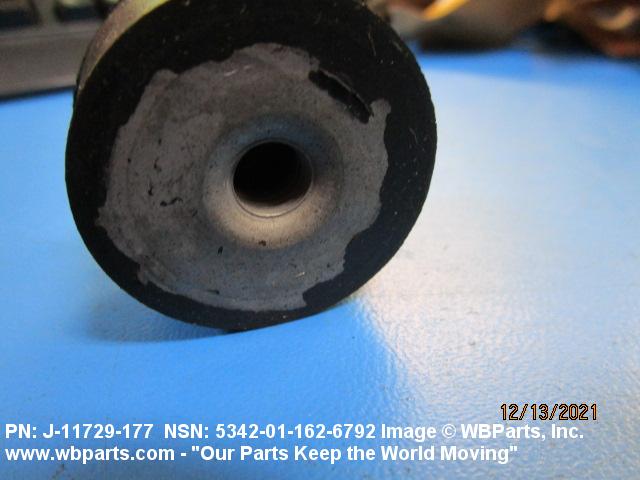

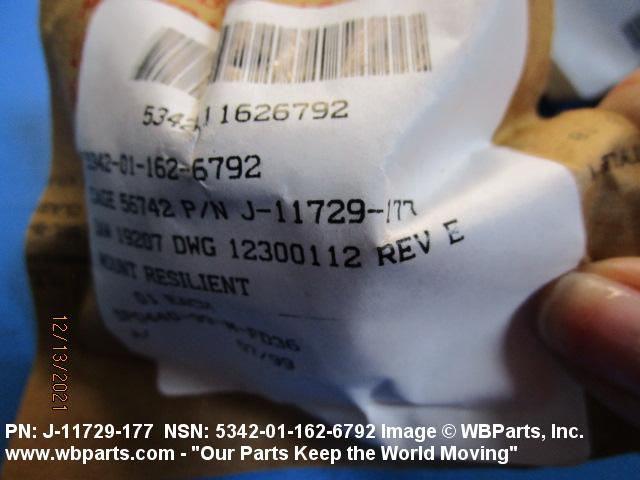

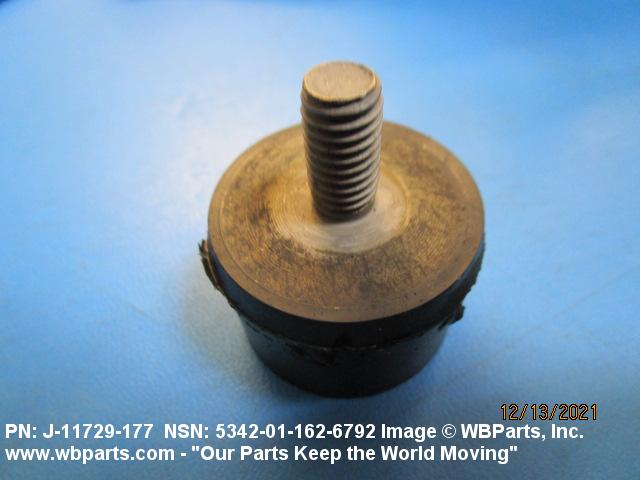

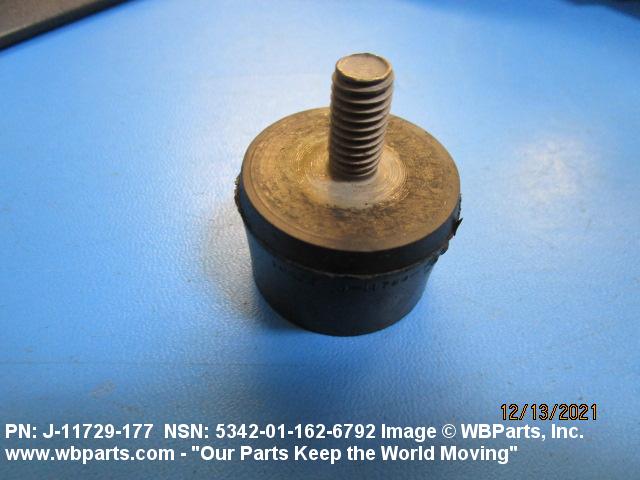

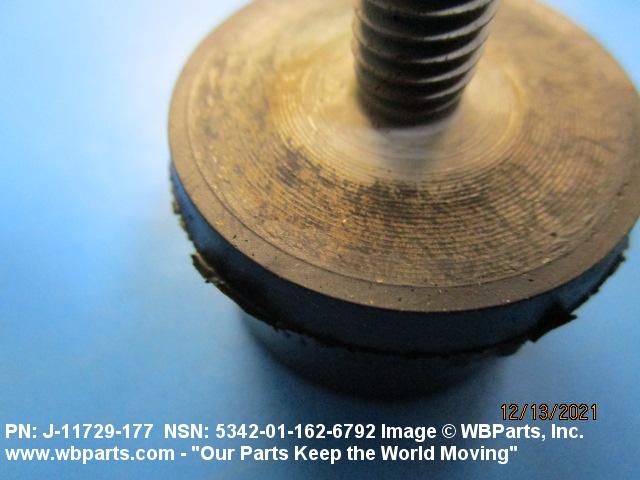

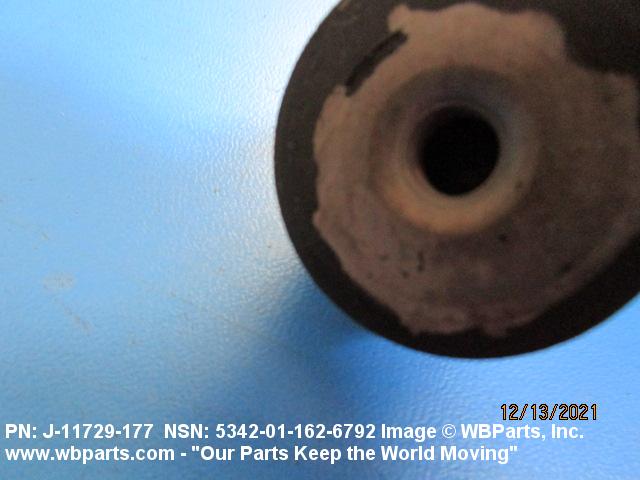

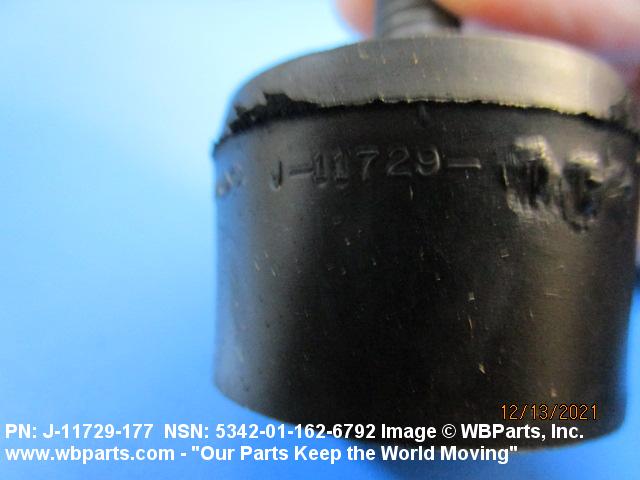

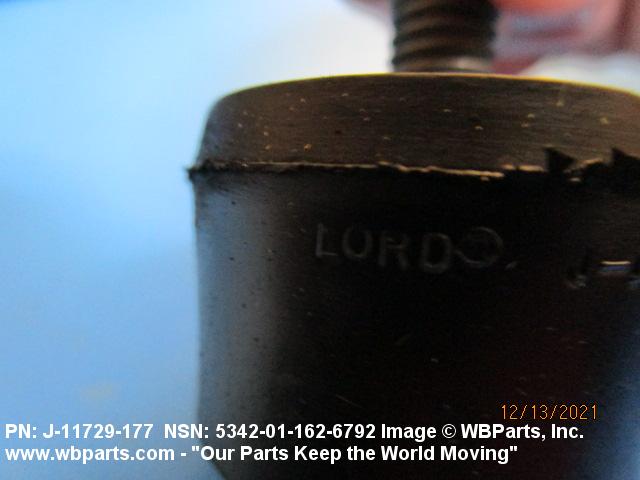

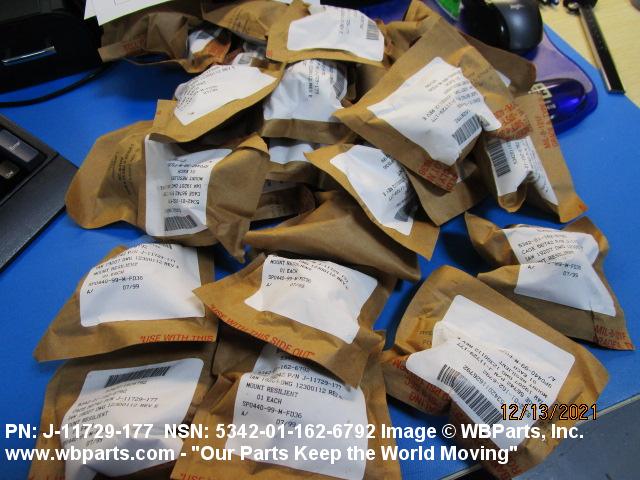

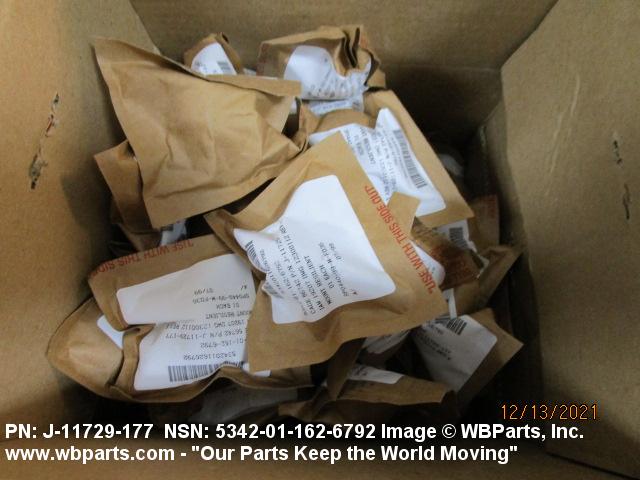

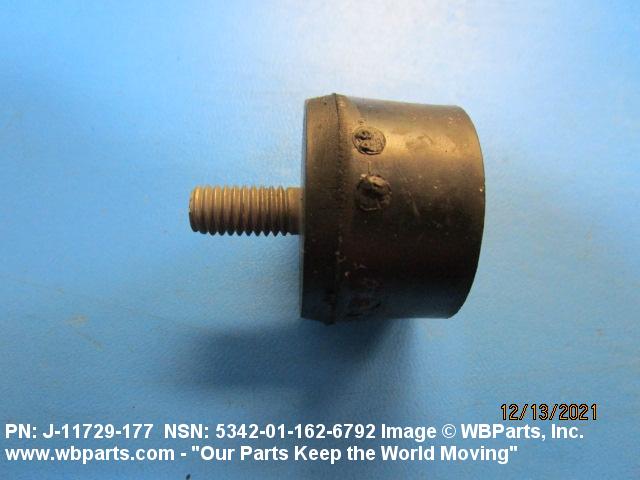

Drawings & Photos | NSN 5342-01-162-6792
Demand History | NSN 5342-01-162-6792
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| J-11729-177 | 2025-12-337 | 48 | DIBBS |
| J-11729-177 | 2025-11-329 | 48 | DIBBS |
| J-11729-177 | 2025-03-85 | 86 | DIBBS |
| J-11729-177 | 2025-03-77 | 86 | DIBBS |
| J-11729-177 | 2025-02-50 | 59 | DIBBS |
| J-11729-177 | 2025-02-42 | 59 | DIBBS |
| J-11729-177 | 2024-10-305 | 64 | DIBBS |
| J-11729-177 | 2024-10-297 | 64 | DIBBS |
| J-11729-177 | 2022-03-75 | 148 | DIBBS |
| 5342-01-162-6792 | 2021-12-335 | 68 | United States |
| J-11729-177 | 2021-01-13 | 138 | DIBBS |
| J-11729-177 | 2021-01-03 | 138 | DIBBS |
| 5342-01-162-6792 | 2017-11-325 | 370 | DIBBS |
| 5342-01-162-6792 | 2017-11-311 | 370 | DIBBS |
| 5342-01-162-6792 | 2014-11-316 | 628 | DIBBS |
| 5342-01-162-6792 | 2014-11-308 | 628 | DIBBS |
| 5342-01-162-6792 | 2014-08-229 | 480 | DIBBS |
| 5342-01-162-6792 | 2014-07-191 | 222 | DIBBS |
| 5342-01-162-6792 | 2014-04-93 | 133 | DIBBS |
| 5342-01-162-6792 | 2014-01-13 | 45 | DIBBS |
| 5342-01-162-6792 | 2014-01-05 | 45 | DIBBS |
| VBM5014127423 | 2012-05-152 | 4 | US |
| 5342-01-162-6792 | 2008-03-88 | 81 | DIBBS |
| 5342-01-162-6792 | 2008-03-79 | 420 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5342-01-162-6792
Related Products | NSN 5342-01-162-6792
Technical Data | NSN 5342-01-162-6792
| Characteristic | Specifications |
|---|---|
| RESILIENT MEMBER MATERIAL | RUBBER, NATURAL |
| NONMETALLIC HARDNESS RATING | NOT RATED |
| RIGID MEMBER MATERIAL AND LOCATION | STEEL NUT STEEL STUD |
| STYLE DESIGNATOR | C81 STUD AND NUT |
| THREAD SIZE | 3/8-16 |
| MAJOR OUTSIDE DIAMETER | 1.500 INCHES NOMINAL |
| STUD LENGTH | 0.750 INCHES NOMINAL |
| HEIGHT | 1.750 INCHES NOMINAL |
| MAXIMUM LOAD RATING | 60.0 POUNDS |
| SPECIAL FEATURES | USED ON BRADLEY |
| MANUFACTURERS CODE | 19207 |
| MFR SOURCE CONTROLLING REFERENCE | 12300112-1 |
Restrictions/Controls & Freight Information | NSN 5342-01-162-6792
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | Q | 36 months |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 156600 | PLASTIC/RUBBER ARTICLE VIZ: |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | BF | U.S. Army Armament and Chemical Acquisition and Logistics Activity Rock Island, IL 61299-6000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5342-01-162-6792
Army
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | Q | 36 months |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | Q | 36 months |
| Purchasing | QTY UOM |
1 EA : Each |
