NSN 5342-01-266-0948 75D1310522013, 75D131052-2013, 01-266-0948
Product Details | THREADED END TENSIONING TIE ROD
5342-01-266-0948 A rod having various cross-sectional shaped bodies with one right hand and one left hand integral externally threaded end. See also TURNBUCKLE; TURNBUCKLE BODY; and ROD, THREADED END.
Part Alternates: 75D1310522013, 75D131052-2013, 5342-01-266-0948, 01-266-0948, 5342012660948, 012660948
Hardware and Abrasives | Hardware, Weapon System
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 20 OCT 1987 | 01-266-0948 | 20759 ( TIE ROD, TENSIONING, THREADED END ) |
Drawings & Photos | NSN 5342-01-266-0948
Demand History | NSN 5342-01-266-0948
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5342-01-266-0948 | 2010-08-228 | 1 | DIBBS |
Cross Reference | NSN 5342-01-266-0948
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 75D131052-2013 | 76301 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5342-01-266-0948
Related Products | NSN 5342-01-266-0948
Technical Data | NSN 5342-01-266-0948
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| THREAD SERIES DESIGNATOR | ACME ROD CONNECTION |
| NOMINAL THREAD SIZE | 0.375 INCHES ROD CONNECTION |
| THREAD CLASS | 4G OVERALL |
| THREAD LENGTH | 10.890 INCHES NOMINAL ROD CONNECTION |

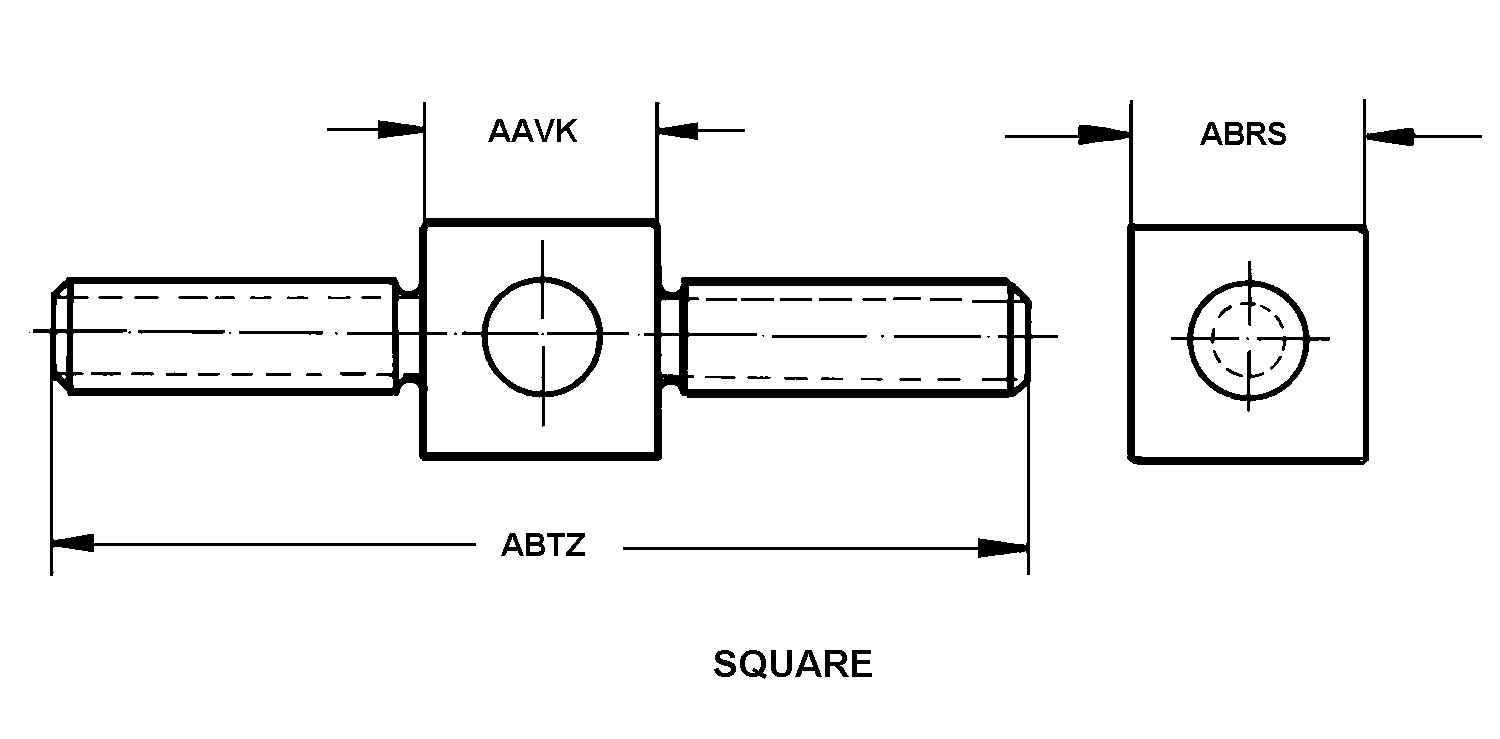

| STYLE DESIGNATOR | 154 SQUARE |
| SHOULDER LENGTH | 1.500 INCHES NOMINAL |
| OVERALL LENGTH | 22.280 INCHES NOMINAL |
| MANUFACTURERS CODE | 76301 |
| DESIGN CONTROL REFERENCE | 75D131052-2013 |
Restrictions/Controls & Freight Information | NSN 5342-01-266-0948
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 107340 | TURNBUCKLES/SLEEVE NUTS NOI I/S |
| Less than car load rating | U | 50 |
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5342-01-266-0948
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
