NSN 5342-01-277-5128 1740665, 224171, 22417-1
Product Details | WEAPON SYSTEM RESILIENT MOUNT
5342-01-277-5128 An item made of material having elastic properties. It may have rigid mounting facilities such as a flange(s), sleeve(s), stud(s) or the like. It is designed to isolate or dampen shock and/or vibration of a continuous or intermittent origin and serve as a support for a weapon system component to be isolated. Excludes MOUNT, RESILIENT, UTILITY; SPRING (as modified); BUMPER, NONMETALLIC; BUMPER, RUBBER; BUSHING, NONMETALLIC; hydraulic and pneumatic shock absorbers, dash-pots, grommets, and shock pads.
Part Alternates: 1740665, 224171, 22417-1, 6E150BB, 6E150BB/MFGFROM, 6E150BBMFGFROM, 6E150BB-SLEEVE 4.140 IN. LG, 6E150BBSLEEVE4140INLG, 845449828578, 845-4498285-78, 5342-01-277-5128, 01-277-5128, 5342012775128, 012775128
Hardware and Abrasives | Hardware, Weapon System
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 22 APR 1988 | 01-277-5128 | 53589 ( MOUNT, RESILIENT, WEAPON SYSTEM ) |

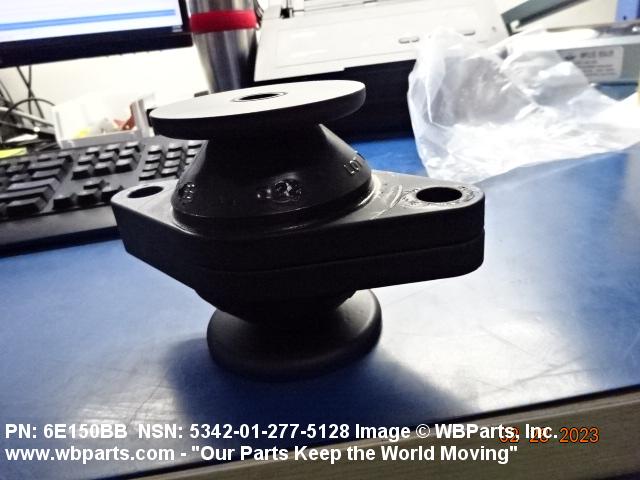

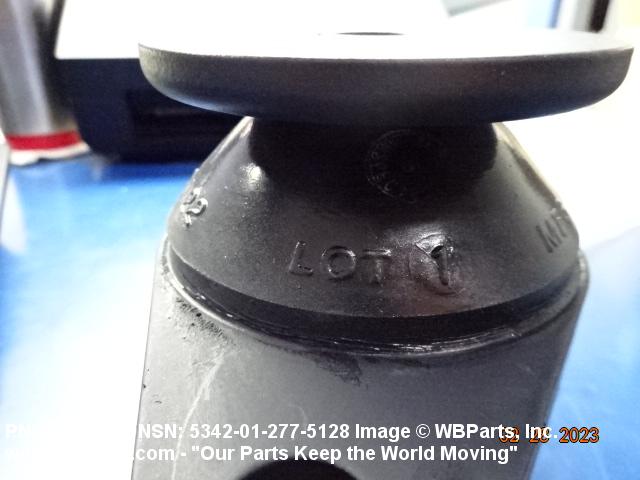

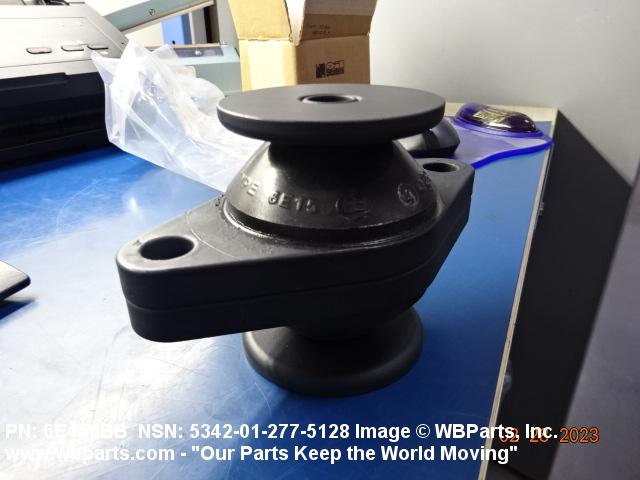

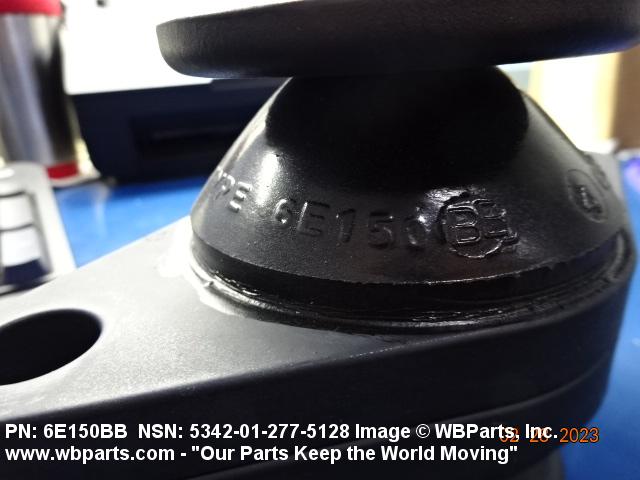

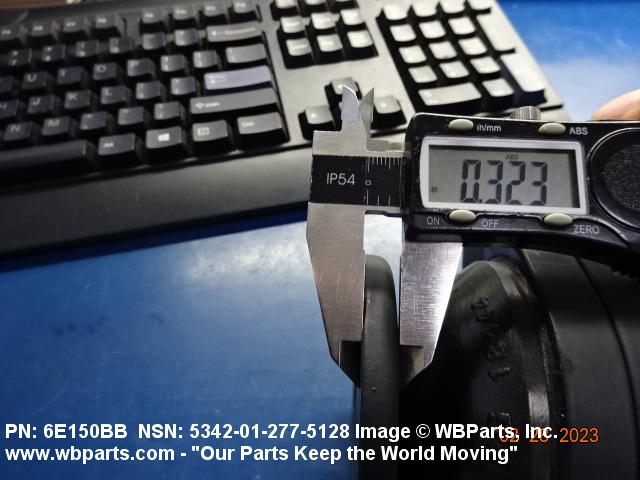

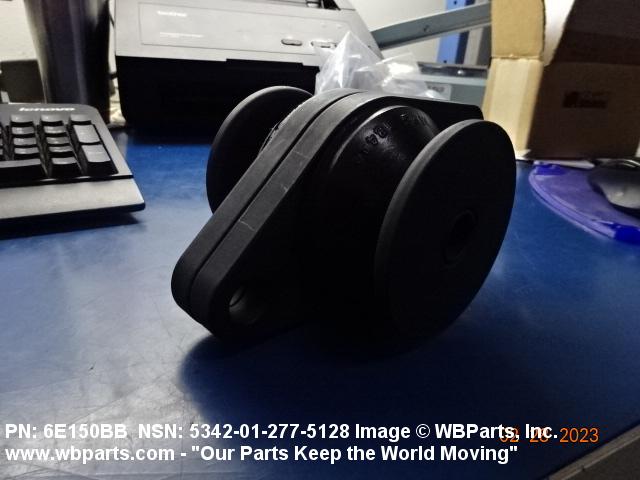

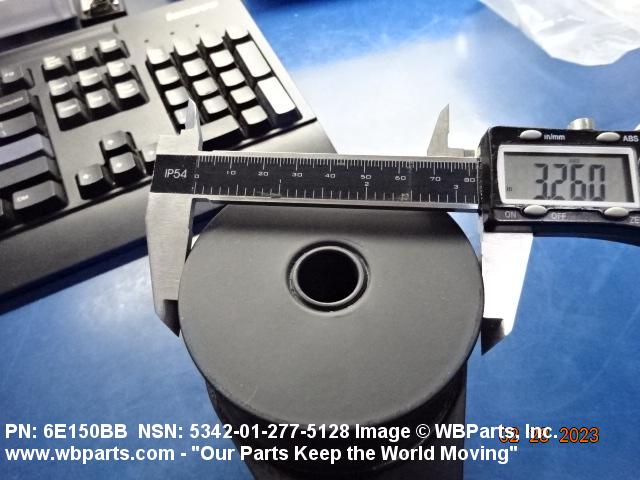

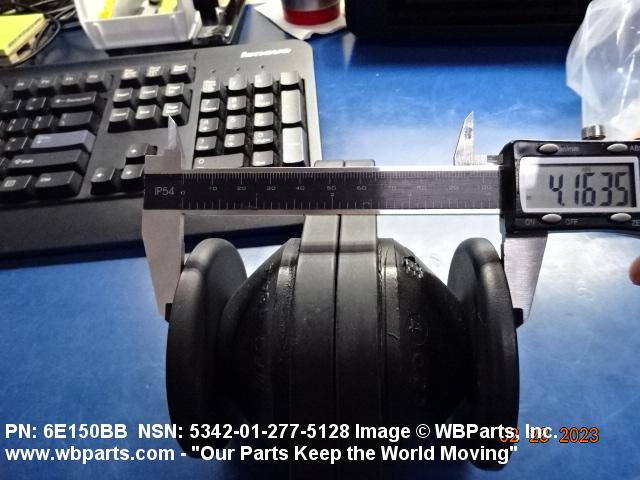

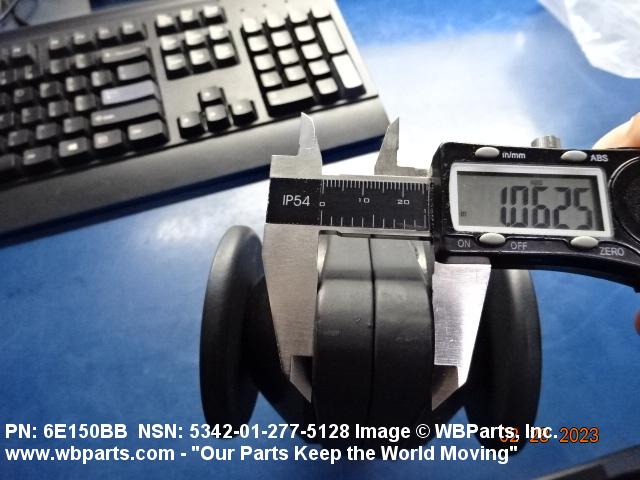

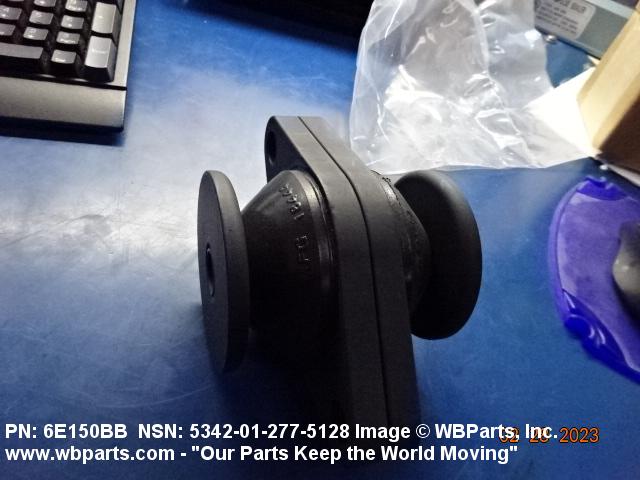

Drawings & Photos | NSN 5342-01-277-5128
Demand History | NSN 5342-01-277-5128
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6E150BB-SLEEVE 4.140 IN. LG | 2025-02-44 | 57 | DIBBS |
| 6E150BB-SLEEVE 4.140 IN. LG | 2024-11-319 | 15 | DIBBS |
| 6E150BB-SLEEVE 4.140 IN. LG | 2024-08-240 | 218 | DIBBS |
| 6E150BB-SLEEVE 4.140 IN. LG | 2024-07-200 | 122 | DIBBS |
| 6E150BB-SLEEVE 4.140 IN. LG | 2024-04-105 | 65 | DIBBS |
| 6E150BB-SLEEVE 4.140 IN. LG | 2024-01-15 | 102 | DIBBS |
| 6E150BB-SLEEVE 4.140 IN. LG | 2023-10-303 | 49 | DIBBS |
| 6E150BB-SLEEVE 4.140 IN. LG | 2023-10-295 | 49 | DIBBS |
| 5342-01-277-5128 | 2023-01-23 | 11 | United States |
| 5342-01-277-5128 | 2022-12-354 | 16 | United States |
| 5342-01-277-5128 | 2018-11-331 | 36 | US |
| 5342-01-277-5128 | 2018-02-46 | 1 | DIBBS-RFPs |
| 5342-01-277-5128 | 2013-06-171 | 117 | DIBBS |
| 5342-01-277-5128 | 2012-05-137 | 237 | DIBBS |
| 5342-01-277-5128 | 2012-03-61 | 193 | DIBBS |
| 5342-01-277-5128 | 2011-11-307 | 232 | DIBBS |
| 5342-01-277-5128 | 2011-10-284 | 251 | DIBBS |
| 5342-01-277-5128 | 2011-09-259 | 124 | DIBBS |
| 5342-01-277-5128 | 2011-08-217 | 83 | DIBBS |
| 5342-01-277-5128 | 2011-07-202 | 74 | DIBBS |
| 5342-01-277-5128 | 2011-06-181 | 47 | DIBBS |
| 5342-01-277-5128 | 2011-05-140 | 49 | DIBBS |
| 5342-01-277-5128 | 2010-05-140 | 159 | DIBBS |
Cross Reference | NSN 5342-01-277-5128
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1740665 | 43689 | HUNTINGTON INGALLS INCORPORATED DIV NEWPORT NEWS |
| 22417-1 | 2J565 | HOLT COMPANY OF OHIO |
| 6E150BB | 18444 | OIL STATES INDUSTRIES, INC DBA SPECIAL PRODUCTS DIV |
| 6E150BB | 81860 | BARRY WRIGHT CORPORATION DBA BARRY CONTROLS |
| 6E150BB-SLEEVE 4.140 IN. LG | 18444 | OIL STATES INDUSTRIES, INC DBA SPECIAL PRODUCTS DIV |
| 6E150BB-SLEEVE 4.140 IN. LG | 81860 | BARRY WRIGHT CORPORATION DBA BARRY CONTROLS |
| 6E150BB/MFGFROM | 81316 | PORTSMOUTH NAVAL SHIPYARD |
| 845-4498285-78 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5342-01-277-5128
Technical Data | NSN 5342-01-277-5128
| Characteristic | Specifications |
|---|---|
| RESILIENT MEMBER MATERIAL | RUBBER, NATURAL |
| NONMETALLIC HARDNESS RATING | NOT RATED |
| DISTANCE BETWEEN MOUNTING HOLE CENTERS | 5.375 INCHES NOMINAL |

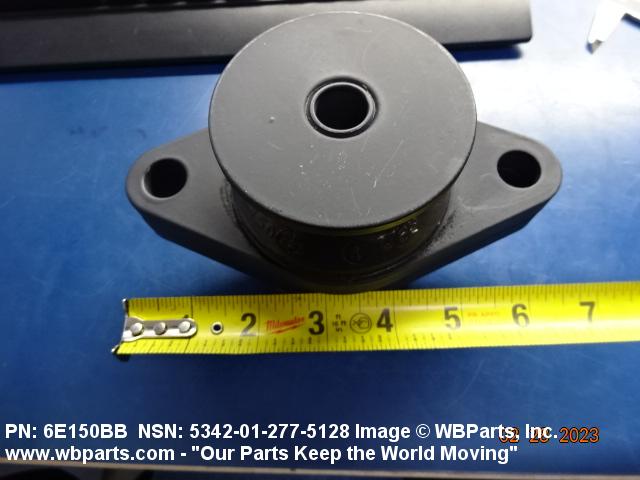

| FLANGE LENGTH | 6.625 INCHES NOMINAL |
| FLANGE WIDTH | 3.500 INCHES NOMINAL |

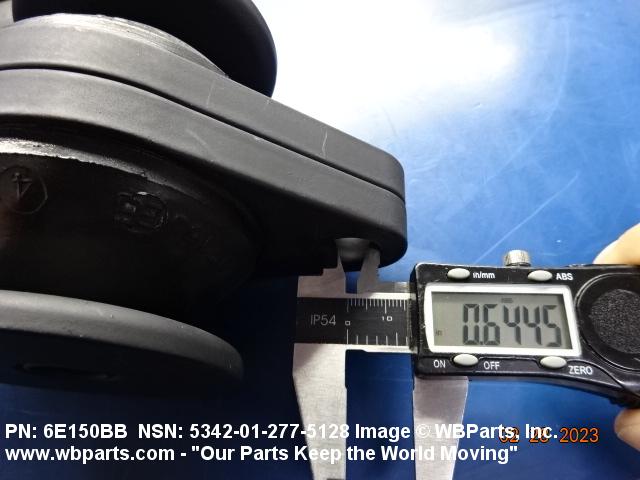

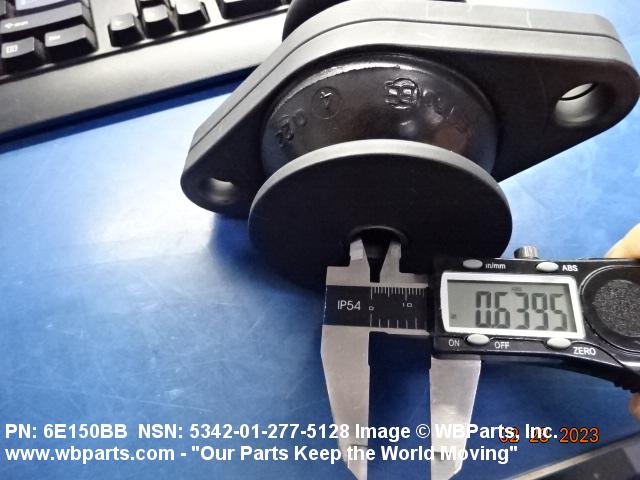

| FLANGE MOUNTING HOLE DIAMETER | 0.641 INCHES NOMINAL |
| LOAD/FREQUENCY RANGE | 100.0 LB LOAD FOR 8.1 HERTZ TO 150 LB LOAD FOR 6.7 HERTZ |
| MAXIMUM LOAD RATING | 150.0 POUNDS |
| SPECIAL FEATURES | SLEEVE 4.140 IN. LG |
Restrictions/Controls & Freight Information | NSN 5342-01-277-5128
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | T | 84 months |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 156600 | PLASTIC/RUBBER ARTICLE VIZ: |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5342-01-277-5128
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | T | 84 months |
| Purchasing | QTY UOM |
1 EA : Each |
