NSN 5342-01-284-6305 61383, 68B580123105, 68B580123-105
Product Details | FILLER OPENING CAP
5342-01-284-6305 A part basically circular in shape, designed to cover or seal the filler-neck or inlet opening of a fuel tank, radiator, oil reservoir, liquid storage tank or the like. It may be either permanently attached to the object for which it is designed or provided with a means of removal and replacement. Excludes CAP, VENT, FUEL STORAGE TANK; and COVER (1), (as modified).20525900034Miscellaneous Vehicular Components29300045Engine Cooling System Components, Nonaircraft29350055Engine System Cooling Components, Aircraft Prime Moving53400020Hardware, Commercial53420023Hardware, Weapon System
Part Alternates: 61383, 68B580123105, 68B580123-105, 5342-01-284-6305, 01-284-6305, 5342012846305, 012846305
Hardware and Abrasives | Hardware, Weapon System
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 26 AUG 1988 | 01-284-6305 | 30128 ( CAP, FILLER OPENING ) |
Drawings & Photos | NSN 5342-01-284-6305
Demand History | NSN 5342-01-284-6305
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 61383 | 2025-07-209 | 5 | DIBBS |
| 5342-01-284-6305 | 2024-03-67 | 10 | Saudi Arabia |
| 5342-01-284-6305 | 2022-12-361 | 7 | MANUAL |
| 61383 | 2022-12-361 | 7 | Saudi Arabia |
| 61383 | 2021-02-56 | 5 | DIBBS |
| 61383 | 2020-09-247 | 1 | DIBBS |
| 5342-01-284-6305 | 2018-10-283 | 5 | DIBBS |
| 5342-01-284-6305 | 2018-05-128 | 9 | DIBBS |
| 5342-01-284-6305 | 2018-01-03 | 4 | DIBBS |
| 5342-01-284-6305 | 2016-11-329 | 34 | DIBBS |
| 5342-01-284-6305 | 2016-05-130 | 16 | DIBBS |
| 5342-01-284-6305 | 2016-03-69 | 16 | DIBBS |
| 5342-01-284-6305 | 2013-05-127 | 7 | MANUAL |
| 5342-01-284-6305 | 2011-12-362 | 7 | DIBBS |
| 5342-01-284-6305 | 2011-12-342 | 5 | DIBBS |
| 5342-01-284-6305 | 2011-09-244 | 13 | DIBBS |
| 5342-01-284-6305 | 2011-05-136 | 11 | DIBBS |
| 5342-01-284-6305 | 2009-12-337 | 17 | DIBBS |
| 5342-01-284-6305 | 2009-08-215 | 7 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5342-01-284-6305
Related Products | NSN 5342-01-284-6305
Technical Data | NSN 5342-01-284-6305
| Characteristic | Specifications |
|---|---|

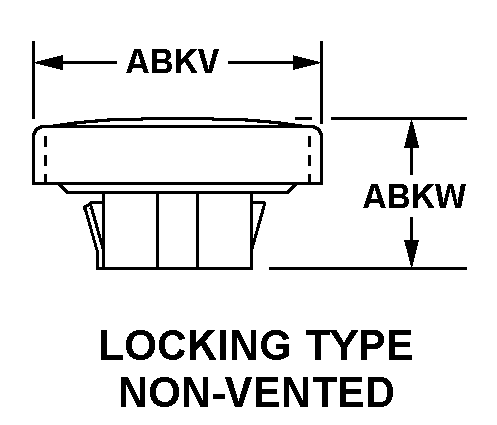

| STYLE DESIGNATOR | B28 LOCKING TYPE NON-VENTED |
| OUTSIDE DIAMETER | 5.875 INCHES NOMINAL |
| SYSTEM FOR WHICH DESIGNED | PRESSURIZED |
| MAXIMUM WORKING PRESSURE | 90.000 POUNDS PER SQUARE INCH |
| GRIPPING ACCOMMODATION TYPE | NOTCHED |
| SPECIAL MARKINGS | CAP-DEFUEL ONLY; PUSH DOWN AND TURN TO LOCK |
| III END ITEM IDENTIFICATION | AIRCRAFT, EAGLE F-15 |
| MANUFACTURERS CODE | 76301 |
| MFR SOURCE CONTROLLING REFERENCE | 68B580123-105 |
Restrictions/Controls & Freight Information | NSN 5342-01-284-6305
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | Y | 180 months |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 146190 | GUN CARRAIGES/MOUNTS NOI |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5342-01-284-6305
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | FX | TG:F-15 EAGLE |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | Y | 180 months |
| Purchasing | QTY UOM |
1 EA : Each |
