NSN 5342-01-314-3612 810-4714432 PIECE 308, 8104714432PIECE308, 01-314-3612

5342-01-314-3612

Part Alternates: 810-4714432 PIECE 308, 8104714432PIECE308, 5342-01-314-3612, 01-314-3612, 5342013143612, 013143612

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	28 JAN 1990	01-314-3612	77777 ( )

Part Number	Request Date	QTY	Origin
5342-01-314-3612	2013-04-105	242	DIBBS
5342-01-314-3612	2011-07-211	64	DIBBS
5342-01-314-3612	2011-07-207	1	DIBBS
5342-01-314-3612	2011-07-189	1	DIBBS
5342-01-314-3612	2011-07-189	200	DIBBS
5342-01-314-3612	2011-06-166	1	DIBBS
5342-01-314-3612	2011-04-102	74	DIBBS

Part Number	Cage Code	Manufacturer
810-4714432 PIECE 308	80064	NAVAL SHIP SYSTEMS COMMAND

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

NSNs for Compare ( up to 4 ): Add 5342-01-314-3612

Compare

5342-01-314-3613, 5342-01-314-3614, 5342-01-314-3615, 5342-01-314-3616, 5342-01-314-3638

Characteristic	Specifications

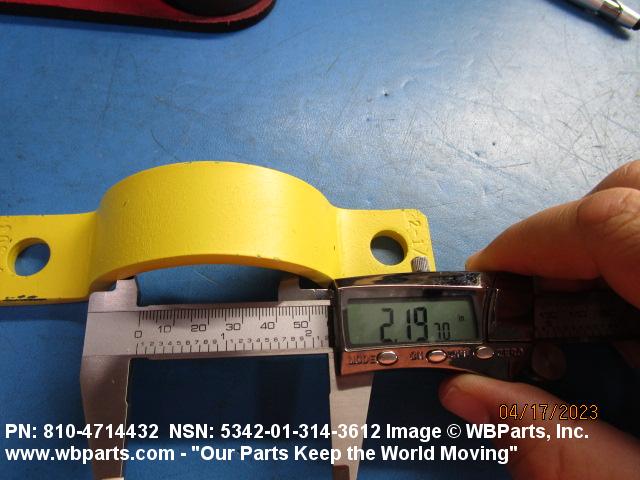

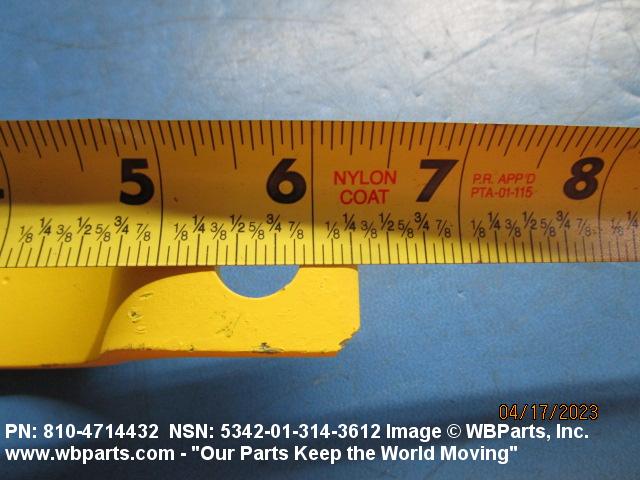

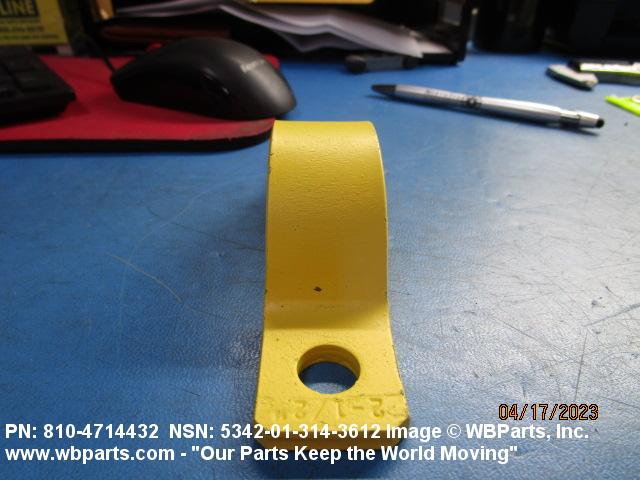

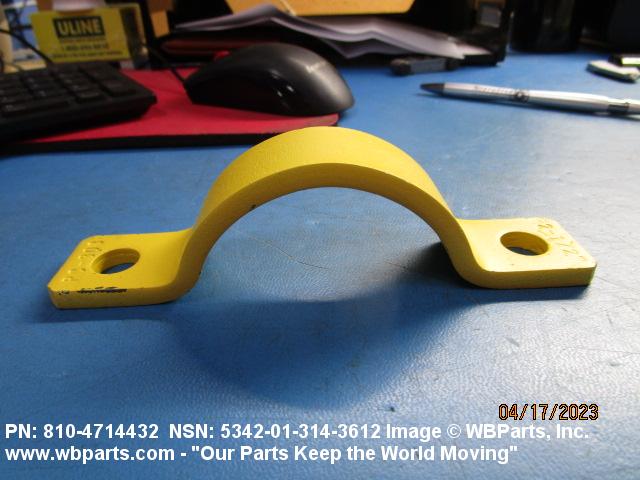

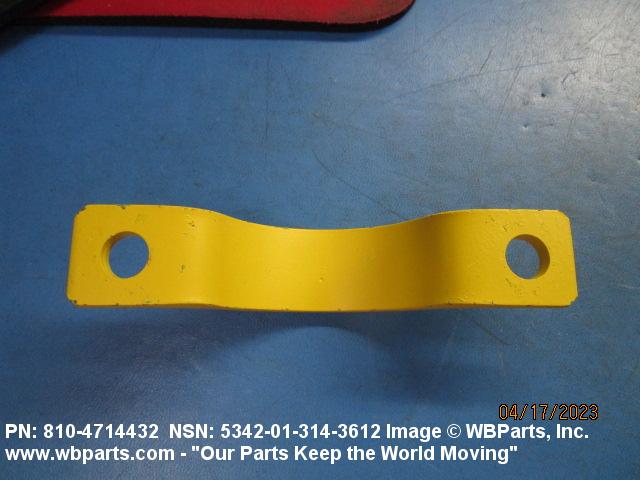

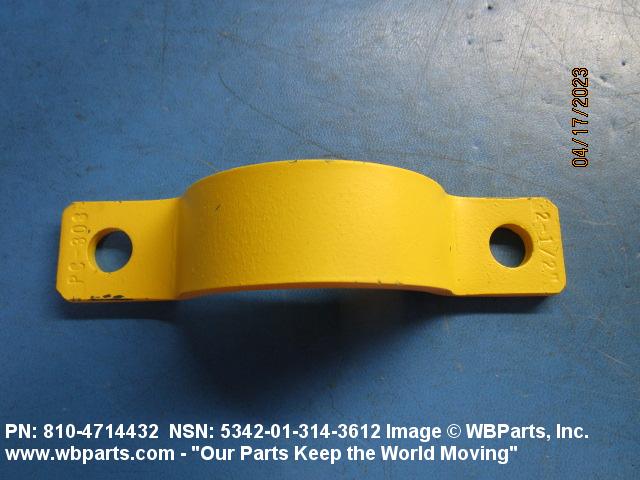

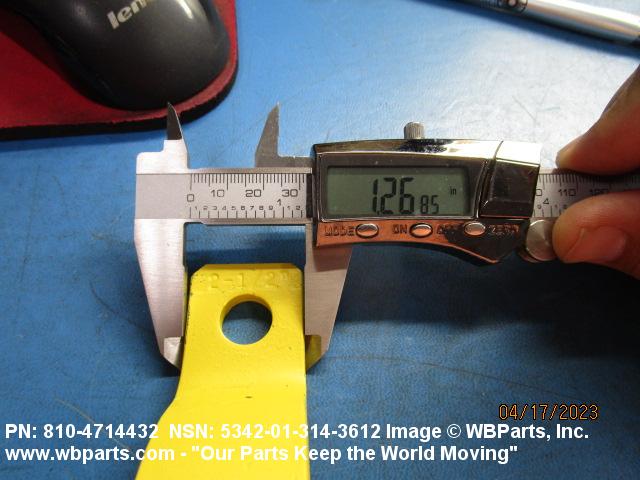

GENERAL CHARACTERISTICS ITEM DESCRIPTION	STEEL,MIL-S-22698,GR A; 1.250 IN. W; 0.250 IN. THK; TWO MTG HOLES,0.562 IN. DIA,5.000 IN. DIST BTWN MTG HOLE CENTERS; 2.500 IN. IPS; 6.250 IN. MIN LG

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	095190	HARDWARE, NOI SUB 9
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	713	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
