NSN 5342-01-494-0109 MILA24779, MIL-A-24779, MIL-A-24779 TYPE ASS-10
Product Details | CORROSION PREVENTIVE ANODE
5342-01-494-0109 An item which sacrificially corrodes when coupled to a more noble metal in a conducting medium.20253400020Hardware, Commercial53420023Hardware, Weapon System
Part Alternates: MILA24779, MIL-A-24779, MIL-A-24779 TYPE ASS-10, MILA24779TYPEASS10, 5342-01-494-0109, 01-494-0109, 5342014940109, 014940109, 211088526
Hardware and Abrasives | Hardware, Weapon System
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 29 JAN 2002 | 01-494-0109 | 13154 ( ANODE, CORROSION PREVENTIVE ) |
Drawings & Photos | NSN 5342-01-494-0109
Demand History | NSN 5342-01-494-0109
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5342-01-494-0109 | 2012-10-287 | 907 | DIBBS |
| 5342-01-494-0109 | 2012-09-255 | 972 | DIBBS |
| 5342-01-494-0109 | 2012-08-232 | 433 | DIBBS |
| 5342-01-494-0109 | 2012-03-79 | 1990 | DIBBS |
| 5342-01-494-0109 | 2011-11-311 | 1259 | DIBBS |
| 5342-01-494-0109 | 2011-10-279 | 1083 | DIBBS |
| 5342-01-494-0109 | 2010-09-272 | 364 | DIBBS |
| 5342-01-494-0109 | 2010-07-182 | 1208 | DIBBS |
| 5342-01-494-0109 | 2010-05-147 | 239 | DIBBS |
| 5342-01-494-0109 | 2010-03-81 | 679 | DIBBS |
| 5342-01-494-0109 | 2010-03-81 | 1290 | DIBBS |
| 5342-01-494-0109 | 2009-08-215 | 2682 | DIBBS |
| 5342-01-494-0109 | 2009-06-169 | 85 | DIBBS |
| 5342-01-494-0109 | 2009-03-84 | 2070 | DIBBS |
| 5342-01-494-0109 | 2009-01-07 | 38 | DIBBS |
Cross Reference | NSN 5342-01-494-0109
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5342-01-494-0109
Related Products | NSN 5342-01-494-0109
Technical Data | NSN 5342-01-494-0109
| Characteristic | Specifications |
|---|---|

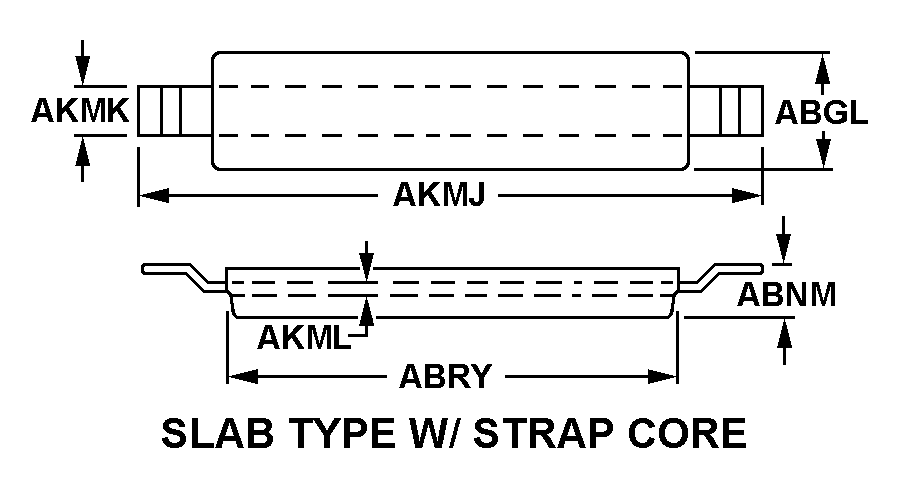

| STYLE DESIGNATOR | 17 SLAB TYPE WITH STRAP CORE |
| WIDTH | 3.000 INCHES NOMINAL |
| THICKNESS | 2.500 INCHES NOMINAL |
| LENGTH | 12.000 INCHES NOMINAL |
| CORE LENGTH | 16.000 INCHES NOMINAL |
| CORE WIDTH | 1.250 INCHES NOMINAL |
| CORE THICKNESS | 0.250 INCHES NOMINAL |
| WEIGHT | 8.700 POUNDS |
| SPECIAL FEATURES | MATERIAL IS ALUMINUM |
| III END ITEM IDENTIFICATION | SEAWOLF CLASS SSN |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-A-24779 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-A-24779 TYPE ASS-10 |
Restrictions/Controls & Freight Information | NSN 5342-01-494-0109
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | Y | Information is in the Hazardous Materials Information System (HMIS) |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 146190 | GUN CARRAIGES/MOUNTS NOI |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5342-01-494-0109
Navy
Marines| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Physical Category Code | 1 | Bin |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
