NSN 5342-01-550-8225 T159954, 01-550-8225, 015508225
Product Details | GROOVED CLAMP COUPLING HALF
5342-01-550-8225 A half section of a COUPLING, CLAMP, GROOVED to which one-half of a latching assembly (coupler) is attached. The section is designed to mate with formed flanges of various sizes and shapes on tubing, piping, ducts, and containers.
Part Alternates: T159954, 5342-01-550-8225, 01-550-8225, 5342015508225, 015508225
Hardware and Abrasives | Hardware, Weapon System
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 30 APR 2007 | 01-550-8225 | 20320 ( COUPLING HALF, CLAMP, GROOVED ) |
Drawings & Photos | NSN 5342-01-550-8225
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5342-01-550-8225
Technical Data | NSN 5342-01-550-8225
| Characteristic | Specifications |
|---|---|

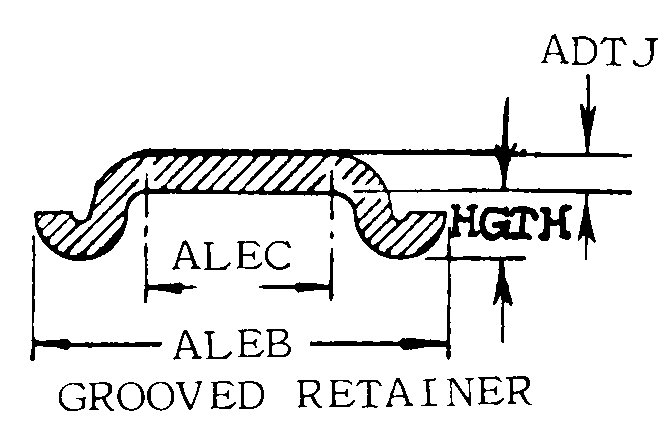

| CROSS-SECTIONAL SHAPE STYLE | 5A GROOVED RETAINER |
| RETAINER THICKNESS | 0.125 INCHES NOMINAL |
| MATERIAL AND LOCATION | STEEL OVERALL |
| SHAPE | RECTANGULAR |
| SPECIAL FEATURES | CLAMP; 0.15 LBS |
Restrictions/Controls & Freight Information | NSN 5342-01-550-8225
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
