NSN 5345-00-625-9520 ST1999, DS17031, 00-625-9520
Product Details | ABRASIVE WHEEL
5345-00-625-9520 A rigid piece of abrasive with or without mounting facilities. Items having such mounting facilities as a fixed spindle, a threaded insert, or an arbor hole are designed for mounting on a grinding machine, tool chuck or mandrel. Items without mounting facilities are designed to be secured in a wheel holder by means of spring clamps.20534600024Machine Tool accessories51300024Hand Tools, Power Driven53450026Disks and Stones, Abrasive65200043Dental Instruments, Equipment, and Supplies65400047Ophthalmic Instruments, Equipment, and Supplies
Part Alternates: ST1999, DS17031, 5345-00-625-9520, 00-625-9520, 5345006259520, 006259520
Hardware and Abrasives | Disks and Stones, Abrasive
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-625-9520 | 02613 ( WHEEL, ABRASIVE ) |
Drawings & Photos | NSN 5345-00-625-9520
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5345-00-625-9520
Technical Data | NSN 5345-00-625-9520
| Characteristic | Specifications |
|---|---|
| ABRASIVE MATERIAL | ALUMINUM OXIDE |
| SCREEN GRIT SIZE DESIGNATOR | 80 |
| USAGE DESIGN | METAL WORKING |
| ABRASIVE GRAIN STRUCTURE DESIGNATOR | 5 |

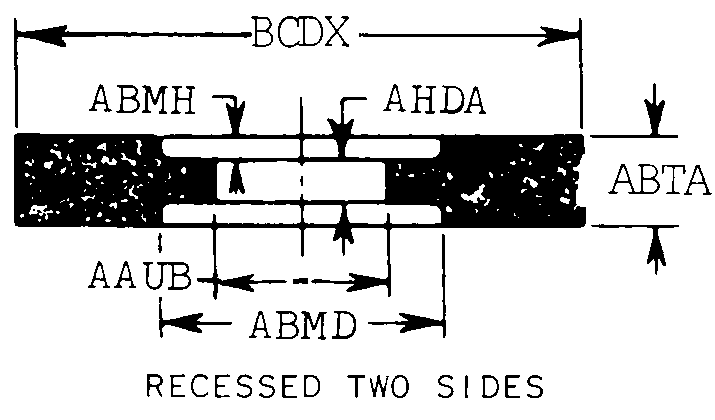

| WHEEL STYLE | 5 RECESSED TWO SIDES |
| HOLE DIAMETER | 0.156 INCHES MINIMUM AND 0.158 INCHES MAXIMUM |
| RECESS DIAMETER | 0.265 INCHES MINIMUM AND 0.295 INCHES MAXIMUM |
| RECESS DEPTH | 0.171 INCHES MINIMUM AND 0.201 INCHES MAXIMUM |
| OVERALL THICKNESS | 0.625 INCHES NOMINAL |
| HOLE THICKNESS | 0.283 INCHES MINIMUM AND 0.363 INCHES MAXIMUM |
| WHEEL DIAMETER | 0.718 INCHES MINIMUM AND 0.738 INCHES MAXIMUM |
| MOUNTING METHOD | ARBOR HOLE |
| MOUNTING OPENING SHAPE STYLE | 1 ROUND |
| DIAMETER | 0.156 INCHES MINIMUM AND 0.158 INCHES MAXIMUM |
| BINDER MATERIAL | VITREOUS SUBSTANCE |
| ABRASIVE BOND GRADE DESIGNATION | F SOFT |
Restrictions/Controls & Freight Information | NSN 5345-00-625-9520
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 001020 | ABRASIVES:CRUDE OR LUMP |
| Less than car load rating | ||
| Less than truck load rating | T | 55.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5345-00-625-9520
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Q | Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
