NSN 5355-00-070-5267 56516500040, 00-070-5267, 000705267
Product Details | DIAL MASK
5355-00-070-5267 An item specifically designed to be used with a multiscale dial or sector of a measuring device to limit, open or close the observation of the scale (s), or dial (s) desired. It is usually flat and contains one or more observation slots. It may be hinged or otherwise moved by rotary or straight-line motion to expose the scale or scales required for observation.
Part Alternates: 56516500040, 5355-00-070-5267, 00-070-5267, 5355000705267, 000705267
Hardware and Abrasives | Knobs and Pointers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 13 JUL 1967 | 00-070-5267 | 09867 ( MASK, DIAL ) |
Drawings & Photos | NSN 5355-00-070-5267
Cross Reference | NSN 5355-00-070-5267
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 56516500040 | 89944 | KOLLSMAN, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5355-00-070-5267
Technical Data | NSN 5355-00-070-5267
| Characteristic | Specifications |
|---|---|

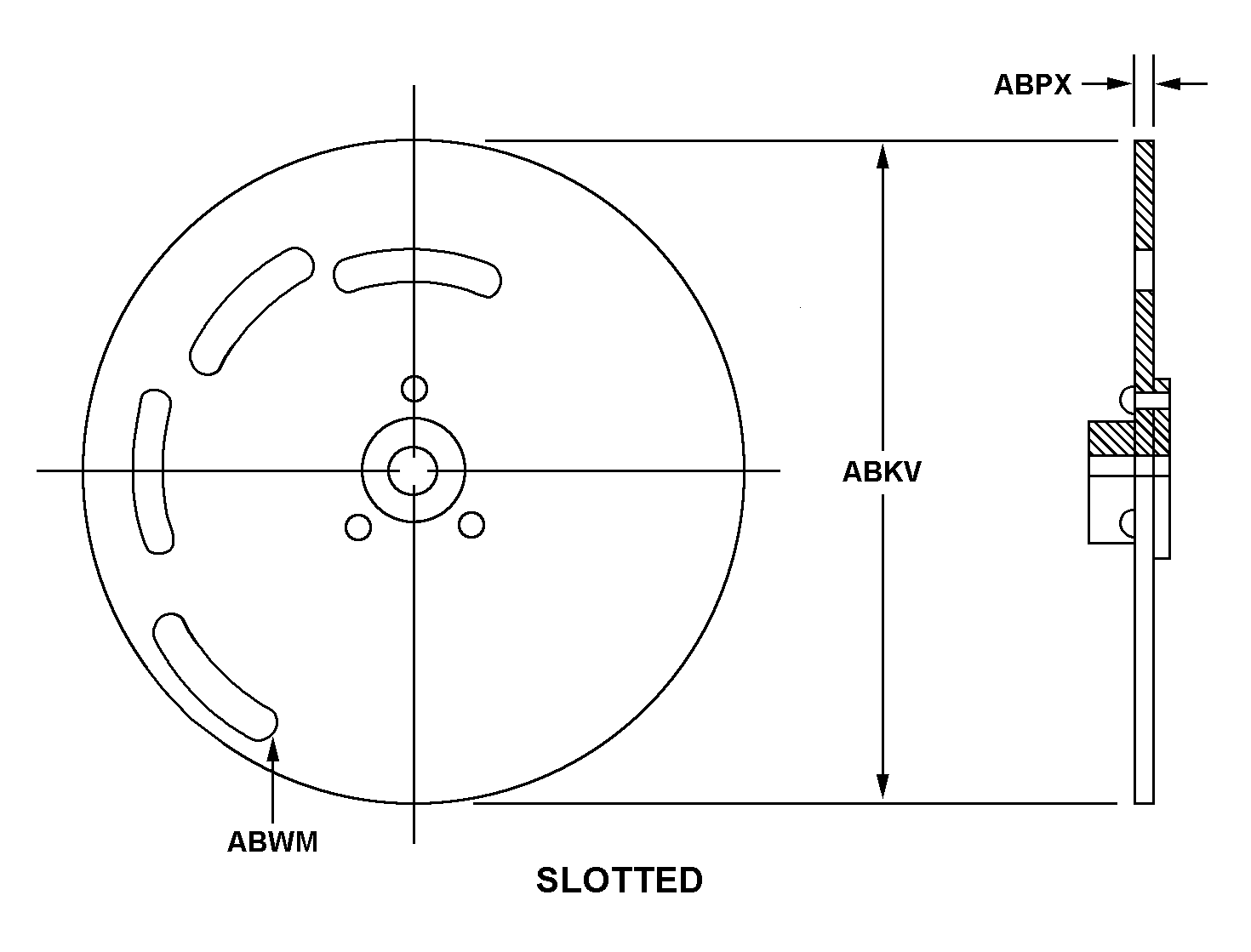

| STYLE DESIGNATOR | A111 SLOTTED |
| OUTSIDE DIAMETER | 3.374 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.010 INCHES NOMINAL |
| DIAL OBSERVATION SLOT QUANTITY | 1 |
| MATERIAL | COPPER ALLOY MASK |
| SURFACE TREATMENT | PAINT MASK |
| COLOR | BLACK MASK |
| SPECIAL FEATURES | ATTACHMENT METHOD, CLAMP; SURFACE COLOR WHITE |
| FSC APPLICATION DATA | INDICATOR,AZIMUTH,RADIO NAVIGATION,AIRBORNE |
| MANUFACTURERS CODE | 89944 |
| DESIGN CONTROL REFERENCE | 56516500040 |
Restrictions/Controls & Freight Information | NSN 5355-00-070-5267
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | K | 92.5 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
