NSN 5355-00-351-3490 SCC42058, GB307512E, GB3075-12E
Product Details | DIAL STOP
5355-00-351-3490 A device used in conjunction with a dial to prevent movement beyond a fixed point. For items designed to grip a knob or dial, see DIAL-KNOB LOCK, ELECTRONIC COMPONENT.
Part Alternates: SCC42058, GB307512E, GB3075-12E, GB307512F, GB3075-12F, 5355-00-351-3490, 00-351-3490, 5355003513490, 003513490
Hardware and Abrasives | Knobs and Pointers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-351-3490 | 14967 ( STOP, DIAL ) |
Drawings & Photos | NSN 5355-00-351-3490
Cross Reference | NSN 5355-00-351-3490
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5355-00-351-3490
Technical Data | NSN 5355-00-351-3490
| Characteristic | Specifications |
|---|---|

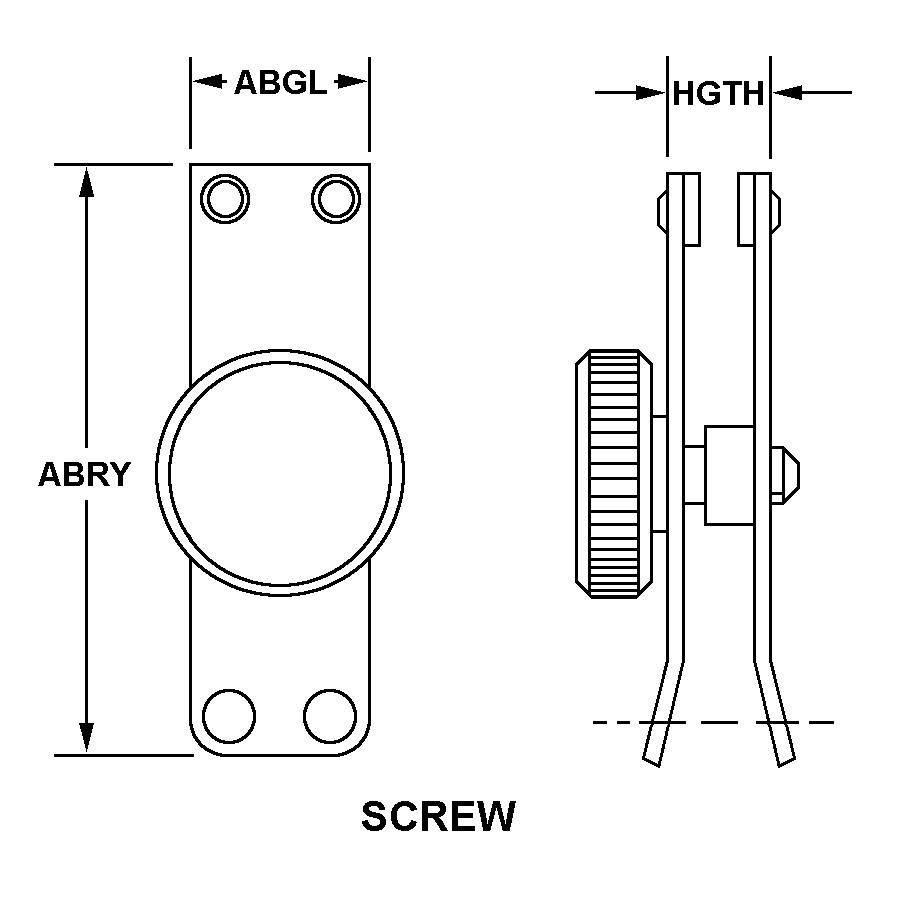

| STYLE DESIGNATOR | 164 SCREW |
| WIDTH | 1.562 INCHES NOMINAL |
| LENGTH | 2.406 INCHES NOMINAL |
| HEIGHT | 0.125 INCHES NOMINAL |
| ATTACHMENT METHOD | HOLE |
| MATERIAL | STEEL |
| MANUFACTURERS CODE | 80063 |
| DESIGN CONTROL REFERENCE | SCC42058 |
Restrictions/Controls & Freight Information | NSN 5355-00-351-3490
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 094380 | COTTER PINS/SPRING COTTERS IRON |
| Less than car load rating | U | 50 |
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
