NSN 5355-00-533-3973 B11646, B11-646 , 00-533-3973
Product Details | SCALE DIAL
5355-00-533-3973 A dial designed to be read in conjunction with a vernier indicator, pointer(s) or like instruments, which device is not an integral part of the item. The item does not have facilities for connection to a tuning or selection mechanism to position the mechanism. However, it may be designed to be mounted on a knob used to position the mechanism. Excludes SCALEPLATE, ELECTRICAL METER. See also DIAL, CONTROL.
Part Alternates: B11646, B11-646 , 5355-00-533-3973, 00-533-3973, 5355005333973, 005333973
Hardware and Abrasives | Knobs and Pointers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-533-3973 | 03264 ( DIAL, SCALE ) |

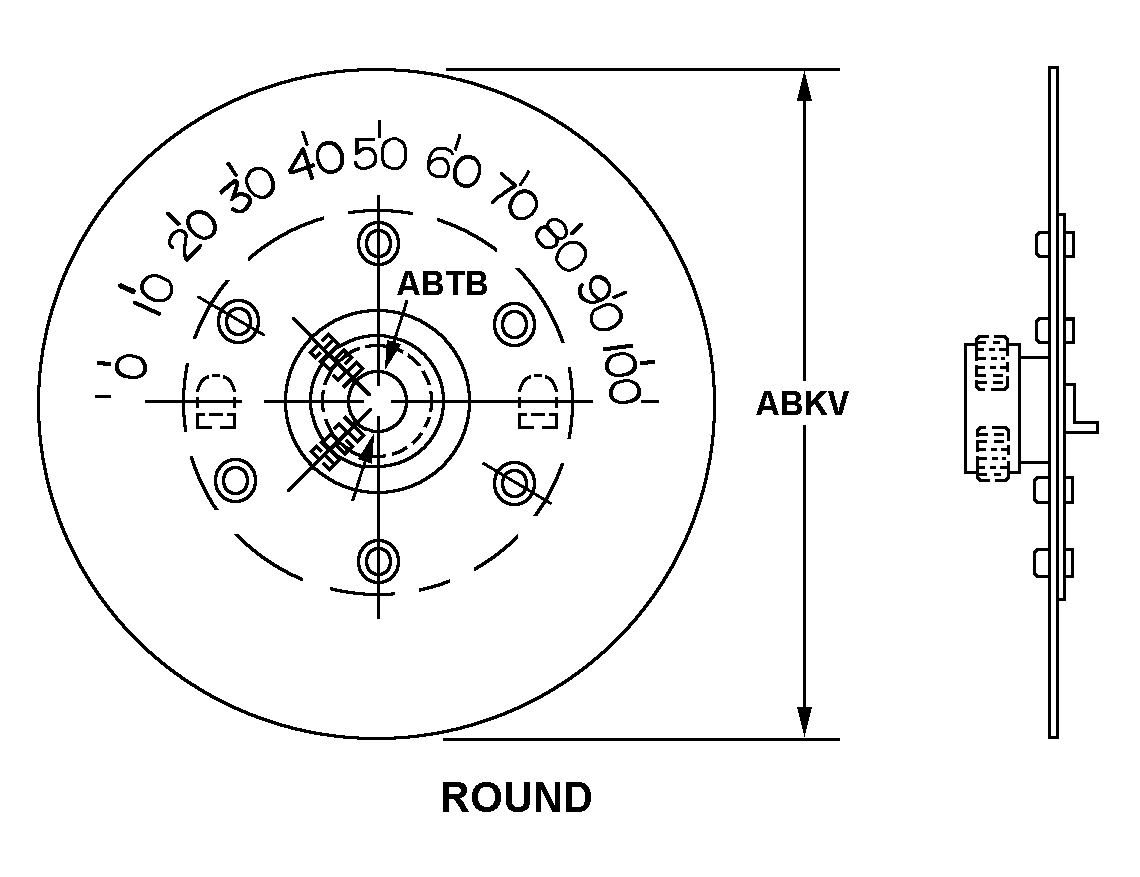

Drawings & Photos | NSN 5355-00-533-3973
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5355-00-533-3973
Technical Data | NSN 5355-00-533-3973
| Characteristic | Specifications |
|---|---|
| SURFACE TREATMENT | ANODIZE DIAL |
| STYLE DESIGNATOR | A91 ROUND |
| OUTSIDE DIAMETER | 1.406 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.125 INCHES MINIMUM AND 0.130 INCHES MAXIMUM |
| ATTACHMENT METHOD | THREADED HOLES |
| THREAD SERIES DESIGNATOR | UNC SCREW HOLE |
| NOMINAL THREAD SIZE | 0.086 INCHES SCREW HOLE |
| THREAD QUANTITY PER INCH | 56 SCREW HOLE |
| SCALE DIRECTION AND RANGE | 0 TO 360 CLOCKWISE SINGLE SCALE |
| SCALE TYPE | LINEAR SINGLE SCALE |
| SCALE DIVISION QUANTITY | 72 SINGLE SCALE |
| SPECIAL FEATURES | HUB MATERIAL: COPPER ALLOY; SETSCREW MATERIAL: ALUMINUM ALLOY 2024 |
| (NON-CORE DATA) MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-430 FED SPEC SINGLE MATERIAL RESPONSE |
| (NON-CORE DATA) SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC SINGLE TREATMENT RESPONSE |
| (NON-CORE DATA) SCALE DISTANCE AND TYPE | 4.415 INCHES CIRCULAR |
| MANUFACTURERS CODE | 05885 |
| DESIGN CONTROL REFERENCE | B11-646 |
Restrictions/Controls & Freight Information | NSN 5355-00-533-3973
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013120 | ALUMINUM ARTICLE NOI SUB 6 |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5355-00-533-3973
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
