NSN 5355-00-579-7140 10063, 00-579-7140, 005797140
Product Details | SHAFT LOCK
5355-00-579-7140 An item designed to be attached in place of the mounting bushing nut and/or attached to the chassis or panel for a volume control, a variable capacitor or the like to permit locking the shaft in a fixed position.
Part Alternates: 10063, 5355-00-579-7140, 00-579-7140, 5355005797140, 005797140
Hardware and Abrasives | Knobs and Pointers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-579-7140 | 67474 ( LOCK, SHAFT ) |

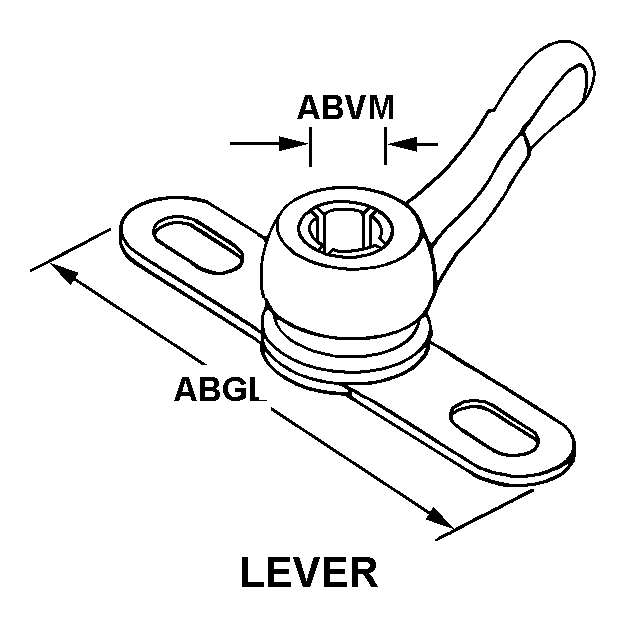

Drawings & Photos | NSN 5355-00-579-7140
Cross Reference | NSN 5355-00-579-7140
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10063 | 57285 | BETA LABS INC A-B AND MILLEN MFG DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5355-00-579-7140
Technical Data | NSN 5355-00-579-7140
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A144 LEVER |
| ACCOMMODATED SHAFT DIAMETER | 0.250 INCHES NOMINAL |
| WIDTH | 1.750 INCHES NOMINAL |
| ATTACHMENT METHOD | ELONGATED HOLE |
| MATERIAL | COPPER ALLOY OVERALL |
| SURFACE TREATMENT | NICKEL OVERALL |
| MANUFACTURERS CODE | 57285 |
| DESIGN CONTROL REFERENCE | 10063 |
Restrictions/Controls & Freight Information | NSN 5355-00-579-7140
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093460 | BOLTS/NUTS NOI BBC/ZINC |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
