NSN 5355-00-584-4087 MS915283D2B1, MS91528-3D2B1, MS915283D2BH
Product Details | KNOB
5355-00-584-4087 An item designed to transmit manual, rotary or linear motion to other devices. May include detachable or nondetachable stud (shaft), pointer, or skirt. It may have reference markings in the form of dots, arrows, hairlines, and/or symbols which may be used in conjunction with a calibrated panel, vernier indicator, and the like to indicate the position or motion of items. For items having spokes or simulated spokes radiating from near the center to near the outside rim of the item and relatively thin round disk-shaped items 3 inches (76.2 mm) in diameter or over, see HANDWHEEL. For items calibrated in units or series of divisions to denote relative positioning of devices see DIAL, CONTROL. Excludes DOORKNOB; and HANDLE (as modified).20210050018Guns, through 30mm53550018Knobs and Pointers
Part Alternates: MS915283D2B1, MS91528-3D2B1, MS915283D2BH, MS91528-3D2BH, A121B4MA, KMS12D2L1, 7607833P1, 12522G1, 125-2-2G1, 16683661, 1668366-1, 16683663, 1668366-3, 222749-321, 3D2B1, 51222M1, 512-2-2M-1, 5355-00-584-4087, 00-584-4087, 5355005844087, 222749321, 005844087
Hardware and Abrasives | Knobs and Pointers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-584-4087 | 03263 ( KNOB ) |

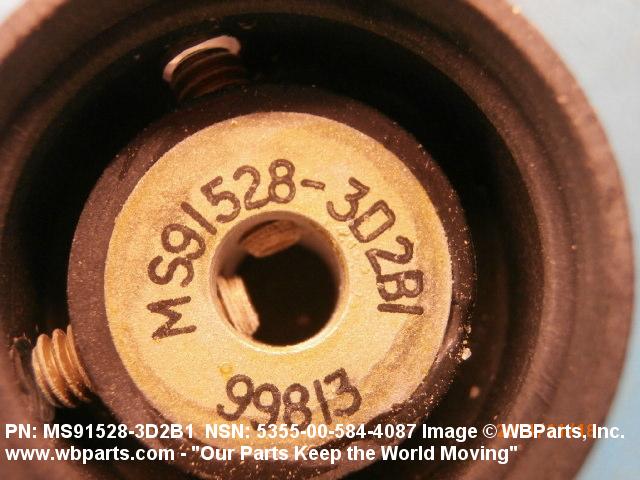

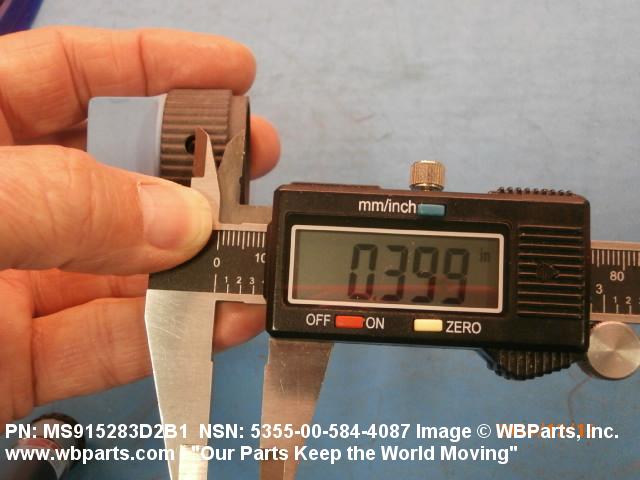

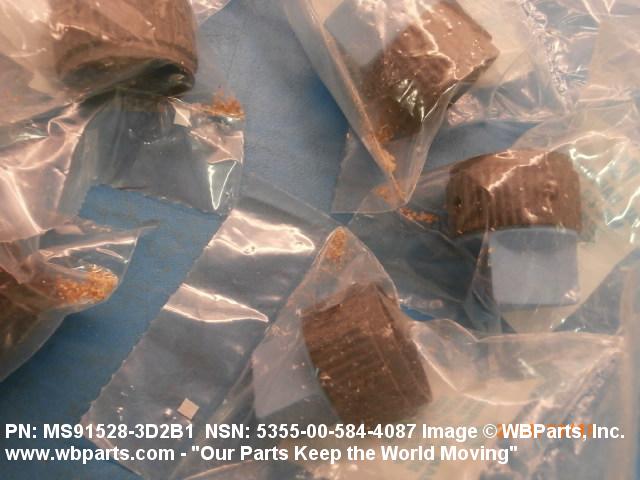

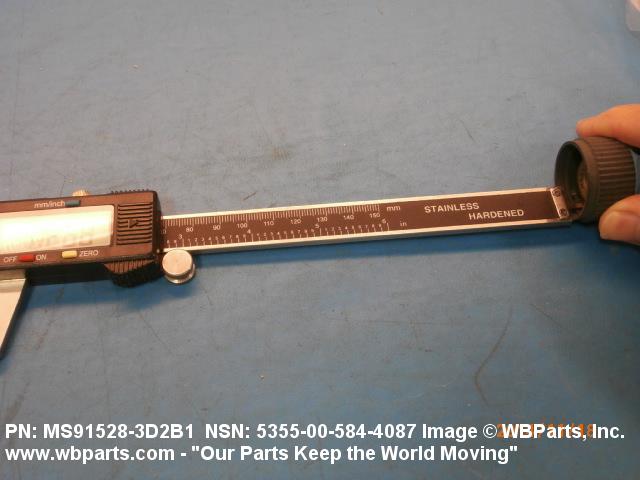

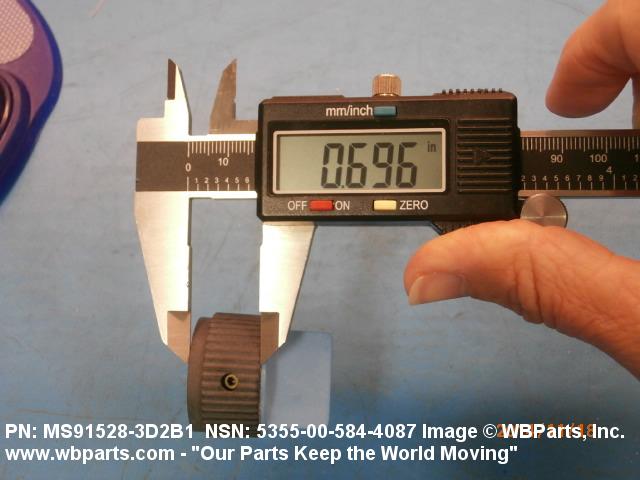

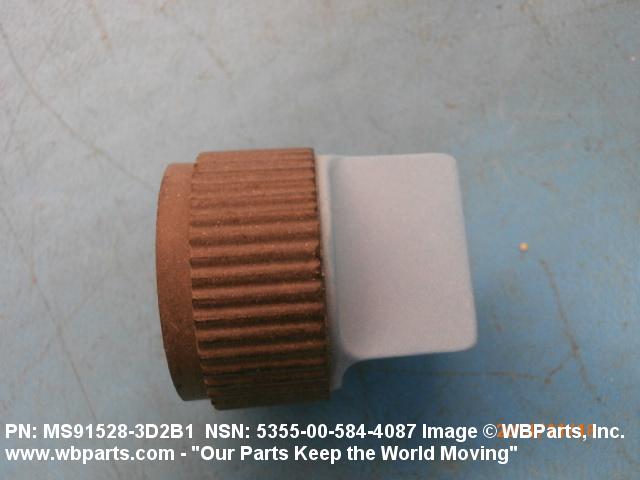

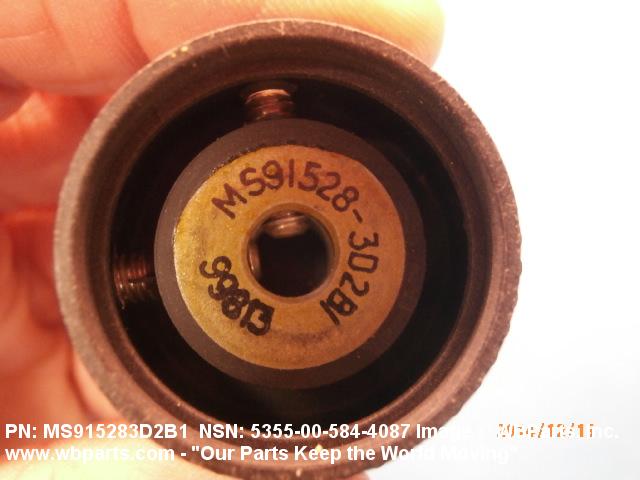

Drawings & Photos | NSN 5355-00-584-4087
Demand History | NSN 5355-00-584-4087
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5355-00-584-4087 | 2014-12-335 | 30 | United Kingdom |
| 5355-00-584-4087 | 2014-11-330 | 10 | United Kingdom |
| 5355-00-584-4087 | 2014-11-314 | 10 | United Kingdom |
Cross Reference | NSN 5355-00-584-4087
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 125-2-2G1 | 3B150 | RAYTHEON TECHNICAL SERVICES COMPANY LLC |
| 125-2-2G1 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| 1668366-1 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 1668366-3 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 222749-321 | 81413 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION I |
| 3D2B1 | 23480 | ELECTRONIC HARDWARE CORP. |
| 512-2-2M-1 | 52525 | LERCO DIV SPACE-LOK INC |
| 7607833P1 | 03538 | LOCKHEED MARTIN CORPORATION DIV MST |
| A121B4MA | 99813 | JAN HARDWARE MFG CO INC |
| KMS12D2L1 | 07886 | DAR ELECTRONICS INC COMMERCIAL PRODUCTS DIV |
| KMS12D2L1 | 42498 | DAR ELECTRONICS INC DBA NATIONAL RADIO CO |
| KMS12D2L1 | 92149 | STRUX CORP |
| MS91528-3D2B1 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS91528-3D2BH | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5355-00-584-4087
Technical Data | NSN 5355-00-584-4087
| Characteristic | Specifications |
|---|---|

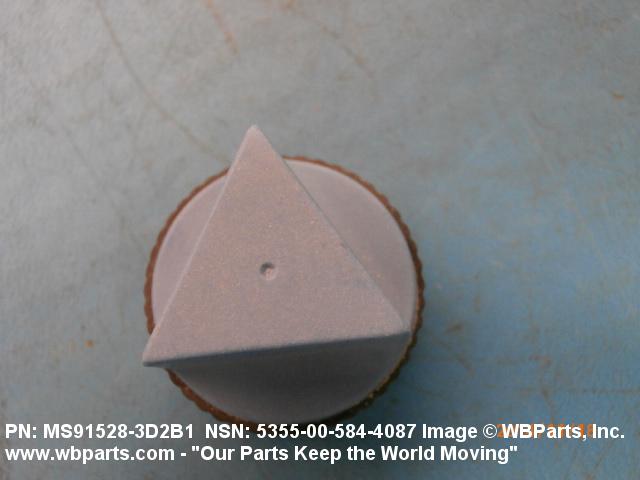

| STYLE DESIGNATOR | A9 ROUND WITH TRIANGULAR FACE |

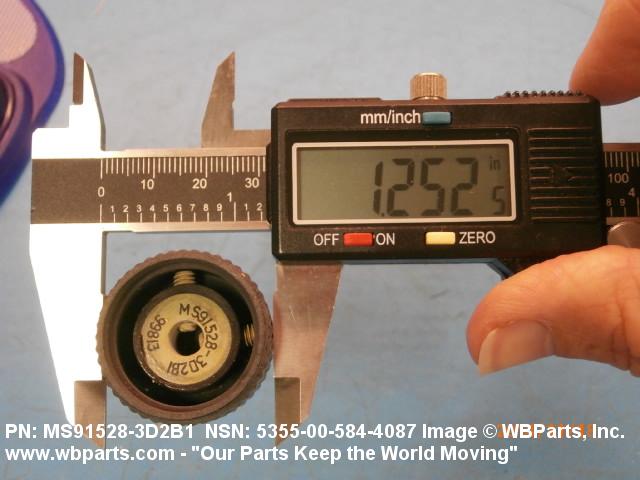

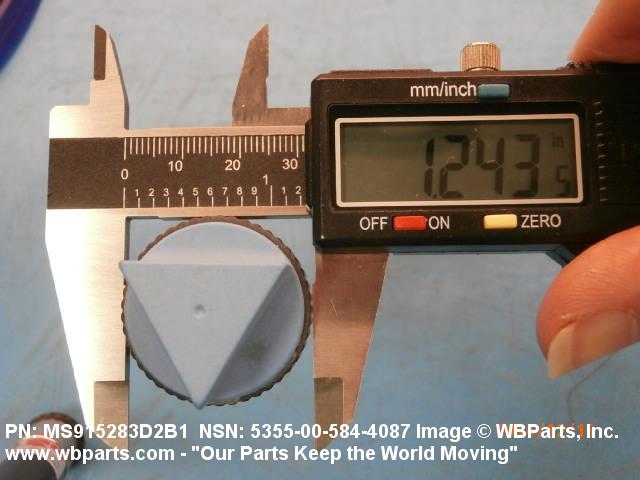

| OUTSIDE DIAMETER | 1.240 INCHES MINIMUM AND 1.280 INCHES MAXIMUM |

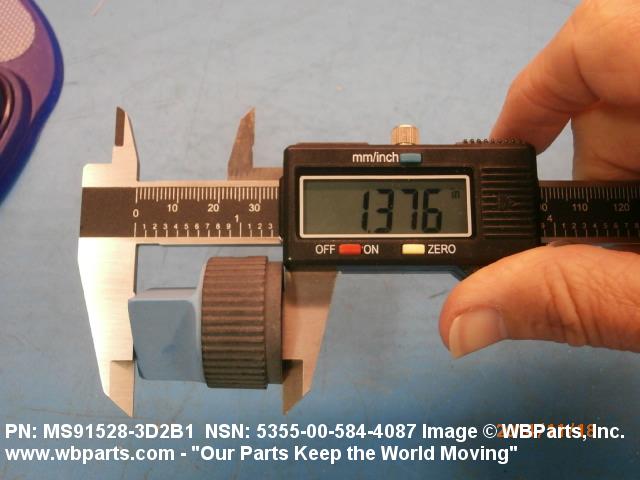

| OVERALL THICKNESS | 1.325 INCHES MINIMUM AND 1.425 INCHES MAXIMUM |
| ATTACHMENT METHOD | SETSCREWS |
| SETSCREW HOLE QUANTITY | 2 |
| SCREW DRIVE TYPE | HEXAGON SOCKET |

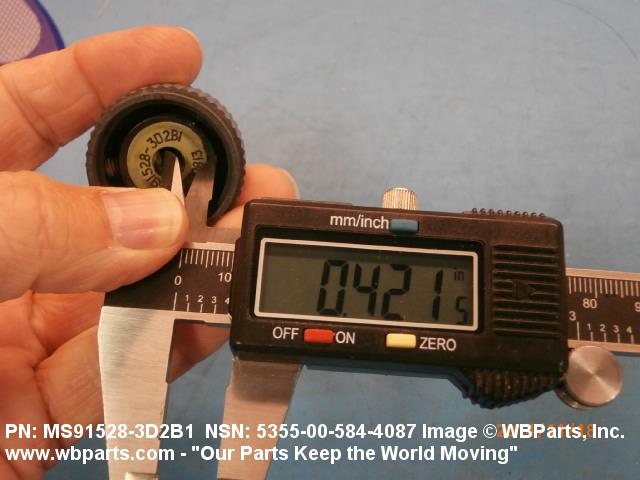

| DISTANCE FROM HOLE CENTER TO KNOB/SKIRT BASE | 0.427 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNC SCREW HOLE |
| NOMINAL THREAD SIZE | 0.164 INCHES SCREW HOLE |
| THREAD QUANTITY PER INCH | 32 SCREW HOLE |
| GRIPPING SURFACE CONDITION | GRIP AID |
| SHAFT ACCOMMODATION STYLE | E18 COUNTERBORED |

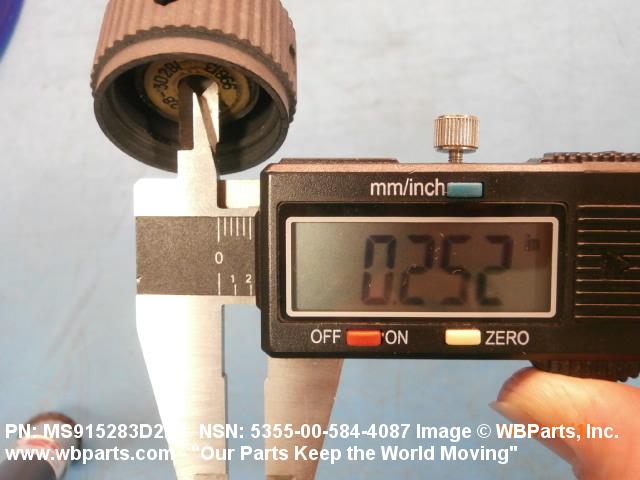

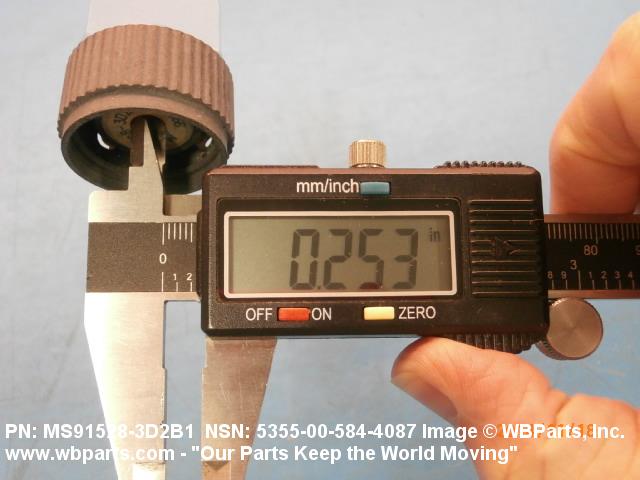

| INSIDE DIAMETER | 0.252 INCHES MINIMUM AND 0.254 INCHES MAXIMUM |

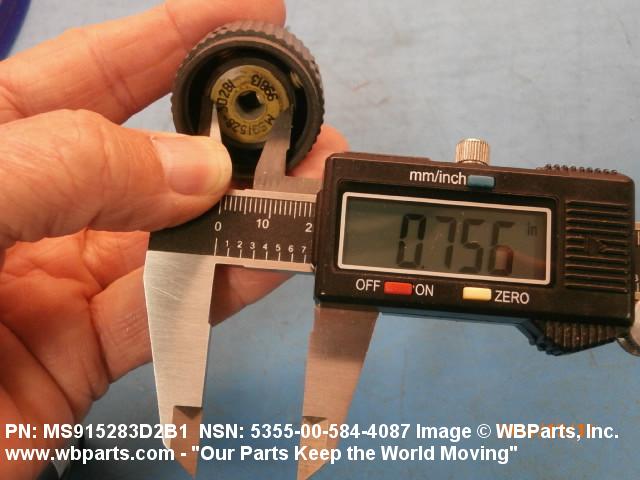

| COUNTERBORE DIAMETER | 0.750 INCHES MINIMUM |
| COUNTERBORE DEPTH | 0.250 INCHES MINIMUM |
| OVERALL DEPTH | 0.605 INCHES MINIMUM |
| SKIRT DESIGN | NONDETACHABLE |
| SKIRT STYLE | F2 STEPPED |
| SKIRT OUTSIDE DIAMETER | 1.185 INCHES MAXIMUM |
| MATERIAL TRANSPARENCY | OPAQUE |

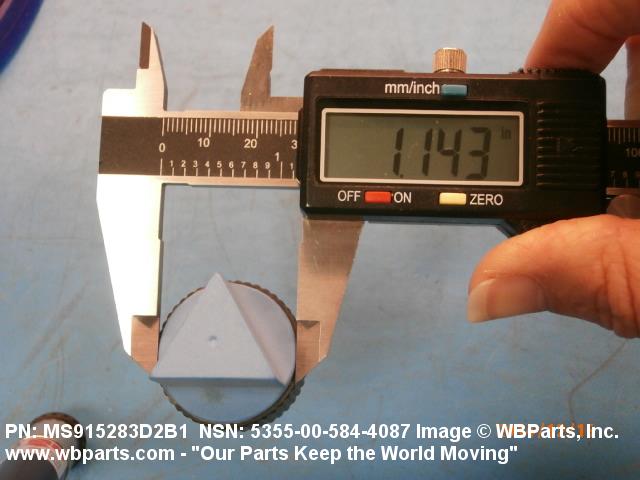

| SPECIAL FEATURES | TACTILE FORM-INTENSITY,1.136 IN. MIN DIA,1.176 IN. MAX DIA,0.600 IN.MIN THICKNESS,0.650 IN. MAX THICKNESS |
| (NON-CORE DATA) SURFACE TREATMENT | PASSIVATE |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS91528-3D2B1 |
Restrictions/Controls & Freight Information | NSN 5355-00-584-4087
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 108590 | KNOBS/PULLS DOOR/DRAWER NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5355-00-584-4087
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | X | SEMIACTIVE ITEM-NO REPLACEMENT (NON-STOCKED ITEMS) A potentially inactive NSN which must be retained in the supply system as an item of supply because (1) stocks of the item are on hand or in use below the wholesale level and (2) the NSN is cited in equipment authorization documents TO & E, TA, TM, etc., or in-use assets are being reported. 1. Items are authorized for central procurement but not authorized for stockage at wholesale level. 2. Requisitions for in-use replacement will be authorized in accordance with individual Military Service directives. 3. Requisitions may be submitted as requirements generate. Repetitive demands may dictate an AAC change to permit wholesale stockage. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
