NSN 5355-00-693-9740 LS2729, 00278, 1082724
Product Details | KNOB
5355-00-693-9740 An item designed to transmit manual, rotary or linear motion to other devices. May include detachable or nondetachable stud (shaft), pointer, or skirt. It may have reference markings in the form of dots, arrows, hairlines, and/or symbols which may be used in conjunction with a calibrated panel, vernier indicator, and the like to indicate the position or motion of items. For items having spokes or simulated spokes radiating from near the center to near the outside rim of the item and relatively thin round disk-shaped items 3 inches (76.2 mm) in diameter or over, see HANDWHEEL. For items calibrated in units or series of divisions to denote relative positioning of devices see DIAL, CONTROL. Excludes DOORKNOB; and HANDLE (as modified).20210050018Guns, through 30mm53550018Knobs and Pointers
Part Alternates: LS2729, 00278, 1082724, 10-82724 , 629375, 62-9375, 5355-00-693-9740, 00-693-9740, 5355006939740, 006939740
Hardware and Abrasives | Knobs and Pointers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-693-9740 | 03263 ( KNOB ) |

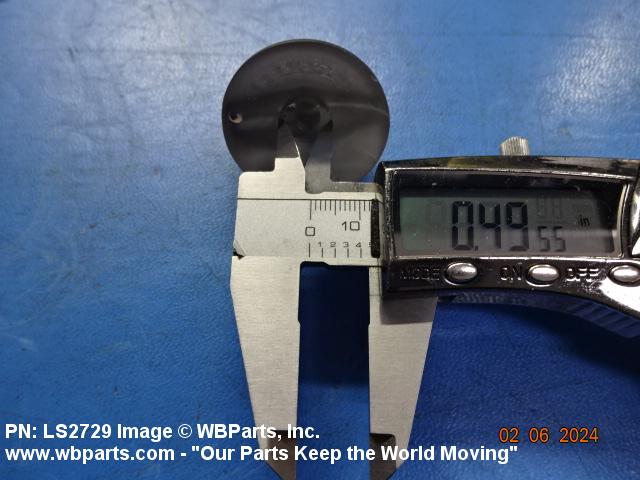

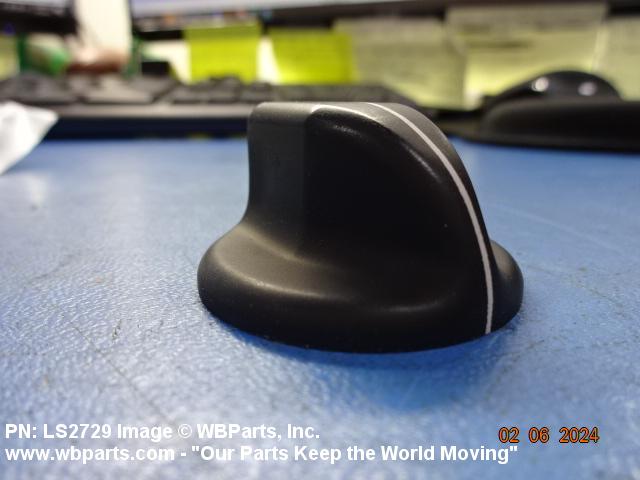

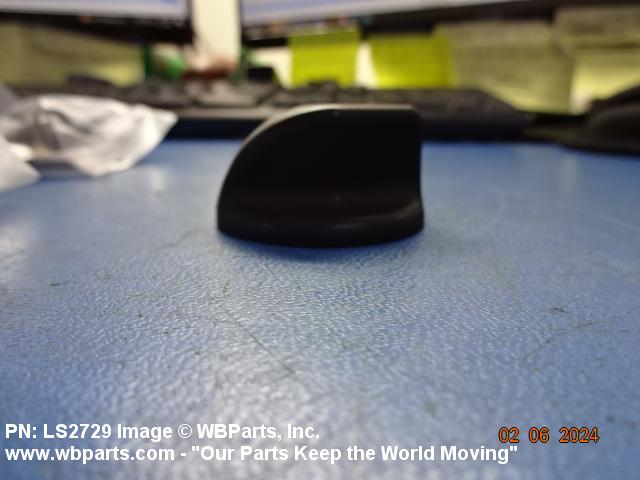

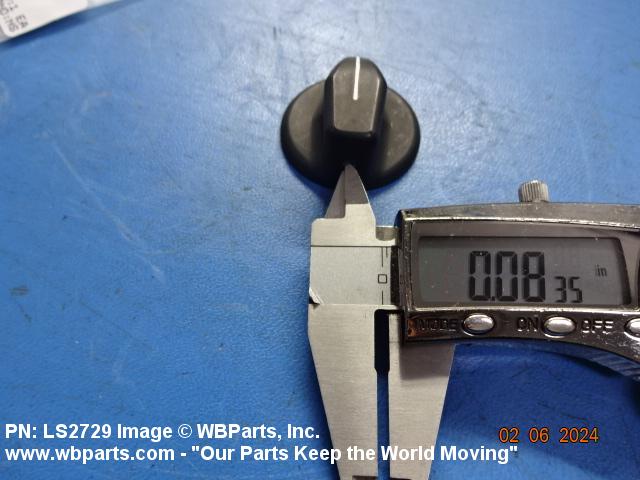

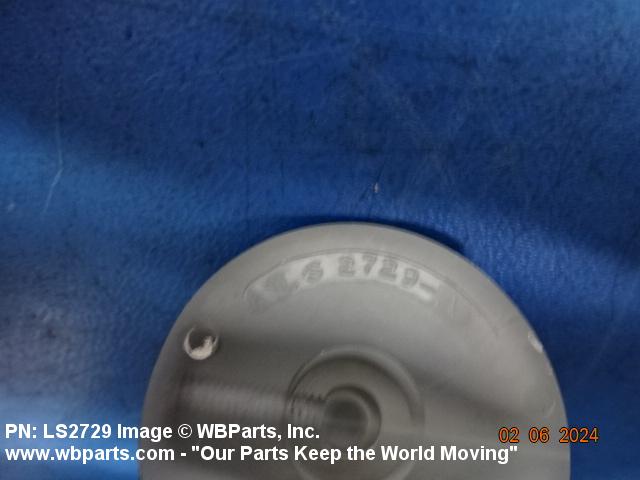

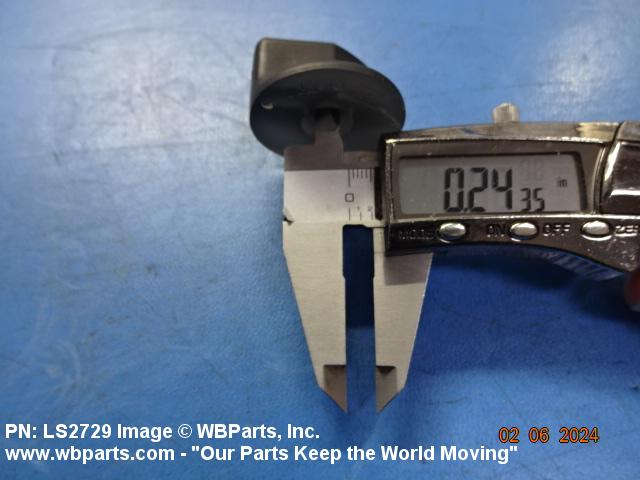

Drawings & Photos | NSN 5355-00-693-9740
Demand History | NSN 5355-00-693-9740
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| LS2729 | 2024-01-30 | 8 | United States |
| LS2729 | 2023-10-300 | 8 | United States |
| 5355-00-693-9740 | 2023-10-293 | 6 | US |
| 5355-00-693-9740 | 2023-08-234 | 6 | United States |
| 5355-00-693-9740 | 2019-06-172 | 1 | DIBBS-RFPs |
| 5355-00-693-9740 | 2018-11-331 | 2 | PK |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5355-00-693-9740
Technical Data | NSN 5355-00-693-9740
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A8 ROUND WITH SINGLE POINTED BAR FACE |

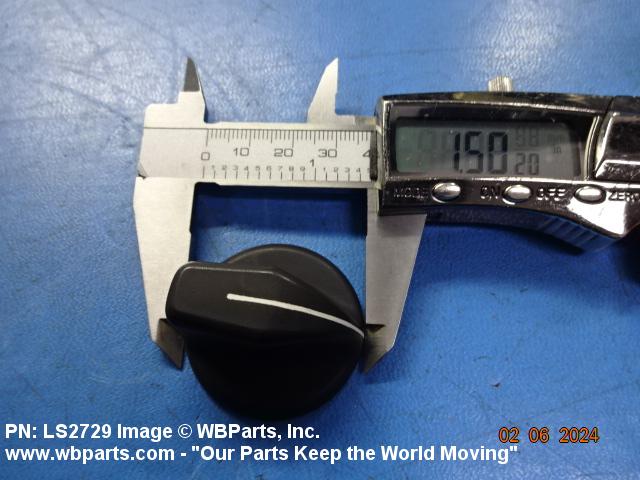

| OUTSIDE DIAMETER | 1.500 INCHES MAXIMUM |
| OVERALL THICKNESS | 0.800 INCHES NOMINAL |
| ATTACHMENT METHOD | SETSCREWS |
| SETSCREW HOLE QUANTITY | 1 |
| SCREW DRIVE TYPE | HEXAGON SOCKET |
| DISTANCE FROM HOLE CENTER TO KNOB/SKIRT BASE | 0.350 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNC SCREW HOLE |
| NOMINAL THREAD SIZE | 0.164 INCHES SCREW HOLE |
| THREAD QUANTITY PER INCH | 32 SCREW HOLE |
| GRIPPING SURFACE CONDITION | SMOOTH |
| SHAFT ACCOMMODATION STYLE | E4 FLATTED ONE SIDE |
| INSIDE DIAMETER | 0.251 INCHES MINIMUM AND 0.257 INCHES MAXIMUM |
| OVERALL DEPTH | 0.740 INCHES NOMINAL |
| INSIDE WIDTH | 0.220 INCHES MINIMUM AND 0.225 INCHES MAXIMUM |
| POINTER DESIGN | NONDETACHABLE |
| REFERENCE MARKING | SINGLE LINE |
| (NON-CORE DATA) SURFACE LUSTER | MATTE |
| MANUFACTURERS CODE | 98897 |
| DESIGN CONTROL REFERENCE | LS2729 |
Restrictions/Controls & Freight Information | NSN 5355-00-693-9740
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061990 | ELECTRICAL EQUIP:FILTERS |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5355-00-693-9740
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
