Product Details | DIAL MASK
5355-00-917-0040 An item specifically designed to be used with a multiscale dial or sector of a measuring device to limit, open or close the observation of the scale (s), or dial (s) desired. It is usually flat and contains one or more observation slots. It may be hinged or otherwise moved by rotary or straight-line motion to expose the scale or scales required for observation.
Part Alternates: 102376, 5355-00-917-0040, 00-917-0040, 5355009170040, 009170040
Hardware and Abrasives | Knobs and Pointers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 15 JUL 1966 | 00-917-0040 | 09867 ( MASK, DIAL ) |
Drawings & Photos | NSN 5355-00-917-0040
Cross Reference | NSN 5355-00-917-0040
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 102376 | 10138 | ASTRONAUTICS CORPORATION OF AMERICA |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5355-00-917-0040
Related Products | NSN 5355-00-917-0040
Technical Data | NSN 5355-00-917-0040
| Characteristic | Specifications |
|---|---|

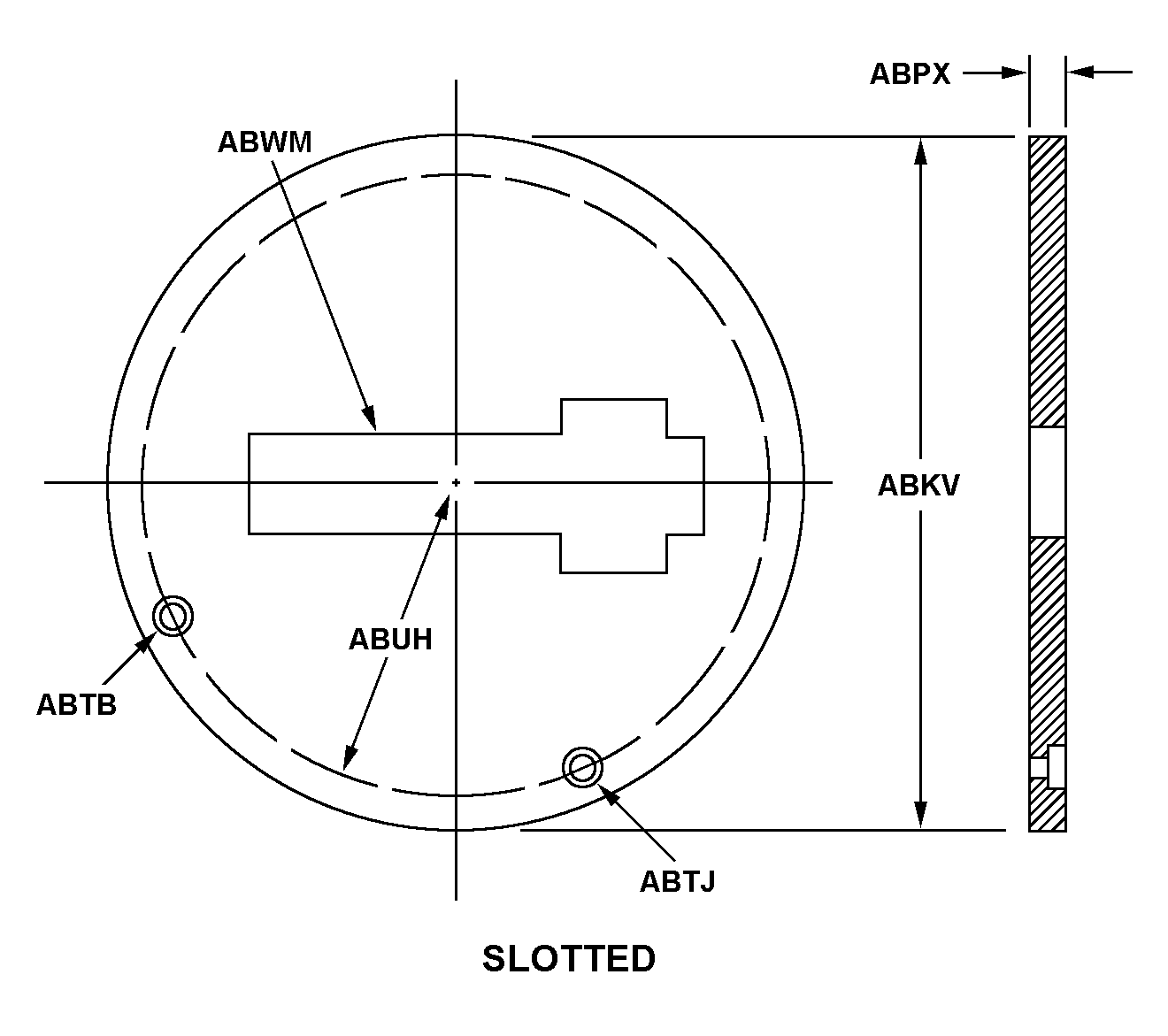

| STYLE DESIGNATOR | A112 SLOTTED |
| OUTSIDE DIAMETER | 2.950 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.096 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.020 INCHES NOMINAL |
| MOUNTING HOLE CIRCLE RADIUS | 2.848 INCHES NOMINAL |
| DIAL OBSERVATION SLOT QUANTITY | 1 |
| MOUNTING HOLE QUANTITY | 3 |
| ATTACHMENT METHOD | HOLE |
| MATERIAL | COPPER ALLOY MASK |
| SPECIAL FEATURES | ALSO HAS 2 MOUNTING HOLES WITH 0.067 IN. DIA; OVERALL SURFACE TREATMENT, OXCIDE |
| FSC APPLICATION DATA | INDICATOR,BEARING,RADIO NAVIGATION,AIRBORNE |
| (NON-CORE DATA) MATERIAL DOCUMENT AND CLASSIFICATION | QQ-B-613,COMP 11 FED SPEC SINGLE MATERIAL RESPONSE |
| (NON-CORE DATA) SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-13924,CLASS 2 MIL SPEC SINGLE TREATMENT RESPONSE |
| MANUFACTURERS CODE | 10138 |
| DESIGN CONTROL REFERENCE | 102376 |
