NSN 5355-01-020-5973 2890936, 28909361, 2890936-1
Product Details | KNOB
5355-01-020-5973 An item designed to transmit manual, rotary or linear motion to other devices. May include detachable or nondetachable stud (shaft), pointer, or skirt. It may have reference markings in the form of dots, arrows, hairlines, and/or symbols which may be used in conjunction with a calibrated panel, vernier indicator, and the like to indicate the position or motion of items. For items having spokes or simulated spokes radiating from near the center to near the outside rim of the item and relatively thin round disk-shaped items 3 inches (76.2 mm) in diameter or over, see HANDWHEEL. For items calibrated in units or series of divisions to denote relative positioning of devices see DIAL, CONTROL. Excludes DOORKNOB; and HANDLE (as modified).20210050018Guns, through 30mm53550018Knobs and Pointers
Part Alternates: 2890936, 28909361, 2890936-1, 53322501, 533-225-01, 5355-01-020-5973, 01-020-5973, 5355010205973, 010205973
Hardware and Abrasives | Knobs and Pointers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 MAY 1976 | 01-020-5973 | 03263 ( KNOB ) |

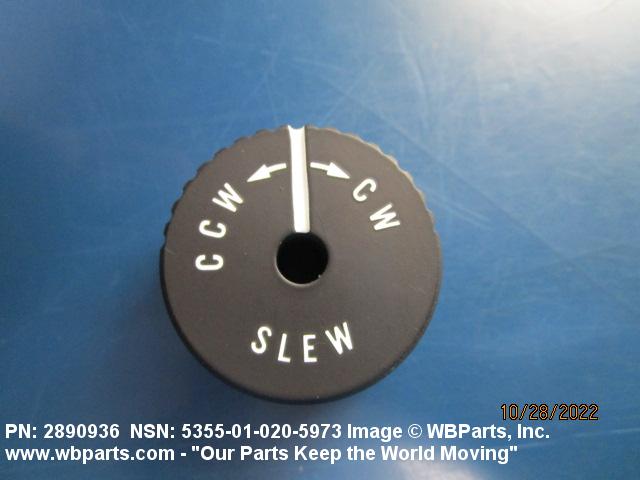

Drawings & Photos | NSN 5355-01-020-5973
Demand History | NSN 5355-01-020-5973
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5355-01-020-5973 | 2022-10-294 | 3 | United States |
| 5355-01-020-5973 | 2022-09-273 | 10 | United States |
| 5355-01-020-5973 | 2020-11-323 | 20 | US |
| 5355-01-020-5973 | 2020-05-149 | 20 | US |
| 5355-01-020-5973 | 2018-10-276 | 1 | US |
Cross Reference | NSN 5355-01-020-5973
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5355-01-020-5973
Technical Data | NSN 5355-01-020-5973
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A4 ROUND |

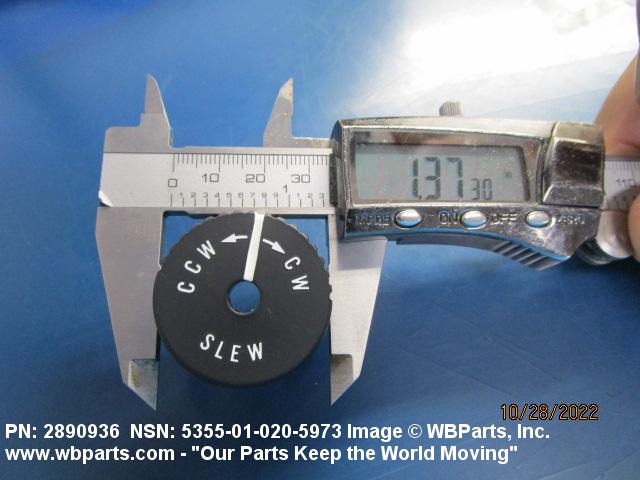

| OUTSIDE DIAMETER | 1.370 INCHES NOMINAL |

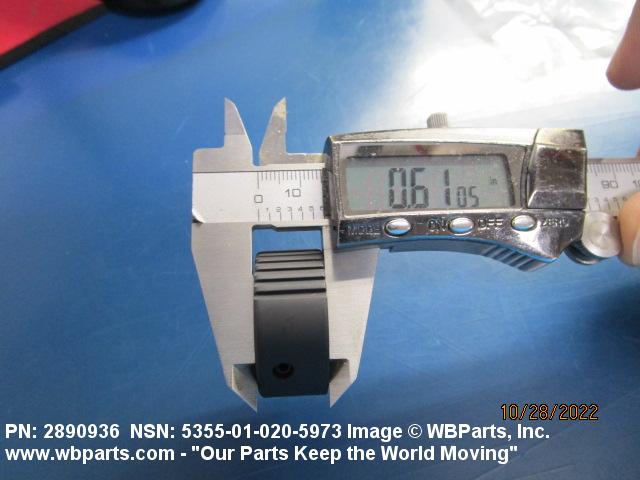

| OVERALL THICKNESS | 0.620 INCHES NOMINAL |

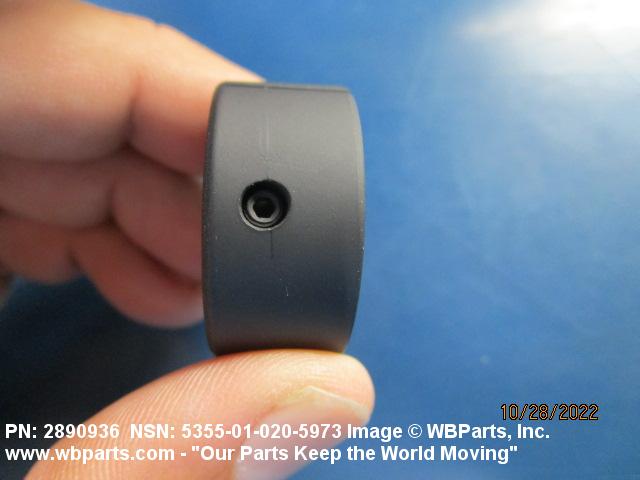

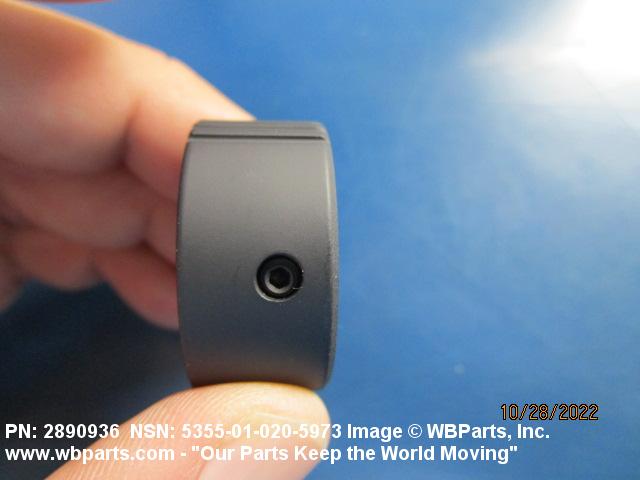

| ATTACHMENT METHOD | SETSCREWS |
| SETSCREW HOLE QUANTITY | 2 |
| SCREW DRIVE TYPE | HEXAGON SOCKET |
| DISTANCE FROM HOLE CENTER TO KNOB/SKIRT BASE | 0.380 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNC SCREW HOLE |
| NOMINAL THREAD SIZE | 0.164 INCHES SCREW HOLE |
| THREAD QUANTITY PER INCH | 32 SCREW HOLE |
| GRIPPING SURFACE CONDITION | GRIP AID |

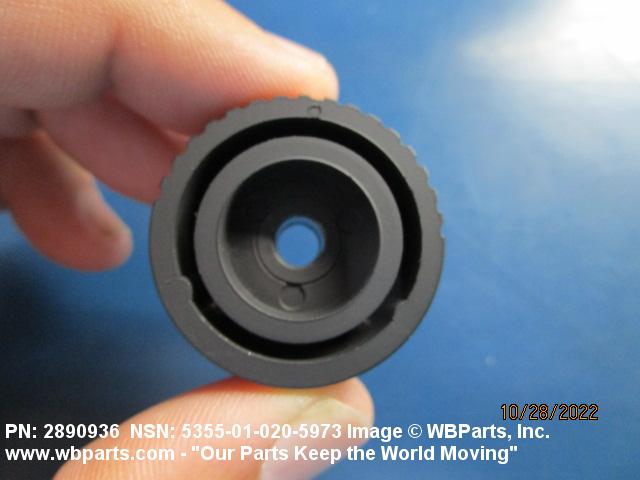

| SHAFT ACCOMMODATION STYLE | E9 ROUND |

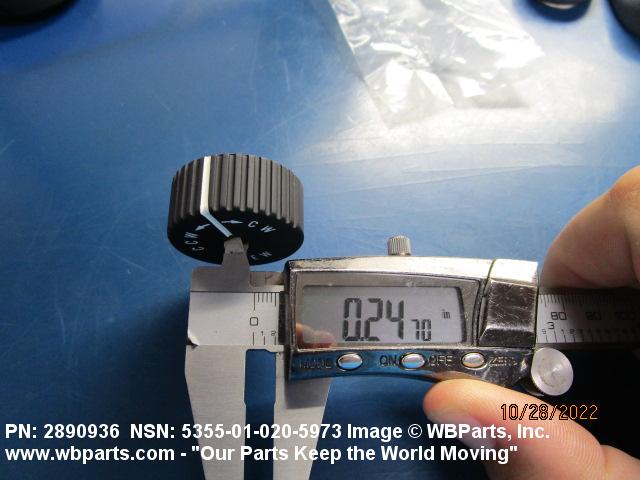

| INSIDE DIAMETER | 0.253 INCHES NOMINAL |
| OVERALL DEPTH | 0.620 INCHES NOMINAL |
| MATERIAL | PLASTIC POLYCARBONATE |
| COLOR | BLACK |

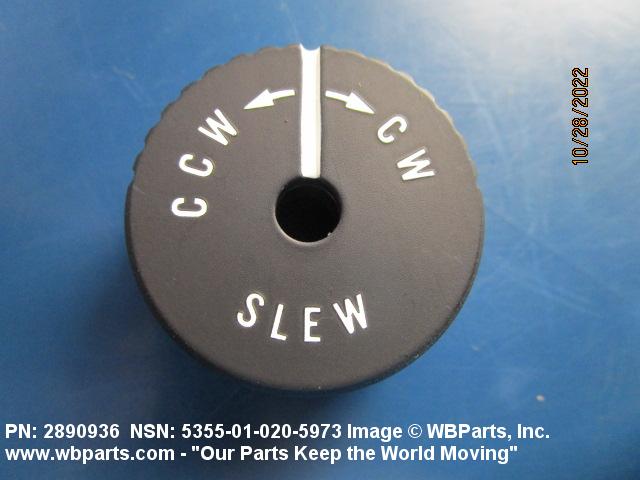

| REFERENCE MARKING | LINE |
| (NON-CORE DATA) SURFACE LUSTER | MATTE |
| (NON-CORE DATA) SURFACE TREATMENT | PASSIVATE |
| MANUFACTURERS CODE | 15090 |
| DESIGN CONTROL REFERENCE | 2890936 |
Restrictions/Controls & Freight Information | NSN 5355-01-020-5973
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 108590 | KNOBS/PULLS DOOR/DRAWER NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5355-01-020-5973
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
