NSN 5355-01-076-6426 89-3151-101, 01-076-6426, 893151101
Product Details | KNOB
5355-01-076-6426 An item designed to transmit manual, rotary or linear motion to other devices. May include detachable or nondetachable stud (shaft), pointer, or skirt. It may have reference markings in the form of dots, arrows, hairlines, and/or symbols which may be used in conjunction with a calibrated panel, vernier indicator, and the like to indicate the position or motion of items. For items having spokes or simulated spokes radiating from near the center to near the outside rim of the item and relatively thin round disk-shaped items 3 inches (76.2 mm) in diameter or over, see HANDWHEEL. For items calibrated in units or series of divisions to denote relative positioning of devices see DIAL, CONTROL. Excludes DOORKNOB; and HANDLE (as modified).20210050018Guns, through 30mm53550018Knobs and Pointers
Part Alternates: 89-3151-101, 5355-01-076-6426, 01-076-6426, 5355010766426, 893151101, 010766426
Hardware and Abrasives | Knobs and Pointers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 09 MAY 1979 | 01-076-6426 | 03263 ( KNOB ) |
Drawings & Photos | NSN 5355-01-076-6426
Cross Reference | NSN 5355-01-076-6426
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 89-3151-101 | 51053 | MEGAPULSE INCORPORATED |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5355-01-076-6426
Technical Data | NSN 5355-01-076-6426
| Characteristic | Specifications |
|---|---|

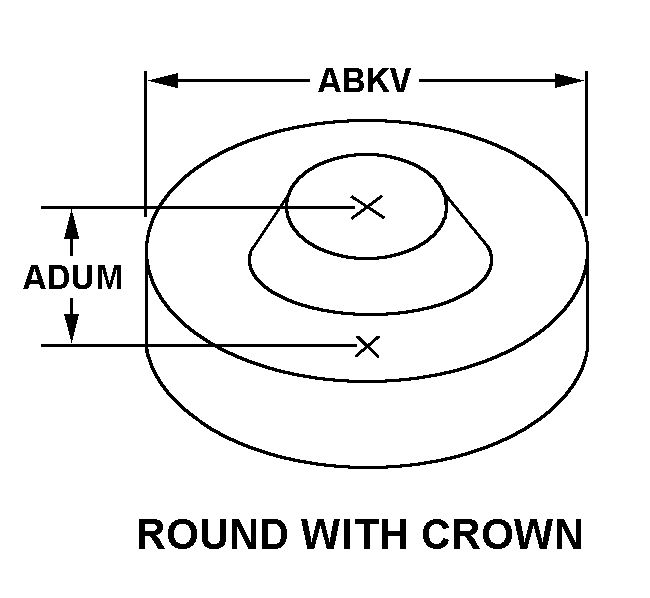

| STYLE DESIGNATOR | A41 ROUND WITH CROWN |
| OUTSIDE DIAMETER | 1.250 INCHES NOMINAL |
| OVERALL THICKNESS | 1.080 INCHES NOMINAL |
| ATTACHMENT METHOD | STUD |
| THREAD SERIES DESIGNATOR | UNF STUD |
| NOMINAL THREAD SIZE | 0.625 INCHES STUD |
| THREAD QUANTITY PER INCH | 18 STUD |
| GRIPPING SURFACE CONDITION | GRIP AID |
| MATERIAL | ALUMINUM ALLOY 6061 |
| REFERENCE MARKING | CALIBRATION |
| (NON-CORE DATA) SURFACE LUSTER | GLOSS |
| (NON-CORE DATA) MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225/8,T6 FED SPEC SINGLE MATERIAL RESPONSE |
| MANUFACTURERS CODE | 51053 |
| DESIGN CONTROL REFERENCE | 89-3151-101 |
Restrictions/Controls & Freight Information | NSN 5355-01-076-6426
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5355-01-076-6426
Coast Guard| Category | Code | Description |
|---|---|---|
| Inventory Account Codes | S | Stock Fund item managed for the Coast Guard by the respective Inventory Control Point. A funded requisition is required |
| Inventory Account Codes | 0 | Item not controlled by serial number. |
| Special Material Content Codes | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | ZNC | Commanding Officer USCG Surface Force Logistics Center Code 028, Mil Stop 25 2401 Hawkins Point Road Baltimore, MD 21226-5000 |
| Agency | GP | U.S. Coast Guard |
| Service Organization | C | U.S. Coast Guard |
| Reparability | C | |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
