NSN 5355-01-171-9434 MSC490101, MSC490-101, 7164221
Product Details | KNOB
5355-01-171-9434 An item designed to transmit manual, rotary or linear motion to other devices. May include detachable or nondetachable stud (shaft), pointer, or skirt. It may have reference markings in the form of dots, arrows, hairlines, and/or symbols which may be used in conjunction with a calibrated panel, vernier indicator, and the like to indicate the position or motion of items. For items having spokes or simulated spokes radiating from near the center to near the outside rim of the item and relatively thin round disk-shaped items 3 inches (76.2 mm) in diameter or over, see HANDWHEEL. For items calibrated in units or series of divisions to denote relative positioning of devices see DIAL, CONTROL. Excludes DOORKNOB; and HANDLE (as modified).20210050018Guns, through 30mm53550018Knobs and Pointers
Part Alternates: MSC490101, MSC490-101, 7164221, 716422-1, 5355-01-171-9434, 01-171-9434, 5355011719434, 011719434
Hardware and Abrasives | Knobs and Pointers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 15 FEB 1984 | 01-171-9434 | 03263 ( KNOB ) |
Drawings & Photos | NSN 5355-01-171-9434
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5355-01-171-9434
Technical Data | NSN 5355-01-171-9434
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A31 ROUND WITH FLUTED FOILS |
| OUTSIDE DIAMETER | 1.500 INCHES NOMINAL |
| OVERALL THICKNESS | 0.844 INCHES NOMINAL |
| FLUTED FOIL QUANTITY | 12 |
| ATTACHMENT METHOD | SETSCREWS |
| SETSCREW HOLE QUANTITY | 2 |
| SCREW DRIVE TYPE | SLOT |
| DISTANCE FROM HOLE CENTER TO KNOB/SKIRT BASE | 0.310 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNC SCREW HOLE |
| NOMINAL THREAD SIZE | 0.138 INCHES SCREW HOLE |
| THREAD QUANTITY PER INCH | 32 SCREW HOLE |
| GRIPPING SURFACE CONDITION | GRIP AID |

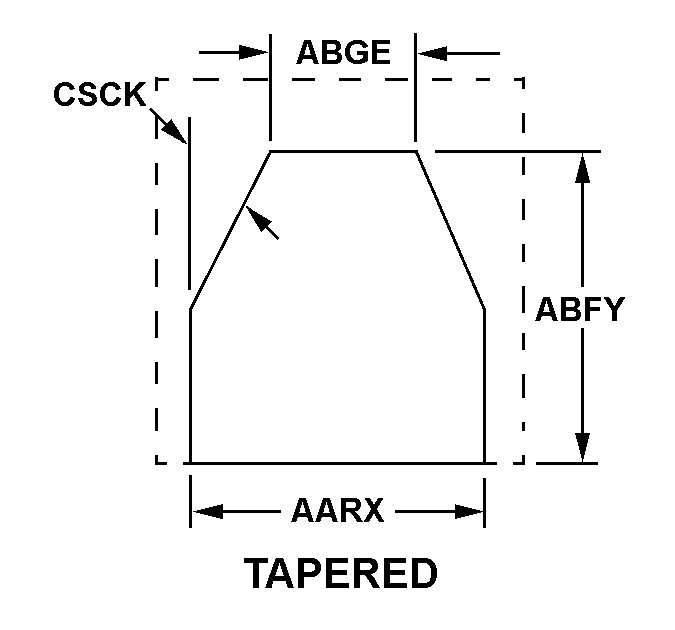

| SHAFT ACCOMMODATION STYLE | E19 TAPERED |
| INSIDE DIAMETER | 0.385 INCHES NOMINAL |
| OVERALL DEPTH | 0.750 INCHES MAXIMUM |
| TAPERED END MINOR DIAMETER | 0.190 INCHES MINIMUM AND 0.192 INCHES MAXIMUM |
| (NON-CORE DATA) SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-N-290 FED SPEC SINGLE TREATMENT RESPONSE |
| (NON-CORE DATA) MATERIAL DOCUMENT AND CLASSIFICATION | L-P-393 FED SPEC 1ST MATERIAL RESPONSE QQ-B-626 FED SPEC 2ND MATERIAL RESPONSE |
| (NON-CORE DATA) SURFACE TREATMENT | NICKEL |
| MANUFACTURERS CODE | 81590 |
| DESIGN CONTROL REFERENCE | MSC490-101 |
Restrictions/Controls & Freight Information | NSN 5355-01-171-9434
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
