NSN 5355-01-194-9644 PTE703S2G, PTE70-3S-2G, 228626G2
Product Details | KNOB
5355-01-194-9644 An item designed to transmit manual, rotary or linear motion to other devices. May include detachable or nondetachable stud (shaft), pointer, or skirt. It may have reference markings in the form of dots, arrows, hairlines, and/or symbols which may be used in conjunction with a calibrated panel, vernier indicator, and the like to indicate the position or motion of items. For items having spokes or simulated spokes radiating from near the center to near the outside rim of the item and relatively thin round disk-shaped items 3 inches (76.2 mm) in diameter or over, see HANDWHEEL. For items calibrated in units or series of divisions to denote relative positioning of devices see DIAL, CONTROL. Excludes DOORKNOB; and HANDLE (as modified).20210050018Guns, through 30mm53550018Knobs and Pointers
Part Alternates: PTE703S2G, PTE70-3S-2G, 228626G2, 26675363, 2667-5363, 5355-01-194-9644, 01-194-9644, 5355011949644, 011949644
Hardware and Abrasives | Knobs and Pointers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 20 NOV 1984 | 01-194-9644 | 03263 ( KNOB ) |
Drawings & Photos | NSN 5355-01-194-9644
Cross Reference | NSN 5355-01-194-9644
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5355-01-194-9644
Technical Data | NSN 5355-01-194-9644
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A4 ROUND |
| OUTSIDE DIAMETER | 0.688 INCHES NOMINAL |
| OVERALL THICKNESS | 0.812 INCHES NOMINAL |
| ATTACHMENT METHOD | SETSCREWS |
| SETSCREW HOLE QUANTITY | 2 |
| SCREW DRIVE TYPE | HEXAGON SOCKET |
| DISTANCE FROM HOLE CENTER TO KNOB/SKIRT BASE | 0.281 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNC SCREW HOLE |
| NOMINAL THREAD SIZE | 0.112 INCHES SCREW HOLE |
| THREAD QUANTITY PER INCH | 40 SCREW HOLE |
| GRIPPING SURFACE CONDITION | GRIP AID |

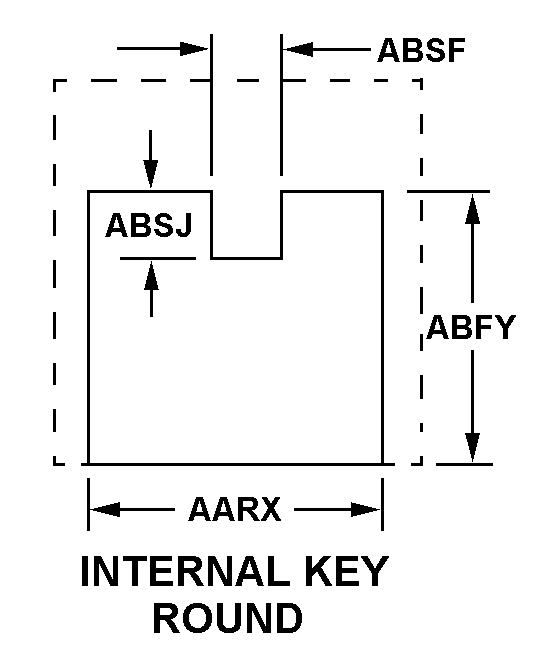

| SHAFT ACCOMMODATION STYLE | E20 INTERNAL KEY ROUND |
| INSIDE DIAMETER | 0.250 INCHES NOMINAL |
| OVERALL DEPTH | 0.625 INCHES NOMINAL |
| KEY WIDTH | 0.063 INCHES NOMINAL |
| KEY DEPTH | 0.125 INCHES NOMINAL |
| SKIRT DESIGN | NONDETACHABLE |
| SKIRT STYLE | F1 FLARED |
| SKIRT OUTSIDE DIAMETER | 1.125 INCHES NOMINAL |
| POINTER DESIGN | NONDETACHABLE |
| MATERIAL | PLASTIC |
| COLOR | BLACK |
| REFERENCE MARKING | PUSH TO TURN |
| SPECIAL FEATURES | POINTER SLOT IN SKIRT |
| (NON-CORE DATA) POINTER OVERALL LENGTH | 0.125 INCHES NOMINAL |
| (NON-CORE DATA) DISTANCE TO POINTER END | 0.562 INCHES NOMINAL |
| MANUFACTURERS CODE | 3B150 |
| DESIGN CONTROL REFERENCE | 228626G2 |
Restrictions/Controls & Freight Information | NSN 5355-01-194-9644
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
