NSN 5355-01-320-6242 1922074010, 192-2074-010, 01-320-6242
Product Details | DIAL WINDOW
5355-01-320-6242 A piece of transparent material specifically designed to be placed directly in front of a dial or scale to protect it from foreign matter. It is cut to size and may include a frame. It may have an index line or other marking. See also WINDOW, OBSERVATION; and DIAL, SCALE.
Part Alternates: 1922074010, 192-2074-010, 5355-01-320-6242, 01-320-6242, 5355013206242, 013206242
Hardware and Abrasives | Knobs and Pointers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 29 MAY 1990 | 01-320-6242 | 08194 ( WINDOW, DIAL ) |
Drawings & Photos | NSN 5355-01-320-6242
Cross Reference | NSN 5355-01-320-6242
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 192-2074-010 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5355-01-320-6242
Technical Data | NSN 5355-01-320-6242
| Characteristic | Specifications |
|---|---|
| MATERIAL | GLASS |

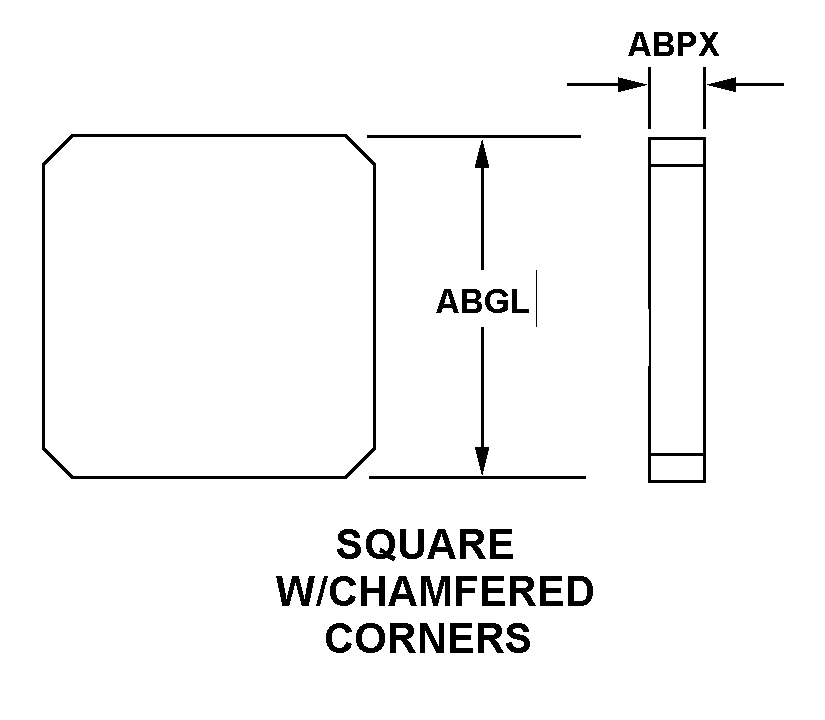

| STYLE DESIGNATOR | A172 SQUARE W/CHAMFERED CORNERS |
| WIDTH | 3.046 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.150 INCHES MAXIMUM |
| ATTACHMENT METHOD | BAYONET GROOVES AND CENTER HOLE |
| MATERIAL TRANSPARENCY | CLEAR |
| SPECIAL FEATURES | WEDGE SHAPE THICKNESS; TWO MOUNTING HOLES 0.266 IN. DIA.; PAINTED INSIDE DIA. OF HOLES AND OUTSIDE EDGES BLACK COLOR |
| MANUFACTURERS CODE | 13499 |
| DESIGN CONTROL REFERENCE | 192-2074-010 |
Restrictions/Controls & Freight Information | NSN 5355-01-320-6242
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5355-01-320-6242
Coast Guard| Category | Code | Description |
|---|---|---|
| Inventory Account Codes | A | Appropriations Purchase Account item managed for the Coast Guard by the respective Inventory Control Point. An unfunded requisition is required. |
| Inventory Account Codes | 0 | Item not controlled by serial number. |
| Special Material Content Codes | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | ZQC | Commanding Officer Department of Homeland Security USCG Aviation Logistics Center 1664 Weeksville Road Elizabeth City, NC 27909 |
| Agency | GP | U.S. Coast Guard |
| Service Organization | C | U.S. Coast Guard |
| Reparability | C | |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
