NSN 5360-00-080-2768 PDG90025001, PDG90025-001, 175368
Product Details | TORSION HELICAL SPRING
5360-00-080-2768 An open-or close-wound coil spring consisting of one or more helical coils, wound from different shapes and types of material and finished at the ends, designed to exert pressure in a rotating direction around the coil axis. Excludes springs designed for thermal actuation (springs in which the torsion forces are counteracted by changes in temperature) and SPRING, REINFORCING, HOSE.20210050018Guns, through 30mm53600034Coil, Flat, Leaf, and Wire Springs
Part Alternates: PDG90025001, PDG90025-001, 175368, 5360-00-080-2768, 00-080-2768, 5360000802768, 000802768
Hardware and Abrasives | Coil, Flat, Leaf, and Wire Springs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 06 DEC 1967 | 00-080-2768 | 04228 ( SPRING, HELICAL, TORSION ) |
Drawings & Photos | NSN 5360-00-080-2768
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5360-00-080-2768
Technical Data | NSN 5360-00-080-2768
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | C1A SINGLE TORSION LEFT HAND |
| INSIDE DIAMETER | 0.598 INCHES MINIMUM AND 0.599 INCHES MAXIMUM |
| SPRING FREE LENGTH | 1.830 INCHES NOMINAL |
| SPRING FREE OUTSIDE DIAMETER | 0.850 INCHES MINIMUM AND 0.851 INCHES MAXIMUM |
| END LENGTH | 0.090 INCHES NOMINAL BOTH ENDS |

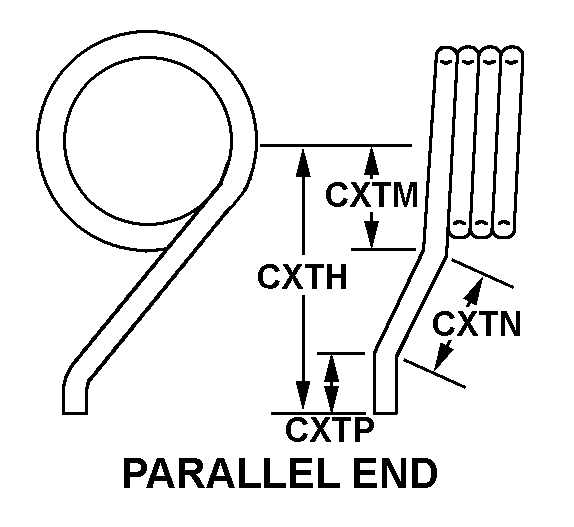

| END STYLE | G45 PARALLEL END OVERALL |
