NSN 5360-00-200-6750 24021001378402ALTAPC19, 240-2100-1378402ALTAPC19, 3402100999923PC19
Product Details | EXTENSION HELICAL SPRING
5360-00-200-6750 An open-or close-coiled spring, wound in various forms and from different shapes and types of materials and finished at the ends, so designed to provide resistance to pulling forces. The close-coiled springs may incorporate the special feature of initial tension created between the coils when wound so that an initial load must be applied to separate them. Excludes SPRING, REINFORCING, HOSE.20210050018Guns, through 30mm53600034Coil, Flat, Leaf, and Wire Springs
Part Alternates: 24021001378402ALTAPC19, 240-2100-1378402ALTAPC19, 3402100999923PC19, 340-2100-999923PC19, 3668153REVAPC17, 3668-153REVAPC17, 3686709805449REVAPC19, 368-6709-805449REVAPC19, 3768121REVAPC17, 3768-121REVAPC17, 386861PC19, 3868-61PC19, 57121001302412REVAPC17, 571-2100-1302412REVAPC17, 57521001443900REVAPC17, 575-2100-1443900REVAPC17, 9968336ALTAPC19, 9968-336ALTAPC19, 5360-00-200-6750, 00-200-6750, 5360002006750, 002006750
Hardware and Abrasives | Coil, Flat, Leaf, and Wire Springs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-200-6750 | 04227 ( SPRING, HELICAL, EXTENSION ) |
Drawings & Photos | NSN 5360-00-200-6750
Cross Reference | NSN 5360-00-200-6750
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 240-2100-1378402ALTAPC19 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 340-2100-999923PC19 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 3668-153REVAPC17 | 96169 | ELECTRIC BOAT CORPORATION |
| 368-6709-805449REVAPC19 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 3768-121REVAPC17 | 96169 | ELECTRIC BOAT CORPORATION |
| 3868-61PC19 | 96169 | ELECTRIC BOAT CORPORATION |
| 571-2100-1302412REVAPC17 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 575-2100-1443900REVAPC17 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 9968-336ALTAPC19 | 96169 | ELECTRIC BOAT CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5360-00-200-6750
Technical Data | NSN 5360-00-200-6750
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | JAN-S-1160,GRADE 1,TYPE A-CANCELED MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | B1 CYLINDRICAL |
| INSIDE DIAMETER | 0.445 INCHES NOMINAL |
| SPRING FREE LENGTH | 1.774 INCHES NOMINAL |
| SPRING FREE OUTSIDE DIAMETER | 0.625 INCHES NOMINAL |
| COIL TO HOOK INSIDE LENGTH | 0.406 INCHES NOMINAL FIRST END 0.438 INCHES NOMINAL SECOND END |
| HOOK RADIUS | 0.094 INCHES NOMINAL FIRST END 0.219 INCHES NOMINAL SECOND END |

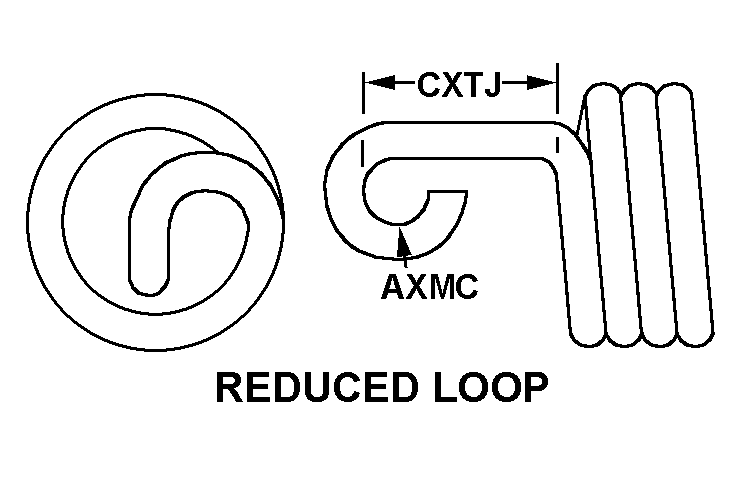

| END STYLE | F29 REDUCED LOOP FIRST END F47 MACHINE LOOP SECOND END |
| COIL HELIX DIRECTION | RIGHT-HAND |
| LOAD RATING | 21.00 POUNDS NOMINAL |
| COIL QUANTITY | 7 |
| DESIGN TYPE | CLOSED |
| SPRING LENGTH UNDER LOAD | 3.250 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5360-00-200-6750
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 177940 | SPRINGS:SPRINGS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 579 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5360-00-200-6750
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | X | SEMIACTIVE ITEM-NO REPLACEMENT (NON-STOCKED ITEMS) A potentially inactive NSN which must be retained in the supply system as an item of supply because (1) stocks of the item are on hand or in use below the wholesale level and (2) the NSN is cited in equipment authorization documents TO & E, TA, TM, etc., or in-use assets are being reported. 1. Items are authorized for central procurement but not authorized for stockage at wholesale level. 2. Requisitions for in-use replacement will be authorized in accordance with individual Military Service directives. 3. Requisitions may be submitted as requirements generate. Repetitive demands may dictate an AAC change to permit wholesale stockage. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
