NSN 5360-00-290-5423 234735, 00-290-5423, 002905423
Product Details | EXTENSION HELICAL SPRING
5360-00-290-5423 An open-or close-coiled spring, wound in various forms and from different shapes and types of materials and finished at the ends, so designed to provide resistance to pulling forces. The close-coiled springs may incorporate the special feature of initial tension created between the coils when wound so that an initial load must be applied to separate them. Excludes SPRING, REINFORCING, HOSE.20210050018Guns, through 30mm53600034Coil, Flat, Leaf, and Wire Springs
Part Alternates: 234735, 5360-00-290-5423, 00-290-5423, 5360002905423, 002905423
Hardware and Abrasives | Coil, Flat, Leaf, and Wire Springs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-290-5423 | 04227 ( SPRING, HELICAL, EXTENSION ) |
Drawings & Photos | NSN 5360-00-290-5423
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5360-00-290-5423
Technical Data | NSN 5360-00-290-5423
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-W-423 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | B1 CYLINDRICAL |
| INSIDE DIAMETER | 0.140 INCHES NOMINAL |
| SPRING FREE OUTSIDE DIAMETER | 0.176 INCHES NOMINAL |

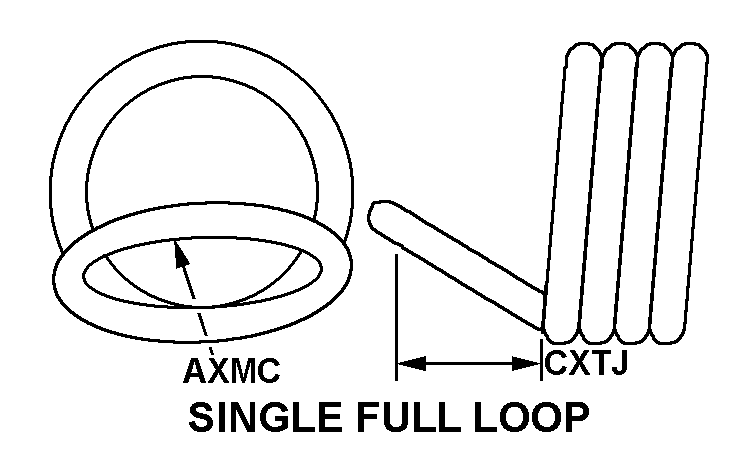

| END STYLE | F45 SINGLE FULL LOOP BOTH ENDS |
| COIL HELIX DIRECTION | RIGHT-HAND |
| LOAD RATING | 1.250 POUNDS NOMINAL |
| COIL QUANTITY | 13 |
| DESIGN TYPE | CLOSED |
| SPRING LENGTH UNDER LOAD | 0.750 INCHES NOMINAL |
| MANUFACTURERS CODE | 36378 |
| DESIGN CONTROL REFERENCE | 234735 |
Restrictions/Controls & Freight Information | NSN 5360-00-290-5423
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
