NSN 5360-00-292-1337 460778, 460-778, 00-292-1337
Product Details | EXTENSION HELICAL SPRING
5360-00-292-1337 An open-or close-coiled spring, wound in various forms and from different shapes and types of materials and finished at the ends, so designed to provide resistance to pulling forces. The close-coiled springs may incorporate the special feature of initial tension created between the coils when wound so that an initial load must be applied to separate them. Excludes SPRING, REINFORCING, HOSE.20210050018Guns, through 30mm53600034Coil, Flat, Leaf, and Wire Springs
Part Alternates: 460778, 460-778, 5360-00-292-1337, 00-292-1337, 5360002921337, 002921337
Hardware and Abrasives | Coil, Flat, Leaf, and Wire Springs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-292-1337 | 04227 ( SPRING, HELICAL, EXTENSION ) |
Drawings & Photos | NSN 5360-00-292-1337
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5360-00-292-1337
Technical Data | NSN 5360-00-292-1337
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-W-6101 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | SILVER OVERALL |
| STYLE DESIGNATOR | B1 CYLINDRICAL |
| INSIDE DIAMETER | 0.101 INCHES MINIMUM AND 0.105 INCHES MAXIMUM |
| SPRING FREE LENGTH | 5.520 INCHES MINIMUM AND 5.522 INCHES MAXIMUM |
| SPRING FREE OUTSIDE DIAMETER | 0.125 INCHES NOMINAL |
| HOOK RADIUS | 0.186 INCHES NOMINAL BOTH ENDS |

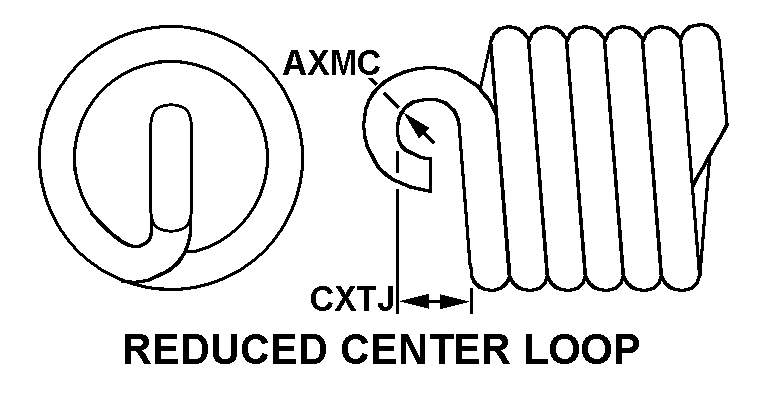

| END STYLE | F5 REDUCED CENTER LOOP BOTH ENDS |
| COIL HELIX DIRECTION | RIGHT-HAND |
| COIL QUANTITY | 144 |
| DESIGN TYPE | CLOSED |
| MANUFACTURERS CODE | 15280 |
| DESIGN CONTROL REFERENCE | 460-778 |
Restrictions/Controls & Freight Information | NSN 5360-00-292-1337
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
