Product Details | TORSION HELICAL SPRING
5360-00-318-8198 An open-or close-wound coil spring consisting of one or more helical coils, wound from different shapes and types of material and finished at the ends, designed to exert pressure in a rotating direction around the coil axis. Excludes springs designed for thermal actuation (springs in which the torsion forces are counteracted by changes in temperature) and SPRING, REINFORCING, HOSE.20210050018Guns, through 30mm53600034Coil, Flat, Leaf, and Wire Springs
Part Alternates: 8677114, 5360-00-318-8198, 00-318-8198, 5360003188198, 003188198
Hardware and Abrasives | Coil, Flat, Leaf, and Wire Springs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-318-8198 | 04228 ( SPRING, HELICAL, TORSION ) |
Drawings & Photos | NSN 5360-00-318-8198
Demand History | NSN 5360-00-318-8198
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5360-00-318-8198 | 2015-02-44 | 1 | DIBBS |
| 5360-00-318-8198 | 2015-02-33 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5360-00-318-8198
Related Products | NSN 5360-00-318-8198
Technical Data | NSN 5360-00-318-8198
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 302 OR STEEL COMP 304 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-W-423,COND B FED SPEC SINGLE MATERIAL RESPONSE OVERALL |

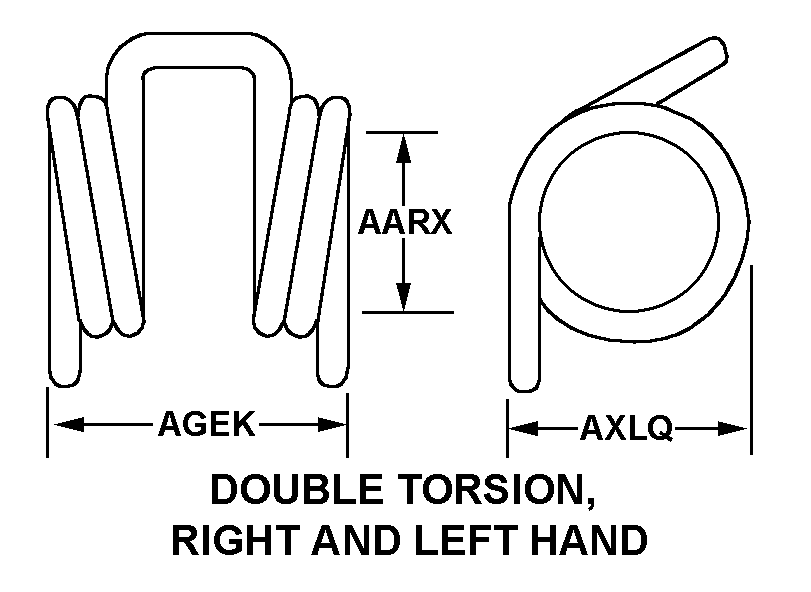

| STYLE DESIGNATOR | C2A DOUBLE TORSION RIGHT AND LEFT HAND |
| INSIDE DIAMETER | 0.230 INCHES NOMINAL |
| SPRING FREE LENGTH | 0.2905 INCHES NOMINAL |
| SPRING FREE OUTSIDE DIAMETER | 0.268 INCHES NOMINAL |
| HOOK RADIUS | 0.031 INCHES NOMINAL BOTH ENDS |
| END LENGTH | 0.188 INCHES NOMINAL BOTH ENDS |
| HOOK LEG LENGTH | 0.050 INCHES NOMINAL BOTH ENDS |
| CENTER SECTION WIDTH | 0.1005 INCHES NOMINAL |
| COIL AXIS TO CENTER SECTION DISTANCE | 0.418 INCHES MINIMUM AND 0.481 INCHES MAXIMUM |
| CENTER LOOP RADIUS | 0.031 INCHES NOMINAL |
| END STYLE | G18 OFFSET HALF LOOP, LEFT END BOTH ENDS |
| COIL HELIX DIRECTION | RIGHT-HAND OR LEFT-HAND |
| STOCK DIAMETER | 0.019 INCHES NOMINAL |
| CENTER STYLE | K4 U TYPE |
| COIL QUANTITY | 5-1/2 |
| END ANGULAR RELATIONSHIP | END W/LH HELIX OF COIL PARALLEL TO CENTER SECTION AND END W/RH HELIX OF COIL PARALLEL TO CENTER SECTION |
