NSN 5360-00-329-4308 MS219646, MS21964-6, M7560/1-6
Product Details | COMPRESSION HELICAL SPRING
5360-00-329-4308 An open coiled spring, wound in various forms and from different shapes and types of materials and finished at the ends, designed to provide resistance to compression forces. Excludes springs designed for thermal actuation (springs in which the torsion forces are designed to be counteracted by changes in temperature) and SPRING, REINFORCING, HOSE.20210050018Guns, through 30mm53600034Coil, Flat, Leaf, and Wire Springs
Part Alternates: MS219646, MS21964-6, M7560/1-6, M756016, MILDTL7560, MIL-DTL-7560, MILV7560, MIL-V-7560, 1276, 2956, 295-6, 295A6, 437139, 4371-39, 44A25094, 5360-00-329-4308, 00-329-4308, 5360003294308, 003294308
Hardware and Abrasives | Coil, Flat, Leaf, and Wire Springs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-329-4308 | 04226 ( SPRING, HELICAL, COMPRESSION ) |

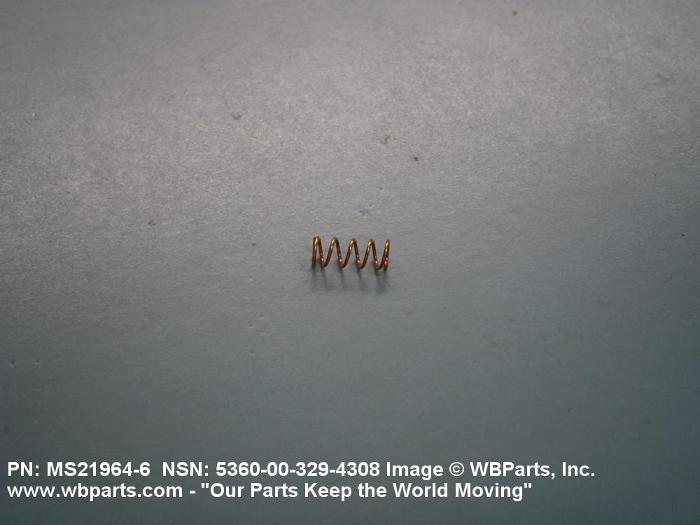

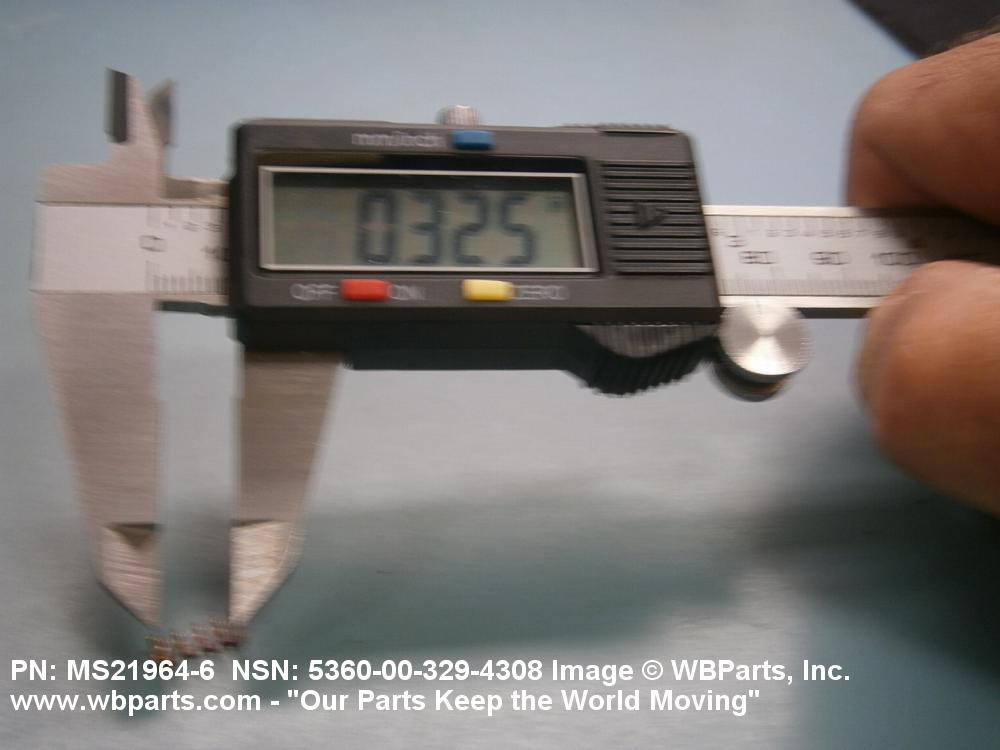

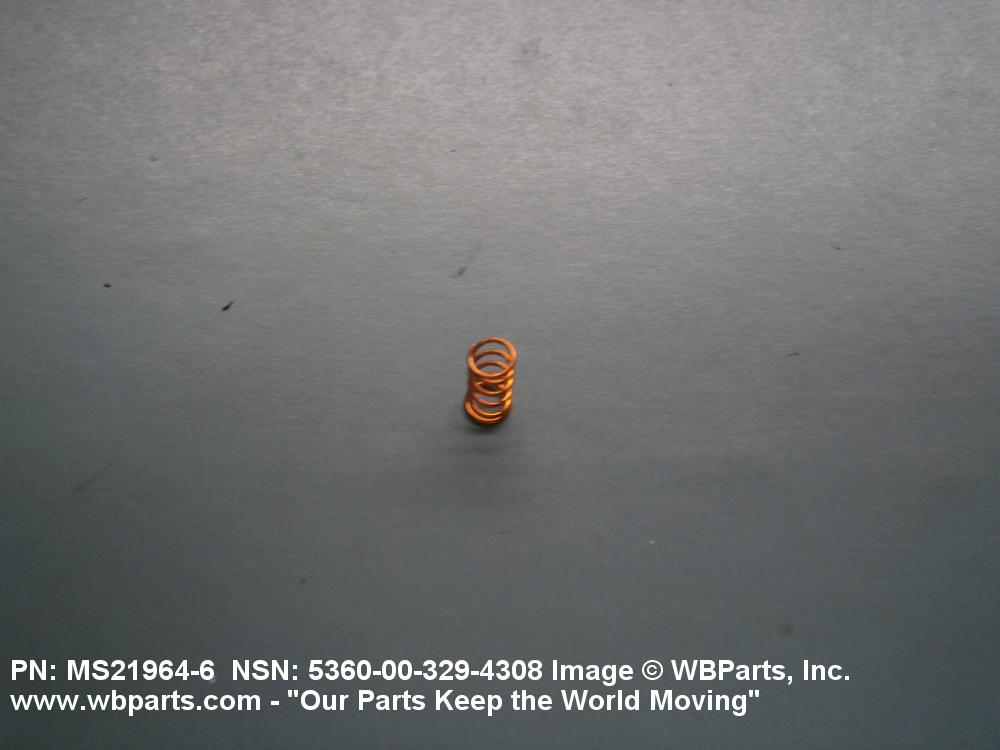

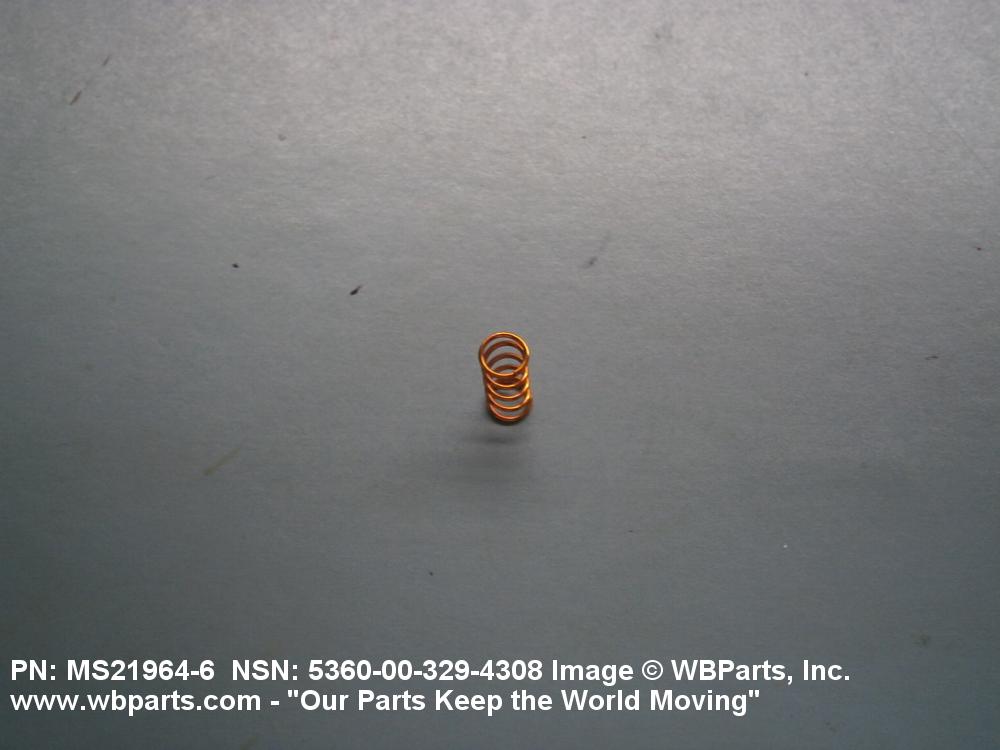

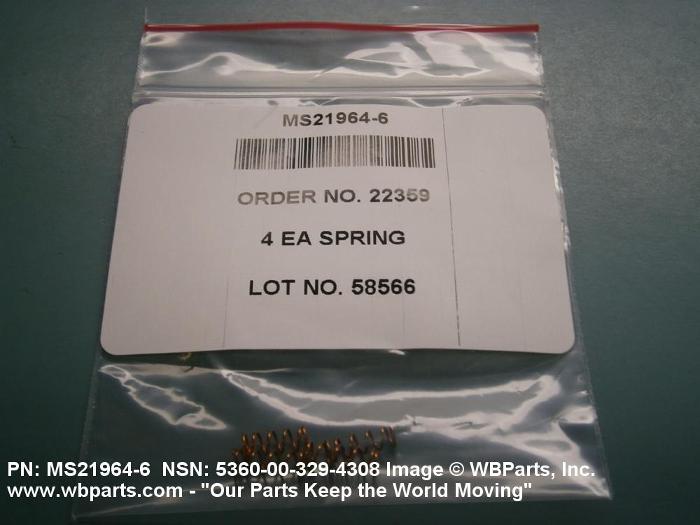

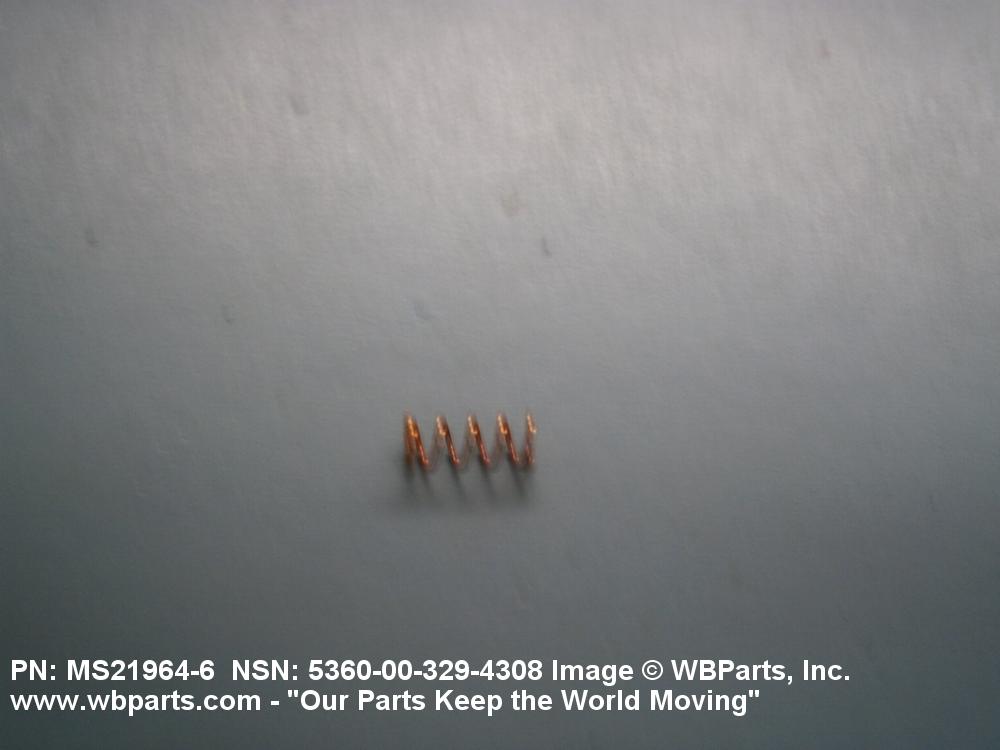

Drawings & Photos | NSN 5360-00-329-4308
Demand History | NSN 5360-00-329-4308
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS219646 | 2022-09-263 | 10 | Indonesia |
| 1276 | 2022-06-180 | 1 | US |
| 5360-00-329-4308 | 2018-03-77 | 185 | DIBBS |
| MS219646 | 2013-05-121 | 4 | United States |
| MS219646 | 2012-02-48 | 22 | Singapore |
Cross Reference | NSN 5360-00-329-4308
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1276 | 99227 | FLUID POWER INC |
| 295-6 | 03WY2 | OCENCO, INCORPORATED DBA ERIE MEDICAL |
| 295A6 | 20846 | ERIE MFG CO |
| 4371-39 | 06023 | REGO CO A MARMON GROUP CO |
| 44A25094 | 80049 | DEPARTMENT OF THE AIR FORCE |
| 44A25094 | 98748 | AIR FORCE UNITED STATES DEPARTMENT OF THE |
| M7560/1-6 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-DTL-7560 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-V-7560 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS21964-6 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5360-00-329-4308
Related Products | NSN 5360-00-329-4308
Technical Data | NSN 5360-00-329-4308
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY 510 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-W-401-CANCELED FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | A1 CYLINDRICAL |
| INSIDE DIAMETER | 0.122 INCHES NOMINAL |
| SPRING FREE LENGTH | 0.375 INCHES NOMINAL |
| SPRING FREE OUTSIDE DIAMETER | 0.156 INCHES NOMINAL |
| END STYLE | E2 SQUARED BOTH ENDS |
| COIL HELIX DIRECTION | RIGHT-HAND |
| LOAD RATING | 0.500 POUNDS MINIMUM AND 1.000 POUNDS MAXIMUM |
| COIL QUANTITY | 6 |
| SPRING LENGTH UNDER LOAD | 0.250 INCHES NOMINAL |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-DTL-7560 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M7560/1-6 |
Restrictions/Controls & Freight Information | NSN 5360-00-329-4308
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 177940 | SPRINGS:SPRINGS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 579 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5360-00-329-4308
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | MH | TG:LIFE SUPPORT SYSTEM 412A |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 PG : Package |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 PG : Package |
