NSN 5360-00-414-0739 9240-001-32, 00-414-0739, 924000132
Product Details | TORSION HELICAL SPRING
5360-00-414-0739 An open-or close-wound coil spring consisting of one or more helical coils, wound from different shapes and types of material and finished at the ends, designed to exert pressure in a rotating direction around the coil axis. Excludes springs designed for thermal actuation (springs in which the torsion forces are counteracted by changes in temperature) and SPRING, REINFORCING, HOSE.20210050018Guns, through 30mm53600034Coil, Flat, Leaf, and Wire Springs
Part Alternates: 9240-001-32, 5360-00-414-0739, 00-414-0739, 5360004140739, 924000132, 004140739
Hardware and Abrasives | Coil, Flat, Leaf, and Wire Springs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 27 APR 1974 | 00-414-0739 | 04228 ( SPRING, HELICAL, TORSION ) |
Drawings & Photos | NSN 5360-00-414-0739
Demand History | NSN 5360-00-414-0739
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5360-00-414-0739 | 2013-10-288 | 5 | Taiwan |
| 5360-00-414-0739 | 2010-09-254 | 1 | DIBBS |
| 5360-00-414-0739 | 2010-08-216 | 26 | DIBBS |
| 5360-00-414-0739 | 2010-05-140 | 17 | DIBBS |
Cross Reference | NSN 5360-00-414-0739
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9240-001-32 | 06444 | SCIENTIFIC INSTRUMENTS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5360-00-414-0739
Technical Data | NSN 5360-00-414-0739
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 302 OR STEEL COMP 304 OR STEEL COMP 305 OR STEEL COMP 310 OR STEEL COMP 316 OR STEEL COMP 321 OR STEEL COMP 347 OR STEEL COMP 410 OR STEEL COMP 420 OR STEEL COMP 430 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-W-423 FED SPEC ALL MATERIAL RESPONSES OVERALL |
| SURFACE TREATMENT | NICKEL OVERALL |
| STYLE DESIGNATOR | C1B SINGLE TORSION RIGHT HAND |
| INSIDE DIAMETER | 0.076 INCHES NOMINAL |
| SPRING FREE LENGTH | 0.250 INCHES NOMINAL |
| SPRING FREE OUTSIDE DIAMETER | 0.126 INCHES NOMINAL |
| HOOK OPENING WIDTH | 0.031 INCHES NOMINAL OVERALL |
| HOOK RADIUS | 0.047 INCHES NOMINAL OVERALL |
| END LENGTH | 0.319 INCHES NOMINAL BOTH ENDS |
| CENTER SECTION WIDTH | 0.125 INCHES NOMINAL |
| COIL AXIS TO CENTER SECTION DISTANCE | 0.312 INCHES NOMINAL |
| CENTER LOOP RADIUS | 0.031 INCHES NOMINAL |
| CENTER TANGENT ANGLE | 20.0 DEGREES NOMINAL |
| END STYLE | G12 EXTENDED EYE END OVERALL |
| COIL HELIX DIRECTION | RIGHT-HAND |

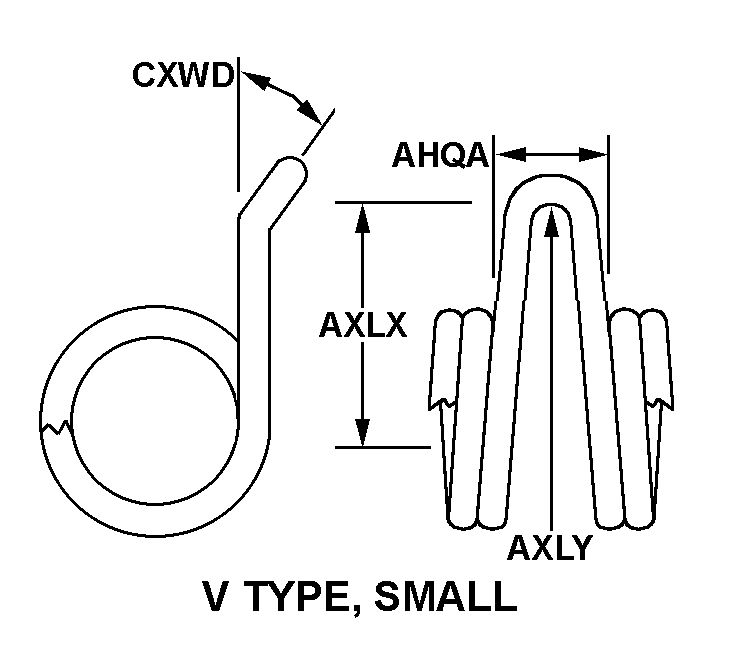

| CENTER STYLE | K1 V TYPE, SMALL |
| COIL QUANTITY | 3 |
| END ANGULAR RELATIONSHIP | ENDS PARALLEL ONE TO OTHER |
Restrictions/Controls & Freight Information | NSN 5360-00-414-0739
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 177940 | SPRINGS:SPRINGS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5360-00-414-0739
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
