Product Details | TORSION HELICAL SPRING
5360-00-425-2146 An open-or close-wound coil spring consisting of one or more helical coils, wound from different shapes and types of material and finished at the ends, designed to exert pressure in a rotating direction around the coil axis. Excludes springs designed for thermal actuation (springs in which the torsion forces are counteracted by changes in temperature) and SPRING, REINFORCING, HOSE.20210050018Guns, through 30mm53600034Coil, Flat, Leaf, and Wire Springs
Part Alternates: 2528278, 5360-00-425-2146, 00-425-2146, 5360004252146, 004252146
Hardware and Abrasives | Coil, Flat, Leaf, and Wire Springs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 21 APR 1971 | 00-425-2146 | 04228 ( SPRING, HELICAL, TORSION ) |
Drawings & Photos | NSN 5360-00-425-2146
Cross Reference | NSN 5360-00-425-2146
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2528278 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5360-00-425-2146
Technical Data | NSN 5360-00-425-2146
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL UNS K08500 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A228 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ZINC AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-Z-325,TYPE 2,CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | C1A SINGLE TORSION LEFT HAND |
| INSIDE DIAMETER | 0.806 INCHES MINIMUM AND 0.836 INCHES MAXIMUM |
| SPRING FREE LENGTH | 3.312 INCHES NOMINAL |
| SPRING FREE OUTSIDE DIAMETER | 1.114 INCHES MINIMUM AND 1.144 INCHES MAXIMUM |
| HOOK RADIUS | 0.1250 INCHES MINIMUM AND 0.1405 INCHES MAXIMUM SECOND END |
| END LENGTH | 0.781 INCHES MINIMUM AND 0.843 INCHES MAXIMUM FIRST END 0.938 INCHES MINIMUM AND 1.000 INCHES MAXIMUM SECOND END |
| END LENGTH FROM COIL AXIS TO FIRST BEND | 0.5645 INCHES NOMINAL FIRST END |
| END LENGTH FROM FIRST BEND TO SECOND BEND OR END | 0.2475 INCHES NOMINAL FIRST END |
| END LENGTH FROM SECOND BEND TO THIRD BEND OR END | 0.310 INCHES MINIMUM AND 0.372 INCHES MAXIMUM FIRST END |

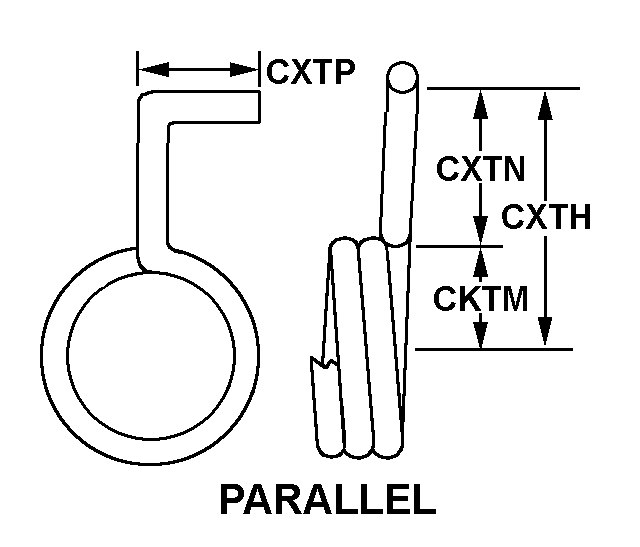

| END STYLE | G7 PARALLEL FIRST END G18 OFFSET HALF LOOP, LEFT END SECOND END |
| COIL HELIX DIRECTION | LEFT-HAND |
| STOCK DIAMETER | 0.154 INCHES NOMINAL |
| COIL QUANTITY | 20 |
| SPRING DEFLECTION RATE | 60.000 POUNDS PER INCH NOMINAL |
| END ANGULAR RELATIONSHIP | ENDS ANGLED ONE TO OTHER |
| MANUFACTURERS CODE | 10001 |
| DESIGN CONTROL REFERENCE | 2528278 |
