NSN 5360-00-561-0672 7653106, 00-561-0672, 005610672
Product Details | EXTENSION HELICAL SPRING
5360-00-561-0672 An open-or close-coiled spring, wound in various forms and from different shapes and types of materials and finished at the ends, so designed to provide resistance to pulling forces. The close-coiled springs may incorporate the special feature of initial tension created between the coils when wound so that an initial load must be applied to separate them. Excludes SPRING, REINFORCING, HOSE.20210050018Guns, through 30mm53600034Coil, Flat, Leaf, and Wire Springs
Part Alternates: 7653106, 5360-00-561-0672, 00-561-0672, 5360005610672, 005610672
Hardware and Abrasives | Coil, Flat, Leaf, and Wire Springs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-561-0672 | 04227 ( SPRING, HELICAL, EXTENSION ) |
Drawings & Photos | NSN 5360-00-561-0672
Cross Reference | NSN 5360-00-561-0672
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7653106 | 19200 | US ARMY ARDEC RDECOM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5360-00-561-0672
Technical Data | NSN 5360-00-561-0672
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL UNS K08500 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-W-470,COMP A FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | COPPER OVERALL |
| STYLE DESIGNATOR | B1 CYLINDRICAL |
| INSIDE DIAMETER | 0.303 INCHES NOMINAL |
| SPRING FREE LENGTH | 0.778 INCHES NOMINAL |
| SPRING FREE OUTSIDE DIAMETER | 0.433 INCHES NOMINAL |
| OPENING WIDTH | 0.303 INCHES NOMINAL SECOND END |
| COIL TO HOOK INSIDE LENGTH | 0.255 INCHES NOMINAL FIRST END 0.375 INCHES NOMINAL SECOND END |

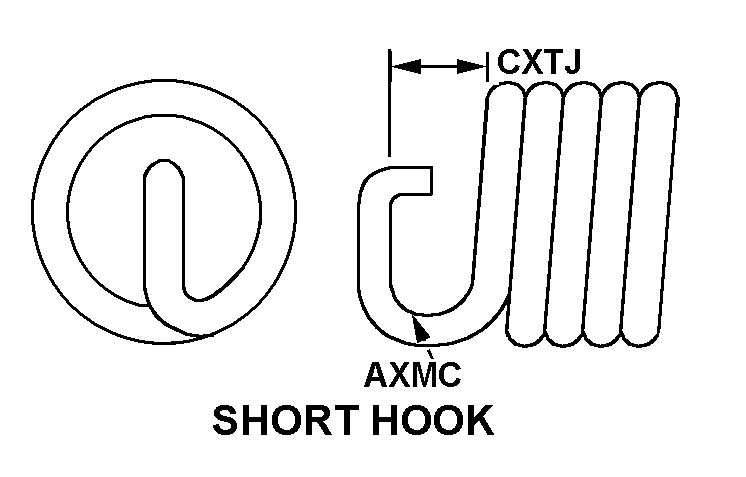

| END STYLE | F22 SHORT HOOK FIRST END F27 OFFSET HOOK, SIDE SECOND END |
| COIL HELIX DIRECTION | RIGHT-HAND OR LEFT-HAND |
| LOAD RATING | 8.600 POUNDS NOMINAL |
| COIL QUANTITY | 6 |
| DESIGN TYPE | CLOSED |
| SPRING DEFLECTION RATE | 20.000 POUNDS PER INCH NOMINAL |
| SPRING LENGTH UNDER LOAD | 0.358 INCHES NOMINAL |
| MANUFACTURERS CODE | 19200 |
| DESIGN CONTROL REFERENCE | 7653106 |
Restrictions/Controls & Freight Information | NSN 5360-00-561-0672
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 178020 | SPRINGS NOI WIRE STL |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 579 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
