NSN 5360-00-608-5060 7269086, 00-608-5060, 006085060
Product Details | COMPRESSION HELICAL SPRING
5360-00-608-5060 An open coiled spring, wound in various forms and from different shapes and types of materials and finished at the ends, designed to provide resistance to compression forces. Excludes springs designed for thermal actuation (springs in which the torsion forces are designed to be counteracted by changes in temperature) and SPRING, REINFORCING, HOSE.20210050018Guns, through 30mm53600034Coil, Flat, Leaf, and Wire Springs
Part Alternates: 7269086, 5360-00-608-5060, 00-608-5060, 5360006085060, 006085060
Hardware and Abrasives | Coil, Flat, Leaf, and Wire Springs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-608-5060 | 04226 ( SPRING, HELICAL, COMPRESSION ) |

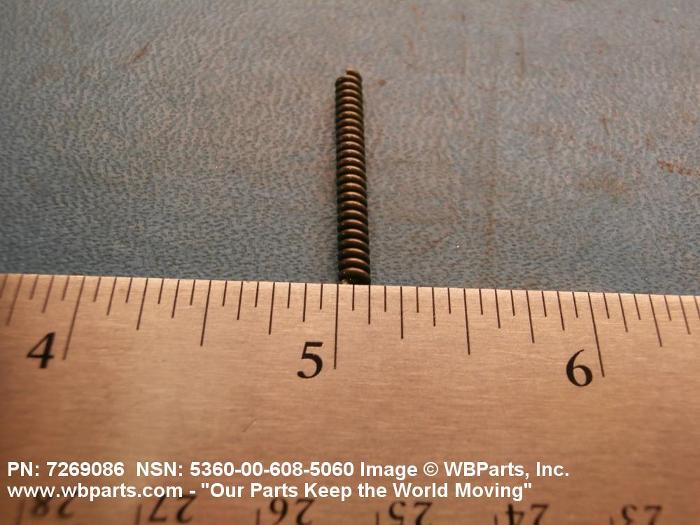

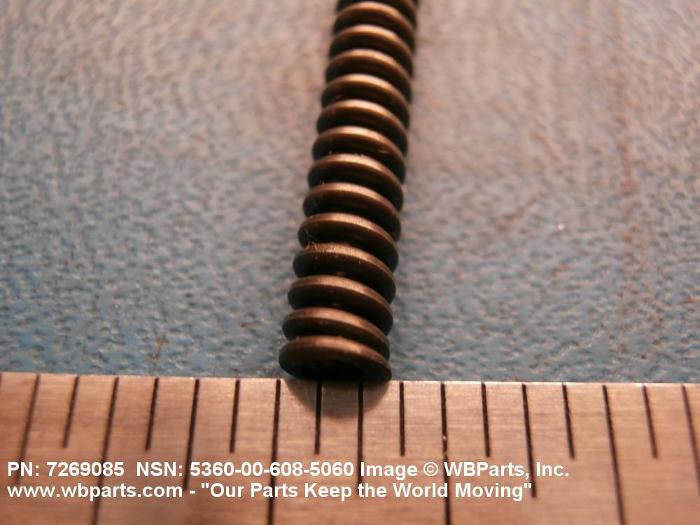

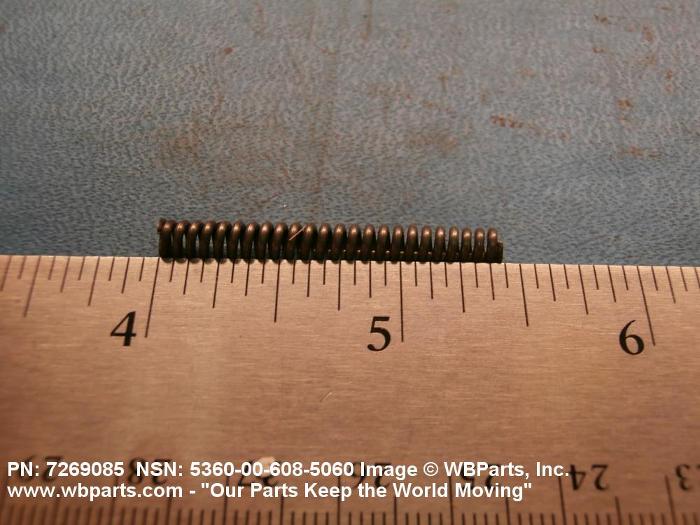

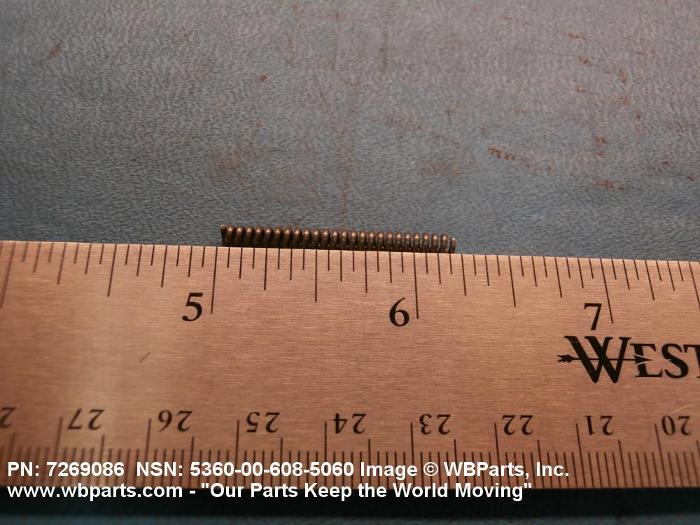

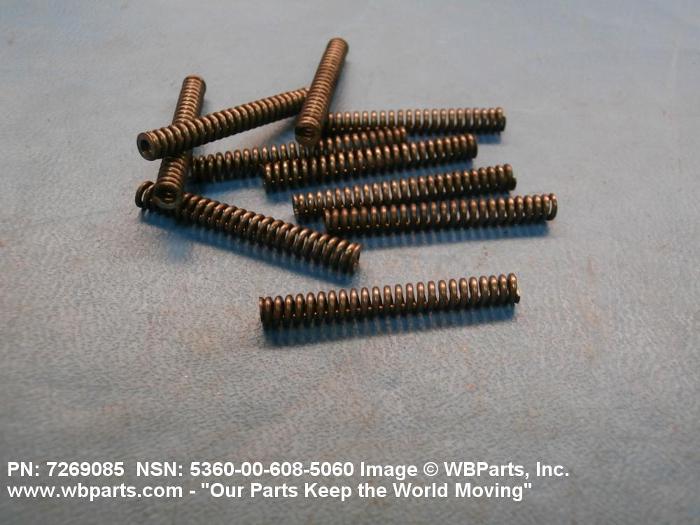

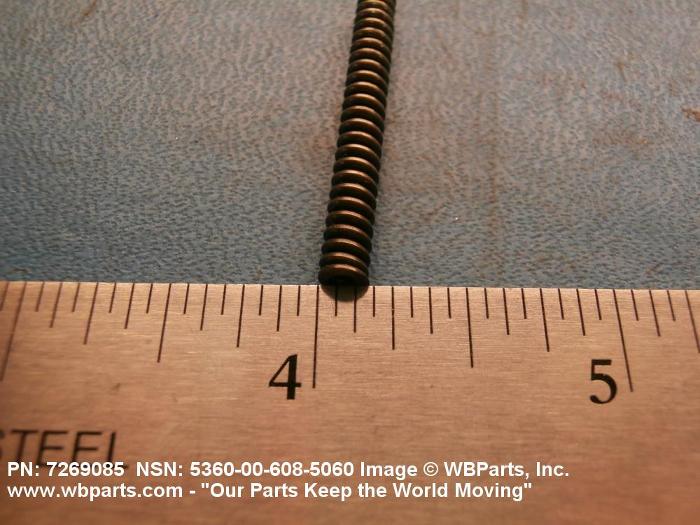

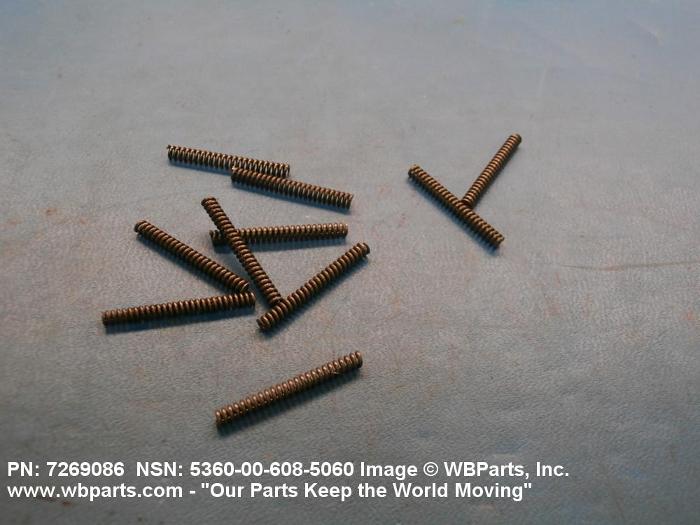

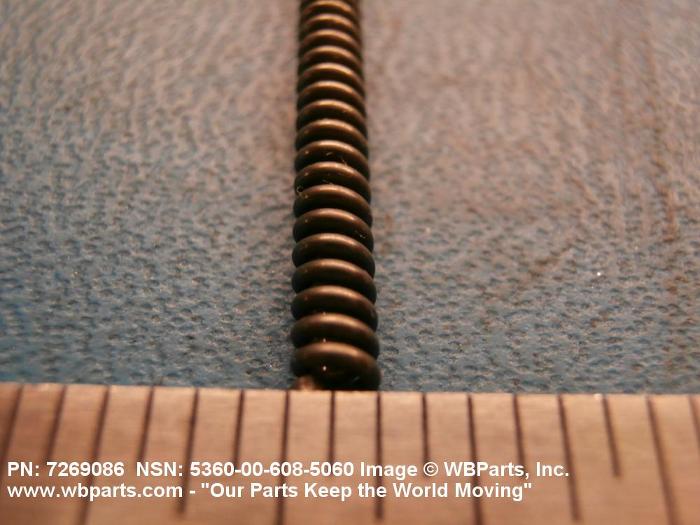

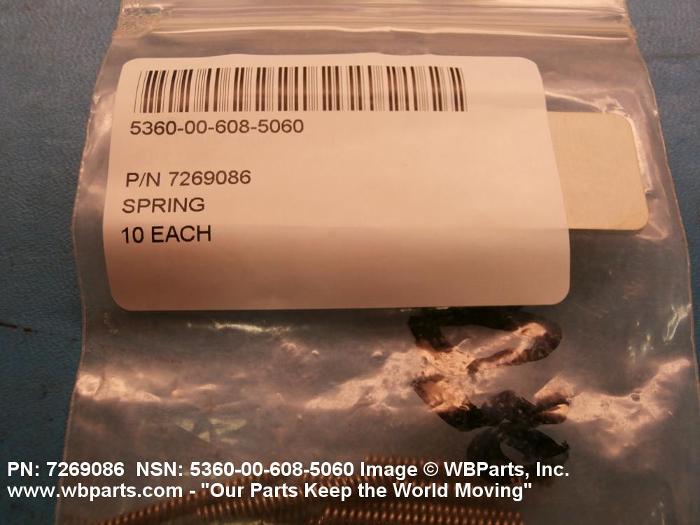

Drawings & Photos | NSN 5360-00-608-5060
Demand History | NSN 5360-00-608-5060
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5360-00-608-5060 | 2021-08-242 | 93 | KR |
| 5360-00-608-5060 | 2021-04-110 | 200 | United States |
| 5360-00-608-5060 | 2017-08-240 | 415 | KR |
| 7269086 | 2013-01-09 | 10 | Colombia |
| 7269086 | 2012-10-297 | 10 | CO |
| 5360-00-608-5060 | 2011-09-264 | 6 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5360-00-608-5060
Technical Data | NSN 5360-00-608-5060
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL UNS K08500 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-W-470 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | A1 CYLINDRICAL |
| INSIDE DIAMETER | 0.068 INCHES NOMINAL |
| SPRING FREE LENGTH | 1.200 INCHES NOMINAL |
| SPRING SOLID LENGTH | 0.870 INCHES NOMINAL |
| SPRING FREE OUTSIDE DIAMETER | 0.132 INCHES NOMINAL |
| END STYLE | E1 GROUND BOTH ENDS |
| COIL HELIX DIRECTION | RIGHT-HAND OR LEFT-HAND |
| COIL QUANTITY | 25 |
| BORE DIAMETER | 0.140 INCHES NOMINAL |
| SPRING DEFLECTION RATE | 63.000 POUNDS PER INCH NOMINAL |
Restrictions/Controls & Freight Information | NSN 5360-00-608-5060
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
