NSN 5360-00-798-3199 7983199, 00-798-3199, 007983199
Product Details | EXTENSION HELICAL SPRING
5360-00-798-3199 An open-or close-coiled spring, wound in various forms and from different shapes and types of materials and finished at the ends, so designed to provide resistance to pulling forces. The close-coiled springs may incorporate the special feature of initial tension created between the coils when wound so that an initial load must be applied to separate them. Excludes SPRING, REINFORCING, HOSE.20210050018Guns, through 30mm53600034Coil, Flat, Leaf, and Wire Springs
Part Alternates: 7983199, 5360-00-798-3199, 00-798-3199, 5360007983199, 007983199
Hardware and Abrasives | Coil, Flat, Leaf, and Wire Springs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-798-3199 | 04227 ( SPRING, HELICAL, EXTENSION ) |
Drawings & Photos | NSN 5360-00-798-3199
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5360-00-798-3199
Technical Data | NSN 5360-00-798-3199
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-W-474A,COMP A OR B FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OR ZINC OVERALL |
| STYLE DESIGNATOR | B1 CYLINDRICAL |
| INSIDE DIAMETER | 0.6295 INCHES NOMINAL |
| SPRING FREE LENGTH | 6.183 INCHES NOMINAL |
| SPRING FREE OUTSIDE DIAMETER | 0.812 INCHES NOMINAL |
| OPENING WIDTH | 0.312 INCHES NOMINAL BOTH ENDS |
| HOOK RADIUS | 0.312 INCHES NOMINAL BOTH ENDS |

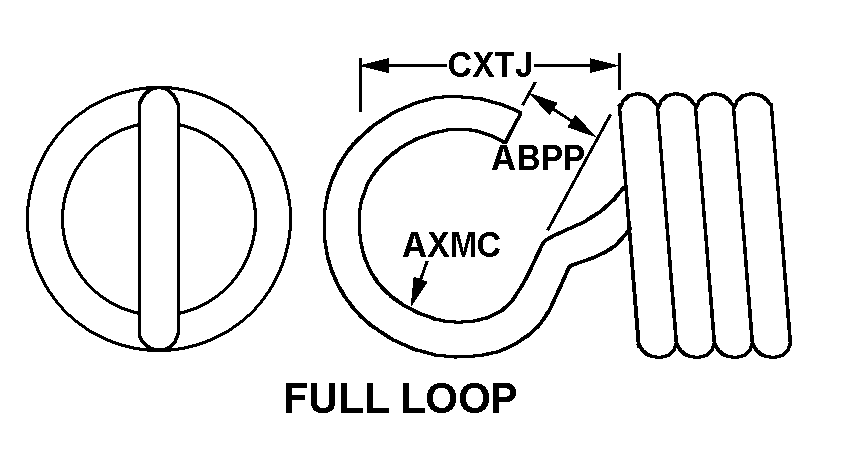

| END STYLE | F23 FULL LOOP BOTH ENDS |
| COIL HELIX DIRECTION | RIGHT-HAND OR LEFT-HAND |
| COIL QUANTITY | 48 |
| DESIGN TYPE | CLOSED |
| SPRING DEFLECTION RATE | 5.100 POUNDS PER INCH MINIMUM AND 42.000 POUNDS PER INCH MAXIMUM |
| SPRING LENGTH UNDER LOAD | 7.016 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5360-00-798-3199
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 177970 | SPRINGS NOI STL O/T WIRE |
| Less than car load rating | W | Rating Variable |
| Less than truck load rating | Z | No Rating |
| Water commodity Code | 579 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
