Product Details | TORSION HELICAL SPRING
5360-00-814-0532 An open-or close-wound coil spring consisting of one or more helical coils, wound from different shapes and types of material and finished at the ends, designed to exert pressure in a rotating direction around the coil axis. Excludes springs designed for thermal actuation (springs in which the torsion forces are counteracted by changes in temperature) and SPRING, REINFORCING, HOSE.20210050018Guns, through 30mm53600034Coil, Flat, Leaf, and Wire Springs
Part Alternates: 300-337035, 5360-00-814-0532, 00-814-0532, 5360008140532, 300337035, 008140532
Hardware and Abrasives | Coil, Flat, Leaf, and Wire Springs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 27 MAR 1968 | 00-814-0532 | 04228 ( SPRING, HELICAL, TORSION ) |
Drawings & Photos | NSN 5360-00-814-0532
Cross Reference | NSN 5360-00-814-0532
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 300-337035 | 89372 | ROCKWELL INTERNATIONAL CORP NORTH AMERICAN AIRCRAFT OPNS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5360-00-814-0532
Technical Data | NSN 5360-00-814-0532
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| STYLE DESIGNATOR | C1B SINGLE TORSION RIGHT HAND |
| INSIDE DIAMETER | 1.120 INCHES NOMINAL |
| SPRING FREE OUTSIDE DIAMETER | 1.280 INCHES NOMINAL |
| END LENGTH | 1.320 INCHES NOMINAL BOTH ENDS |
| END LENGTH FROM COIL AXIS TO FIRST BEND | 0.500 INCHES NOMINAL BOTH ENDS |
| END LENGTH FROM FIRST BEND TO SECOND BEND OR END | 0.820 INCHES NOMINAL BOTH ENDS |
| END LENGTH FROM SECOND BEND TO THIRD BEND OR END | 1.000 INCHES NOMINAL BOTH ENDS |
| OFFSET DISTANCE | 0.270 INCHES NOMINAL |
| CENTER SECTION WIDTH | 1.660 INCHES NOMINAL |
| COIL AXIS TO CENTER SECTION DISTANCE | 1.500 INCHES NOMINAL |

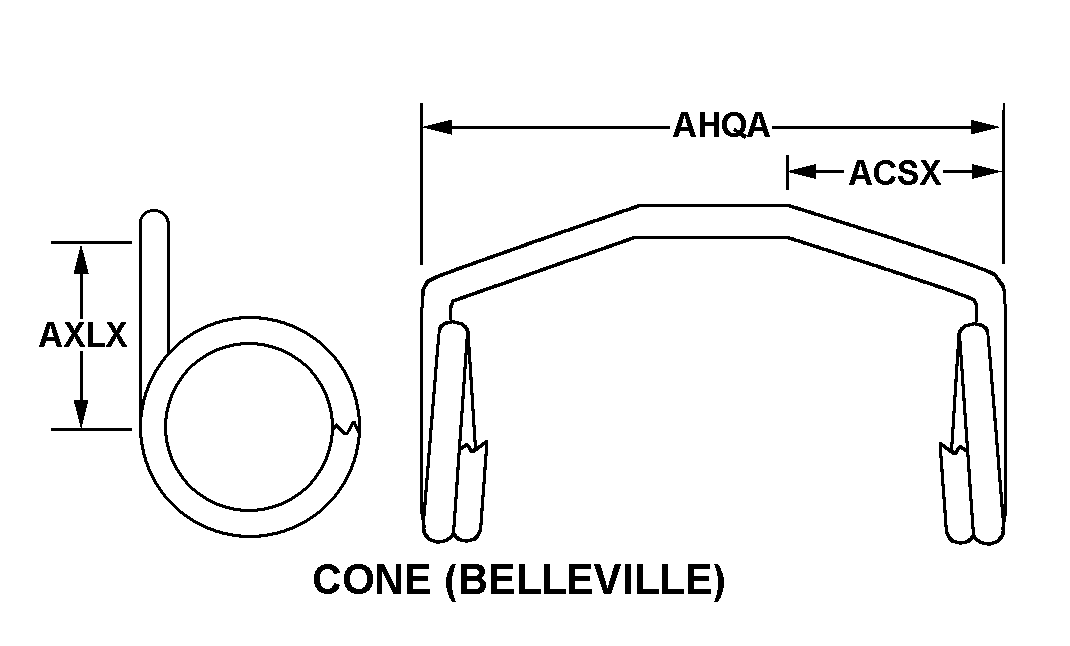

| END STYLE | G15 L SHAPE END BOTH ENDS |
| COIL HELIX DIRECTION | LEFT-HAND OR RIGHT-HAND |
| CENTER STYLE | K5 CONE |
| COIL QUANTITY | 4 |
| SPRING DEFLECTION RATE | 8.500 POUNDS PER INCH MINIMUM AND 11.500 POUNDS PER INCH MAXIMUM |
| END ANGULAR RELATIONSHIP | ENDS ANGLED ONE TO OTHER |
| MANUFACTURERS CODE | 89372 |
| DESIGN CONTROL REFERENCE | 300-337035 |
