NSN 5360-00-824-0522 11577982, 00-824-0522, 008240522
Product Details | FLAT SPRING
5360-00-824-0522 A spring made of flat or prebent strip metal. It is designed to apply force in one direction when deflected in the opposite direction. It must be capable of recovering size or shape after deformation. Excludes SPRING (1), LEAF; and springs designed for thermal actuation (springs in which the torsion forces are counteracted by changes in temperature).20210050018Guns, through 30mm53600034Coil, Flat, Leaf, and Wire Springs
Part Alternates: 11577982, 5360-00-824-0522, 00-824-0522, 5360008240522, 008240522
Hardware and Abrasives | Coil, Flat, Leaf, and Wire Springs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 11 AUG 1967 | 00-824-0522 | 61782 ( SPRING, FLAT ) |

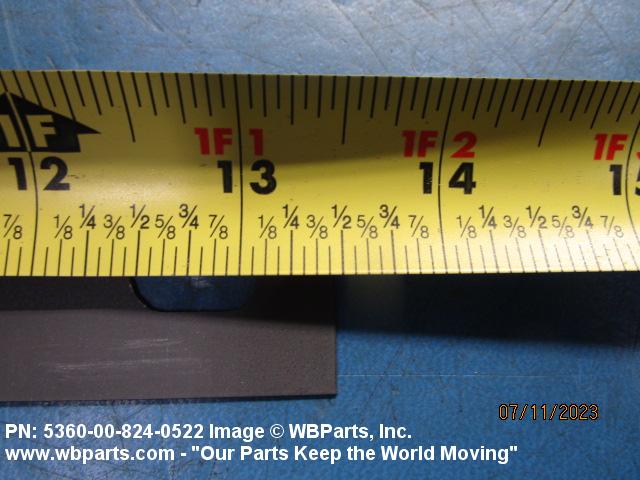

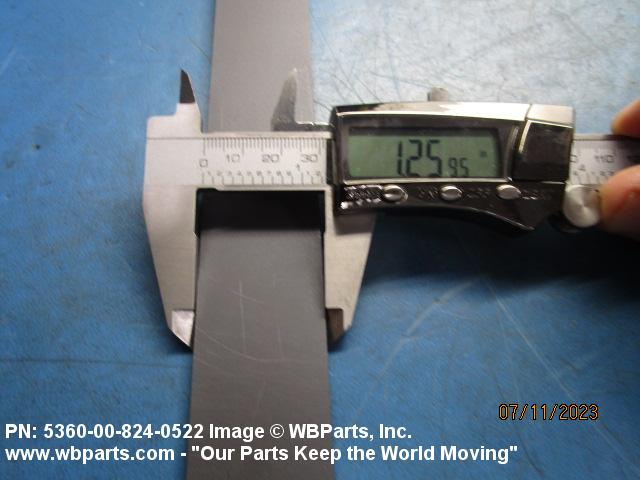

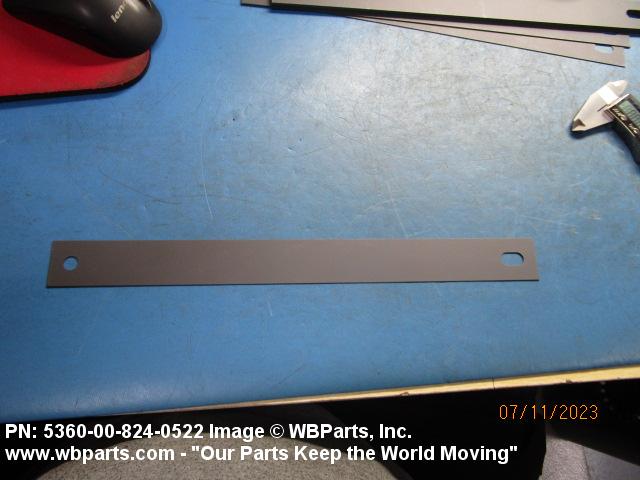

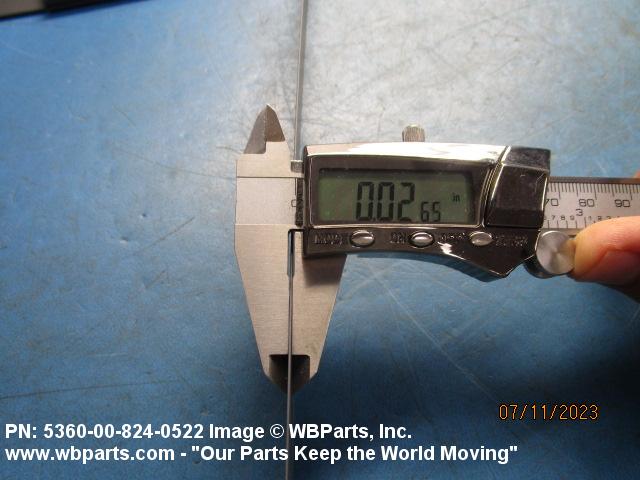

Drawings & Photos | NSN 5360-00-824-0522
Demand History | NSN 5360-00-824-0522
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5360-00-824-0522 | 2025-10-278 | 90 | DIBBS |
| 5360-00-824-0522 | 2025-08-240 | 500 | DIBBS |
| 5360-00-824-0522 | 2025-08-232 | 500 | DIBBS |
| 5360-00-824-0522 | 2025-03-72 | 5206 | DIBBS |
| 5360-00-824-0522 | 2025-02-34 | 5206 | DIBBS |
| 5360-00-824-0522 | 2024-07-204 | 5206 | DIBBS |
| 5360-00-824-0522 | 2023-12-348 | 5842 | DIBBS |
| 5360-00-824-0522 | 2023-11-320 | 5842 | DIBBS |
| 5360-00-824-0522 | 2023-10-278 | 907 | DIBBS |
| 5360-00-824-0522 | 2023-07-204 | 3431 | DIBBS |
| 5360-00-824-0522 | 2023-06-176 | 757 | DIBBS |
| 5360-00-824-0522 | 2023-06-174 | 1967 | DIBBS |
| 5360-00-824-0522 | 2023-06-159 | 24 | United States |
| 5360-00-824-0522 | 2023-05-134 | 1967 | DIBBS |
| 5360-00-824-0522 | 2023-04-118 | 1512 | US |
| 5360-00-824-0522 | 2023-04-110 | 1512 | DIBBS |
| 5360-00-824-0522 | 2022-09-249 | 447 | DIBBS |
| 5360-00-824-0522 | 2022-07-199 | 924 | DIBBS |
| 5360-00-824-0522 | 2022-03-76 | 1332 | DIBBS |
| 5360-00-824-0522 | 2020-10-281 | 2930 | DIBBS |
| 5360-00-824-0522 | 2020-05-124 | 1254 | DIBBS |
| 5360-00-824-0522 | 2020-03-75 | 2930 | DIBBS |
| 5360-00-824-0522 | 2020-02-57 | 571 | DIBBS |
| 5360-00-824-0522 | 2020-02-34 | 571 | DIBBS |
| 5360-00-824-0522 | 2019-02-55 | 823 | DIBBS |
| 5360-00-824-0522 | 2018-06-178 | 1355 | DIBBS |
| 5360-00-824-0522 | 2018-06-154 | 400 | DIBBS |
| 11577982 | 2017-06-177 | 2000 | United States |
| 5360-00-824-0522 | 2016-12-336 | 3953 | DIBBS |
| 5360-00-824-0522 | 2016-11-322 | 2000 | DIBBS |
| 5360-00-824-0522 | 2016-09-252 | 750 | DIBBS |
| 5360-00-824-0522 | 2016-07-183 | 96 | DE |
| 5360-00-824-0522 | 2016-06-168 | 751 | DIBBS |
| 5360-00-824-0522 | 2016-02-35 | 5305 | DIBBS |
| 5360-00-824-0522 | 2016-01-07 | 4117 | DIBBS |
| 5360-00-824-0522 | 2015-10-293 | 1001 | DIBBS |
| 5360-00-824-0522 | 2015-10-285 | 456 | DIBBS |
| 5360-00-824-0522 | 2015-06-177 | 196 | Israel |
| 5360-00-824-0522 | 2015-06-165 | 219 | DIBBS |
| 5360-00-824-0522 | 2015-05-137 | 546 | DIBBS |
| 5360-00-824-0522 | 2013-02-57 | 40000 | US |
| 5360-00-824-0522 | 2012-02-53 | 601 | DIBBS |
| 5360-00-824-0522 | 2011-05-151 | 1000 | PK |
| 5360-00-824-0522 | 2011-05-151 | 1000 | PK |
| 5360-00-824-0522 | 2007-08-243 | 3000 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5360-00-824-0522
Related Products | NSN 5360-00-824-0522
Technical Data | NSN 5360-00-824-0522
| Characteristic | Specifications |
|---|---|
| SPECIAL FEATURES | STEEL,SAE 1095,MIL-S-46049,0.024 IN. MIN. 0.026 IN. MAX THK,13.480IN. MIN,13.520 IN. MAX LG,0.620 IN. MIN,0.630 IN. MAX W,1 MTG HOLE 0.376IN. MIN,0.379 IN. MAX DIA,0.511 IN. MIN,0.551 IN. MAX FROM CENTER OF HOLETO END |
| MANUFACTURERS CODE | 19206 |
| DESIGN CONTROL REFERENCE | 11577982 |
Restrictions/Controls & Freight Information | NSN 5360-00-824-0522
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 178000 | SPRINGS NOI STL O/T WIRE |
| Less than car load rating | T | 55 |
| Less than truck load rating | T | 55.0 |
| Water commodity Code | 579 | unknown |
| Originating Activity Code | BF | U.S. Army Armament and Chemical Acquisition and Logistics Activity Rock Island, IL 61299-6000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5360-00-824-0522
Army
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | K | Combat Vehicles |
| Weapons Systems/End Item or Homogeneous Group | KF | Howitzer, Full Tracked, Self- propelled 155mm M109 |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
A PG : Package |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | K | Reserved |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
A PG : Package |
