NSN 5360-00-965-6462 BL4693, BL-4693, C03600321500S
Product Details | COMPRESSION HELICAL SPRING
5360-00-965-6462 An open coiled spring, wound in various forms and from different shapes and types of materials and finished at the ends, designed to provide resistance to compression forces. Excludes springs designed for thermal actuation (springs in which the torsion forces are designed to be counteracted by changes in temperature) and SPRING, REINFORCING, HOSE.20210050018Guns, through 30mm53600034Coil, Flat, Leaf, and Wire Springs
Part Alternates: BL4693, BL-4693, C03600321500S, C0360-032-1500S, C3600321500, C360-032-1500, 5360-00-965-6462, 00-965-6462, 5360009656462, 009656462
Hardware and Abrasives | Coil, Flat, Leaf, and Wire Springs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 08 JUN 1966 | 00-965-6462 | 04226 ( SPRING, HELICAL, COMPRESSION ) |

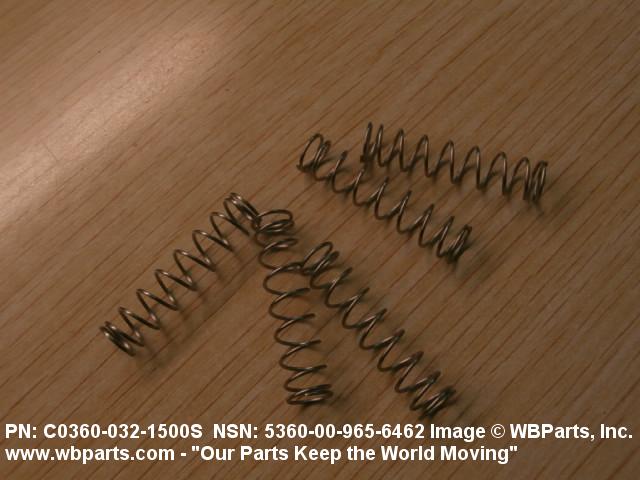

Drawings & Photos | NSN 5360-00-965-6462
Demand History | NSN 5360-00-965-6462
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| BL-4693 | 2021-10-280 | 12 | DIBBS |
| C0360-032-1500S | 2021-10-280 | 12 | DIBBS |
| BL-4693 | 2021-08-216 | 3 | DIBBS |
| C0360-032-1500S | 2021-08-216 | 3 | DIBBS |
| BL-4693 | 2021-07-199 | 2 | DIBBS |
| C0360-032-1500S | 2021-07-199 | 2 | DIBBS |
| BL-4693 | 2020-11-328 | 10 | DIBBS |
| C0360-032-1500S | 2020-11-328 | 10 | DIBBS |
| C0360-032-1500S | 2018-04-115 | 25 | United States |
| C3600321500 | 2016-02-34 | 5 | Malaysia |
| 5360-00-965-6462 | 2015-03-82 | 1 | DIBBS |
| 5360-00-965-6462 | 2015-03-78 | 1 | DIBBS |
| 5360-00-965-6462 | 2015-03-61 | 2 | DIBBS |
| 5360-00-965-6462 | 2015-01-28 | 1 | DIBBS |
| 5360-00-965-6462 | 2014-04-118 | 1 | DIBBS |
| 5360-00-965-6462 | 2014-04-105 | 1 | DIBBS |
| 5360-00-965-6462 | 2014-04-98 | 6 | DIBBS |
| 5360-00-965-6462 | 2014-03-66 | 1 | DIBBS |
| 5360-00-965-6462 | 2014-02-51 | 1 | DIBBS |
| 5360-00-965-6462 | 2014-02-49 | 1 | DIBBS |
| 5360-00-965-6462 | 2014-02-34 | 1 | DIBBS |
| 5360-00-965-6462 | 2011-03-64 | 10 | DIBBS |
| 5360-00-965-6462 | 2010-11-321 | 5 | DIBBS |
| 5360-00-965-6462 | 2010-06-165 | 5 | DIBBS |
| 5360-00-965-6462 | 2010-03-89 | 5 | DIBBS |
| 5360-00-965-6462 | 2009-11-334 | 10 | DIBBS |
| 5360-00-965-6462 | 2009-11-318 | 5 | DIBBS |
| 5360-00-965-6462 | 2008-12-340 | 100 | Philippines |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5360-00-965-6462
Related Products | NSN 5360-00-965-6462
Technical Data | NSN 5360-00-965-6462
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 302 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-W-423,FORM 1,COND B FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| STYLE DESIGNATOR | A1 CYLINDRICAL |

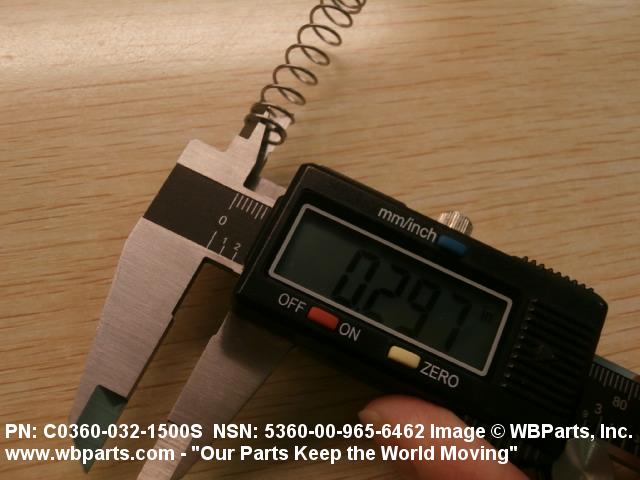

| INSIDE DIAMETER | 0.296 INCHES NOMINAL |
| SPRING FREE LENGTH | 1.500 INCHES NOMINAL |
| SPRING SOLID LENGTH | 0.344 INCHES NOMINAL |

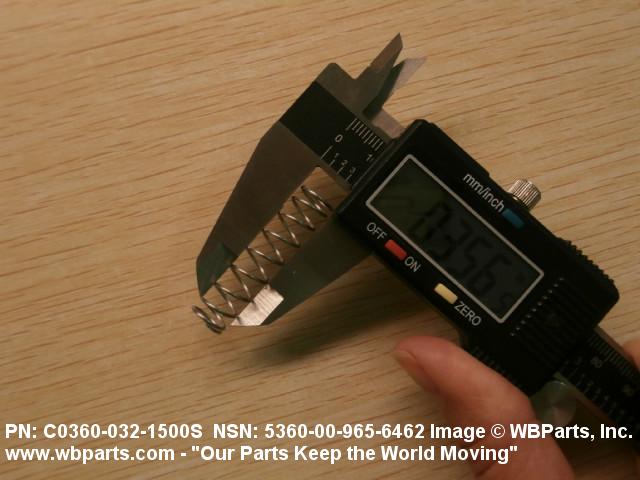

| SPRING FREE OUTSIDE DIAMETER | 0.360 INCHES NOMINAL |
| END STYLE | E4 SQUARED AND GROUND BOTH ENDS |
| COIL HELIX DIRECTION | RIGHT-HAND |

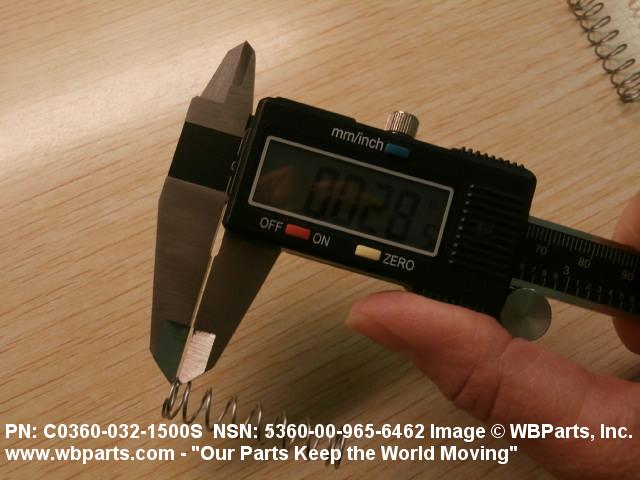

| STOCK DIAMETER | 0.032 INCHES NOMINAL |
| LOAD RATING | 4.720 POUNDS NOMINAL |
| COIL QUANTITY | 10 |
| SPRING LENGTH UNDER LOAD | 0.631 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5360-00-965-6462
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 177940 | SPRINGS:SPRINGS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 579 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5360-00-965-6462
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | A | Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
A EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
A EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
A EA : Each |
