NSN 5360-01-056-7142 7244102 , 72441-02, 01-056-7142

Product Details | COMPRESSION HELICAL SPRING

5360-01-056-7142 An open coiled spring, wound in various forms and from different shapes and types of materials and finished at the ends, designed to provide resistance to compression forces. Excludes springs designed for thermal actuation (springs in which the torsion forces are designed to be counteracted by changes in temperature) and SPRING, REINFORCING, HOSE.20210050018Guns, through 30mm53600034Coil, Flat, Leaf, and Wire Springs

Part Alternates: 7244102 , 72441-02, 5360-01-056-7142, 01-056-7142, 5360010567142, 010567142

Hardware and Abrasives | Coil, Flat, Leaf, and Wire Springs

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	26 FEB 1978	01-056-7142	04226 ( SPRING, HELICAL, COMPRESSION )

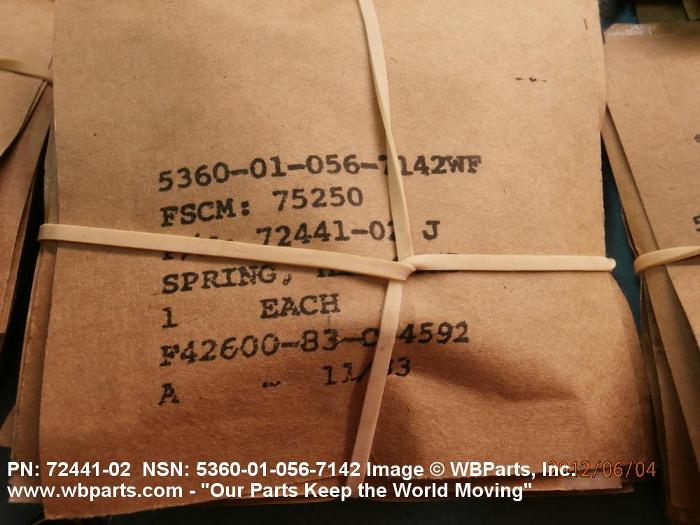

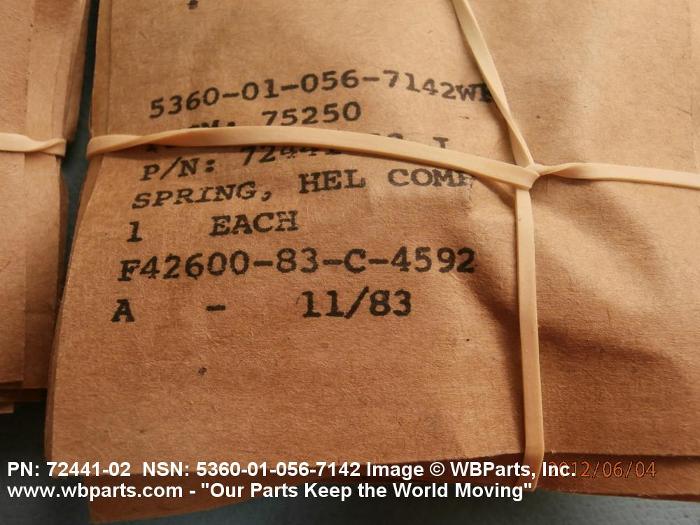

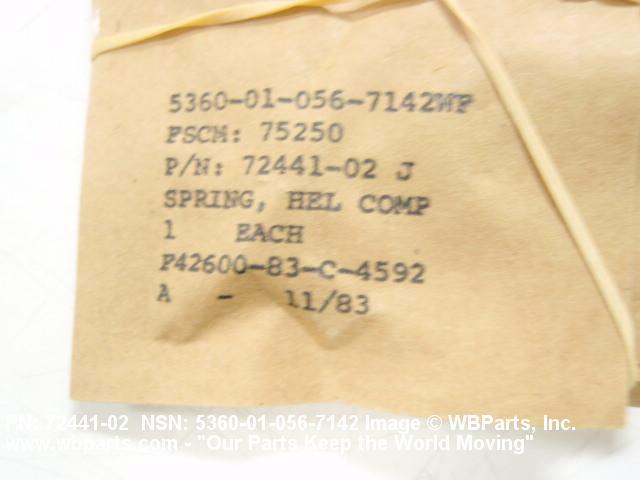

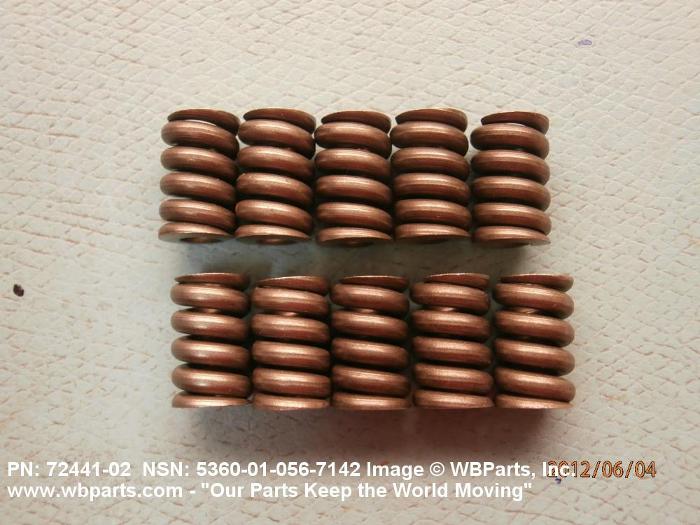

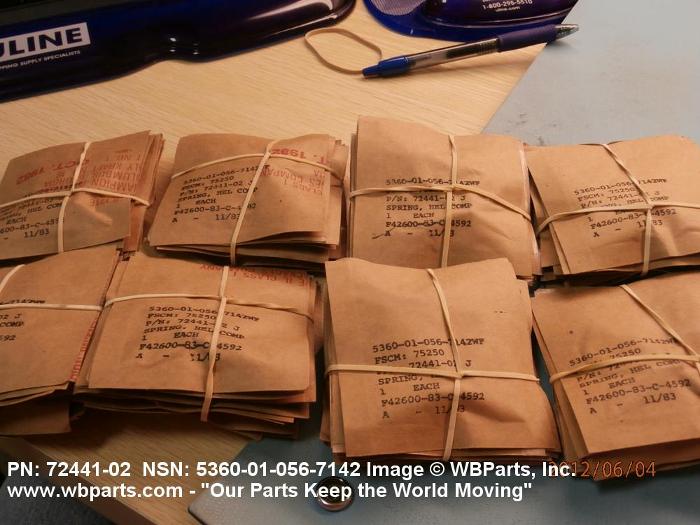

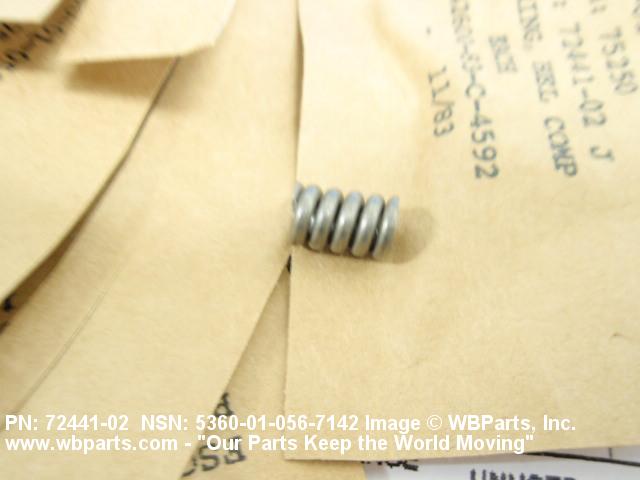

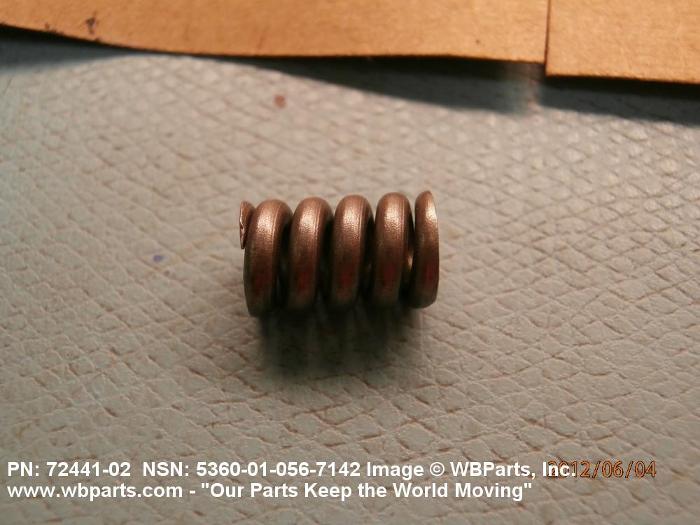

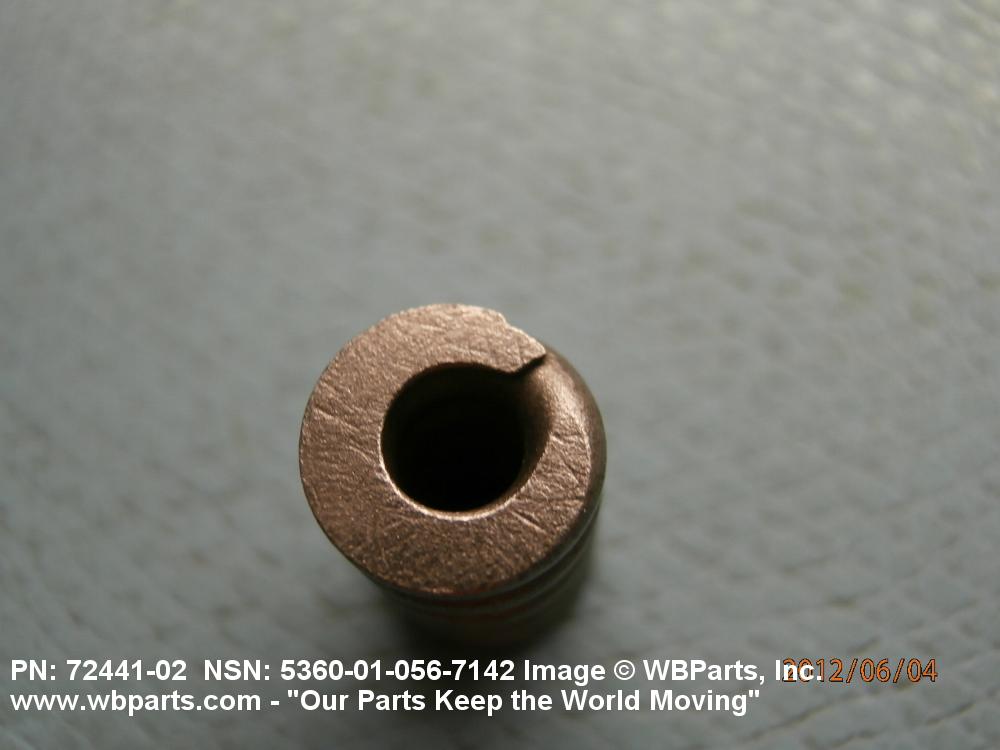

Drawings & Photos | NSN 5360-01-056-7142

Part Number	Request Date	QTY	Origin
7244102	2022-09-251	24	China
5360-01-056-7142	2022-07-208	48	Poland
7244102	2019-02-55	955	DIBBS
5360-01-056-7142	2017-09-267	381	DIBBS
5360-01-056-7142	2017-04-116	118	DIBBS
7244102	2014-11-310	24	US
5360-01-056-7142	2014-06-169	610	DIBBS
5360-01-056-7142	2014-04-93	279	DIBBS
5360-01-056-7142	2013-10-279	359	DIBBS
5360-01-056-7142	2013-06-169	33	DIBBS
5360-01-056-7142	2012-11-311	333	US
5360-01-056-7142	2012-08-233	100	DIBBS
5360-01-056-7142	2012-07-207	400	DIBBS
5360-01-056-7142	2012-05-145	80	United States
5360-01-056-7142	2012-05-144	120	DIBBS
5360-01-056-7142	2012-05-126	80	DIBBS
5360-01-056-7142	2011-12-346	52	DIBBS
5360-01-056-7142	2011-09-271	306	DIBBS
5360-01-056-7142	2011-02-45	5	TW
5360-01-056-7142	2010-11-334	372	United States
5360-01-056-7142	2010-07-204	372	DIBBS
5360-01-056-7142	2010-07-197	185	DIBBS
5360-01-056-7142	2009-10-286	643	DIBBS

Cross Reference | NSN 5360-01-056-7142

Part Number	Cage Code	Manufacturer
7244102	49695	PARKER HANNIFIN CORPORATION DBA CONTROL SYSTEMS DIV
7244102	93835	PARKER-HANNIFIN CORPORATION DBA HYDRAULIC SYSTEMS DIVISION

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5360-01-056-7142

Compare

Related Products | NSN 5360-01-056-7142

5360-01-056-7223, 5360-01-056-7937, 5360-01-056-8656, 5360-01-056-8657, 5360-01-056-8658

Technical Data | NSN 5360-01-056-7142

Characteristic	Specifications
MATERIAL	CHROMIUM AND SILICON AND STEEL COMP 9254 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	AISI ASSN STD SINGLE MATERIAL RESPONSE OVERALL
STYLE DESIGNATOR	A1 CYLINDRICAL

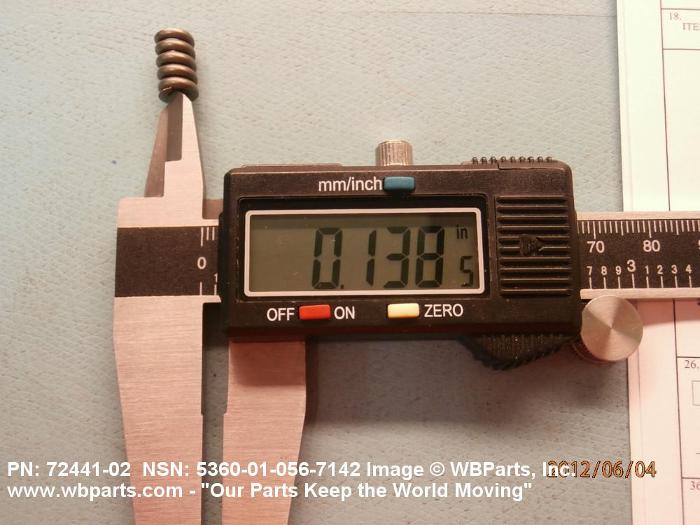

INSIDE DIAMETER	0.138 INCHES NOMINAL

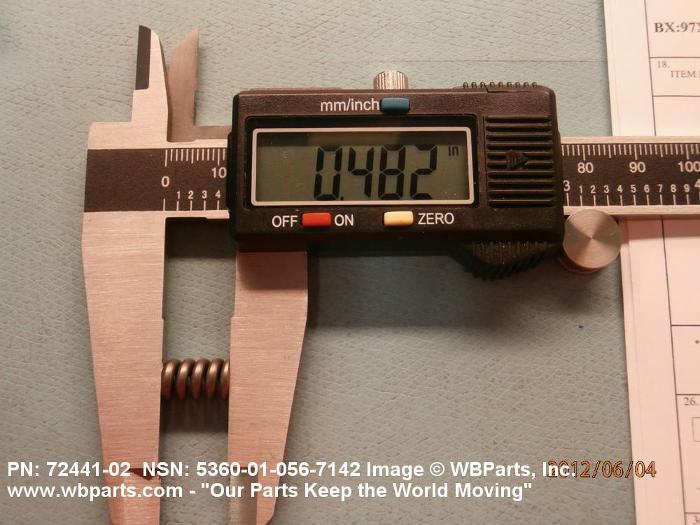

SPRING FREE LENGTH	0.468 INCHES MINIMUM AND 0.498 INCHES MAXIMUM
SPRING SOLID LENGTH	0.428 INCHES NOMINAL

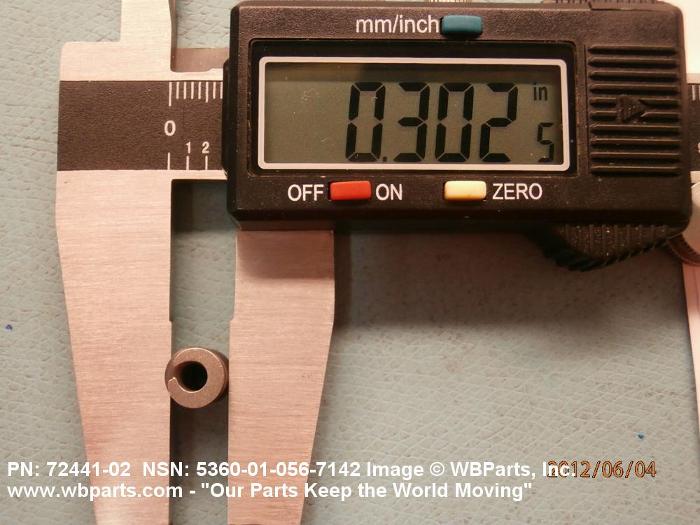

SPRING FREE OUTSIDE DIAMETER	0.302 INCHES NOMINAL

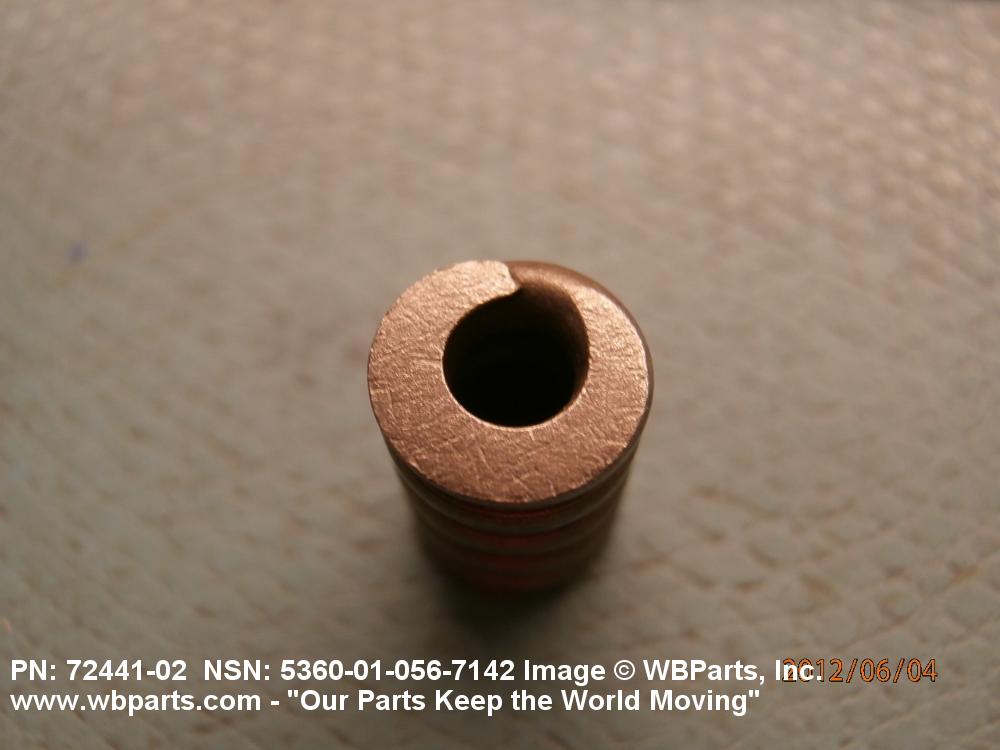

END STYLE	E4 SQUARED AND GROUND BOTH ENDS
COIL HELIX DIRECTION	RIGHT-HAND OR LEFT-HAND
COIL QUANTITY	5.6
BORE DIAMETER	0.320 INCHES NOMINAL
SPRING DEFLECTION RATE	1700.000 POUNDS PER INCH NOMINAL
MANUFACTURERS CODE	93835
DESIGN CONTROL REFERENCE	72441-02

Restrictions/Controls & Freight Information | NSN 5360-01-056-7142

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	177940	SPRINGS:SPRINGS NOI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	579	unknown
Originating Activity Code	SU	Ogden Air Logistics Center Hill AFB, UT 84056-5609
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5360-01-056-7142

Air Force

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Materiel Management Aggregation Code	WF	SU:F-16 AIR COMBAT FIGHTER
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
