NSN 5360-01-108-4803 74A4509382001, 74A450938-2001, 74A4509732001
Product Details | TORSION HELICAL SPRING
5360-01-108-4803 An open-or close-wound coil spring consisting of one or more helical coils, wound from different shapes and types of material and finished at the ends, designed to exert pressure in a rotating direction around the coil axis. Excludes springs designed for thermal actuation (springs in which the torsion forces are counteracted by changes in temperature) and SPRING, REINFORCING, HOSE.20210050018Guns, through 30mm53600034Coil, Flat, Leaf, and Wire Springs
Part Alternates: 74A4509382001, 74A450938-2001, 74A4509732001, 74A450973-2001, 5360-01-108-4803, 01-108-4803, 5360011084803, 011084803
Hardware and Abrasives | Coil, Flat, Leaf, and Wire Springs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 27 FEB 1981 | 01-108-4803 | 04228 ( SPRING, HELICAL, TORSION ) |

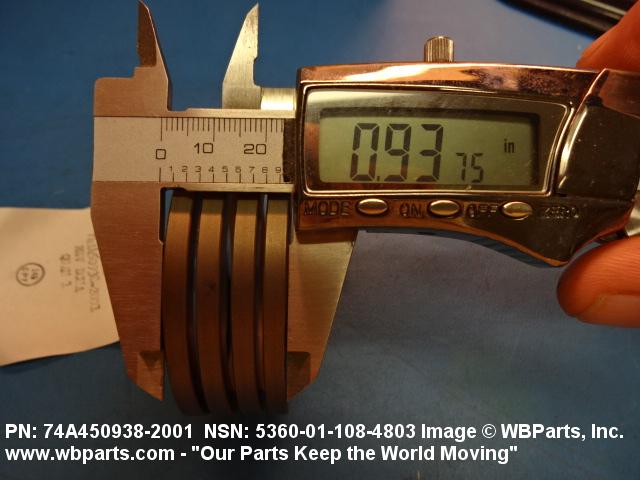

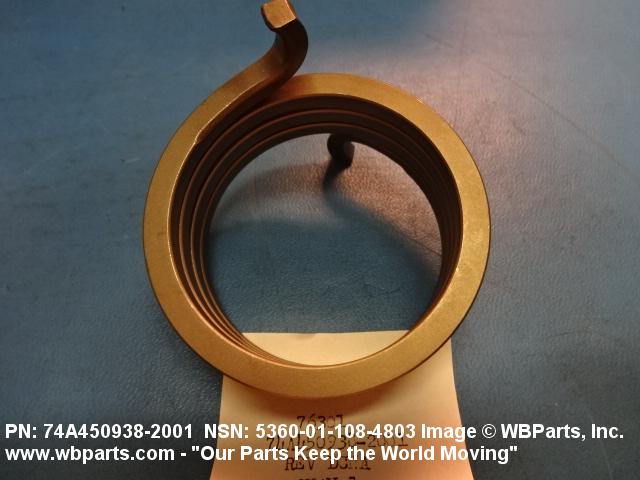

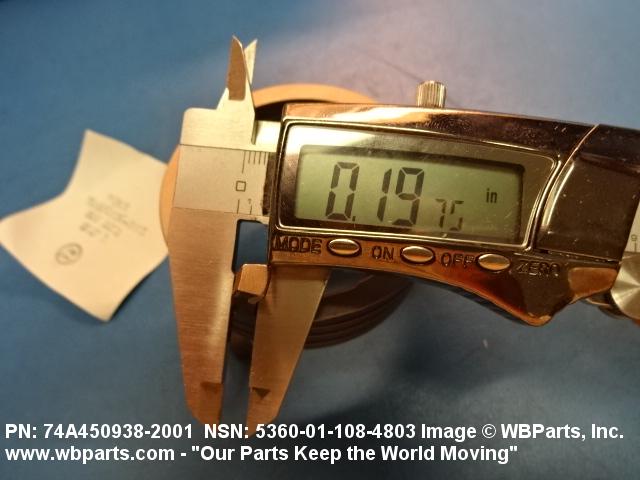

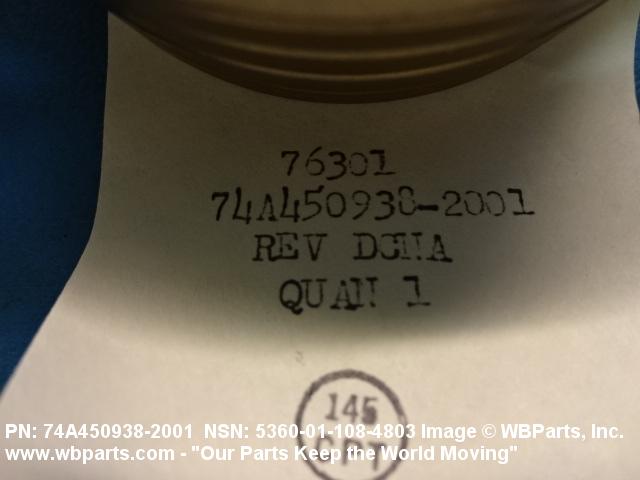

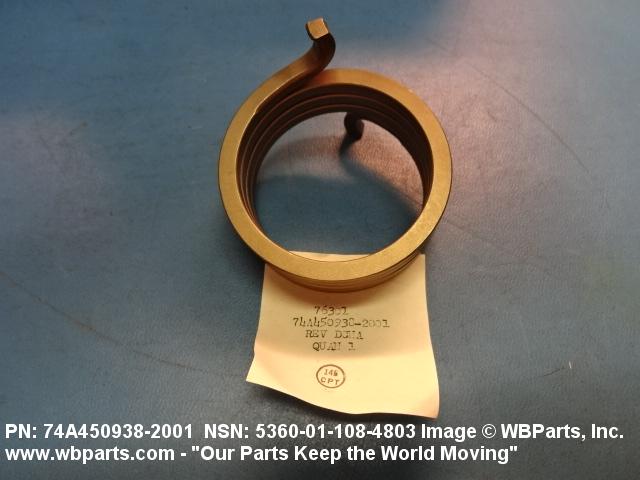

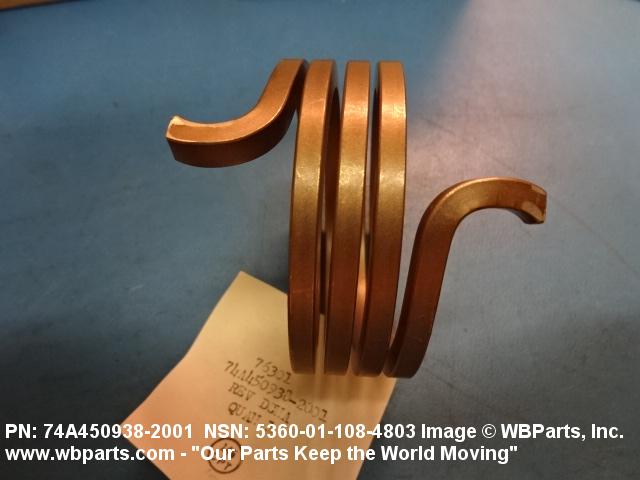

Drawings & Photos | NSN 5360-01-108-4803
Demand History | NSN 5360-01-108-4803
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5360-01-108-4803 | 2018-01-30 | 5 | United States |
| 5360-01-108-4803 | 2017-11-327 | 5 | DIBBS |
| 5360-01-108-4803 | 2016-03-84 | 7 | DIBBS |
| 5360-01-108-4803 | 2014-08-226 | 5 | DIBBS |
Cross Reference | NSN 5360-01-108-4803
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 74A450938-2001 | 32168 | ALL TOOLS INC. DBA E2 PRECISION PRODUCTS |
| 74A450938-2001 | 35962 | MESSIER-DOWTY INC DBA MESSIER-DOWTY |
| 74A450938-2001 | 36164 | HEROUX-DEVTEK INC |
| 74A450938-2001 | 50601 | CIRCOR AEROSPACE, INC. |
| 74A450938-2001 | 76301 | BOEING COMPANY, THE DBA BOEING |
| 74A450938-2001 | 9K006 | CIRCOR AEROSPACE, INC. DBA CIRCOR AEROSPACE MACHINING |
| 74A450938-2001 | S5495 | ISRAEL AEROSPACE INDUSTRIES LTD. SHL - AERO ASSEMBLIES DIVISION |
| 74A450973-2001 | 76301 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5360-01-108-4803
Technical Data | NSN 5360-01-108-4803
| Characteristic | Specifications |
|---|---|
| SURFACE TREATMENT | PASSIVATE OVERALL |
| STYLE DESIGNATOR | C1A SINGLE TORSION LEFT HAND |
| INSIDE DIAMETER | 2.180 INCHES NOMINAL |
| SPRING FREE LENGTH | 1.200 INCHES NOMINAL |
| SPRING FREE OUTSIDE DIAMETER | 2.580 INCHES NOMINAL |
| END LENGTH | 0.560 INCHES NOMINAL BOTH ENDS |
| END STYLE | G4 STRAIGHT OFFSET OVERALL |
| COIL HELIX DIRECTION | RIGHT-HAND |
| COIL QUANTITY | 4 |
| END ANGULAR RELATIONSHIP | ENDS ANGLED ONE TO OTHER |
| MANUFACTURERS CODE | 76301 |
| DESIGN CONTROL REFERENCE | 74A450938-2001 |
Restrictions/Controls & Freight Information | NSN 5360-01-108-4803
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 177940 | SPRINGS:SPRINGS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5360-01-108-4803
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
