NSN 5360-01-109-6289 MS24585C339, MS24585-C339, 01-109-6289
Product Details | COMPRESSION HELICAL SPRING
5360-01-109-6289 An open coiled spring, wound in various forms and from different shapes and types of materials and finished at the ends, designed to provide resistance to compression forces. Excludes springs designed for thermal actuation (springs in which the torsion forces are designed to be counteracted by changes in temperature) and SPRING, REINFORCING, HOSE.20210050018Guns, through 30mm53600034Coil, Flat, Leaf, and Wire Springs
Part Alternates: MS24585C339, MS24585-C339, 5360-01-109-6289, 01-109-6289, 5360011096289, 011096289
Hardware and Abrasives | Coil, Flat, Leaf, and Wire Springs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 18 MAR 1981 | 01-109-6289 | 04226 ( SPRING, HELICAL, COMPRESSION ) |

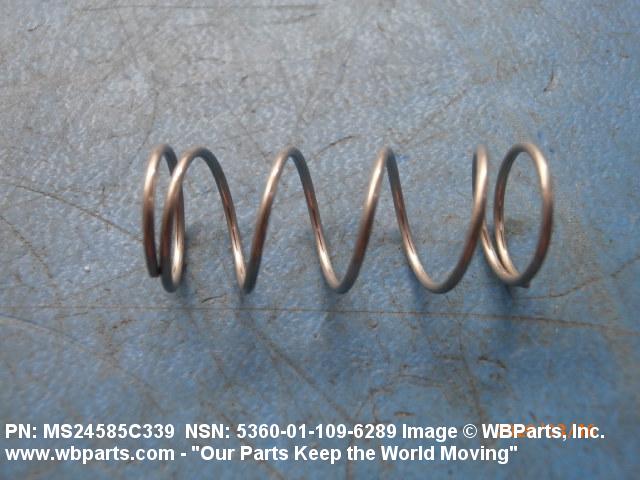

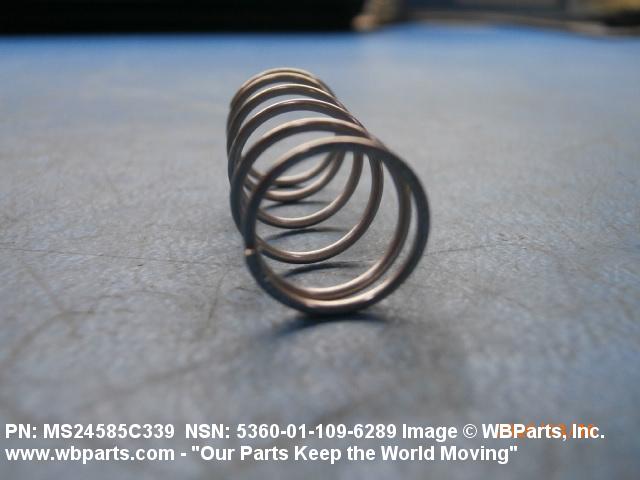

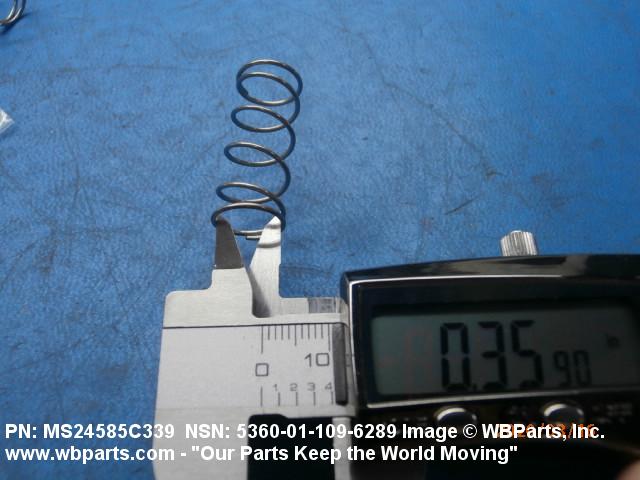

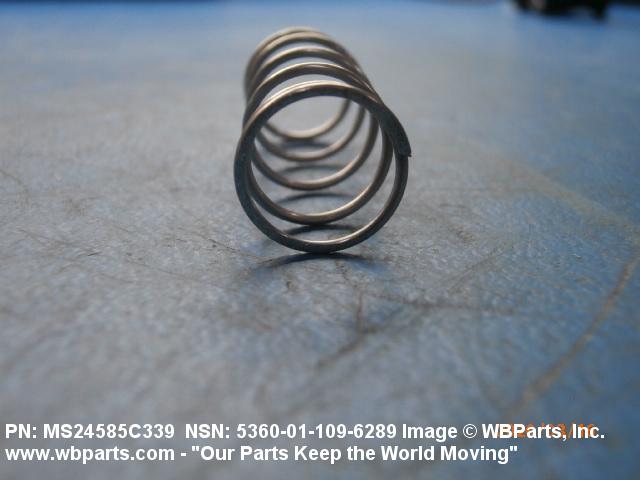

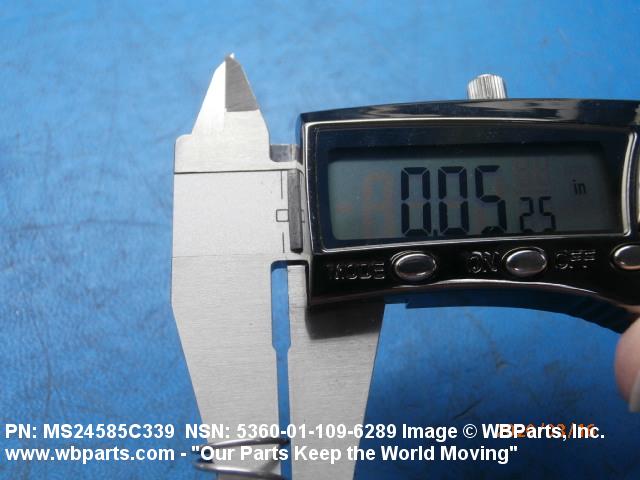

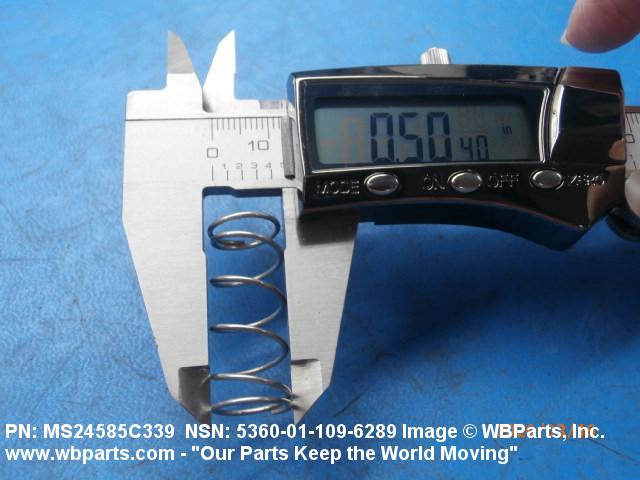

Drawings & Photos | NSN 5360-01-109-6289
Demand History | NSN 5360-01-109-6289
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5360-01-109-6289 | 2022-11-307 | 90 | DIBBS |
| MS24585C339 | 2021-04-118 | 10 | China |
| MS24585C339 | 2021-04-118 | 10 | China |
| MS24585C339 | 2020-03-66 | 30 | China |
| 5360-01-109-6289 | 2017-10-289 | 54 | DIBBS |
| 5360-01-109-6289 | 2013-06-163 | 22 | DIBBS |
| 5360-01-109-6289 | 2010-04-100 | 4 | Afghanistan |
| 5360-01-109-6289 | 2010-02-48 | 22 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5360-01-109-6289
Technical Data | NSN 5360-01-109-6289
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 302 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-W-423 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | A1 CYLINDRICAL |

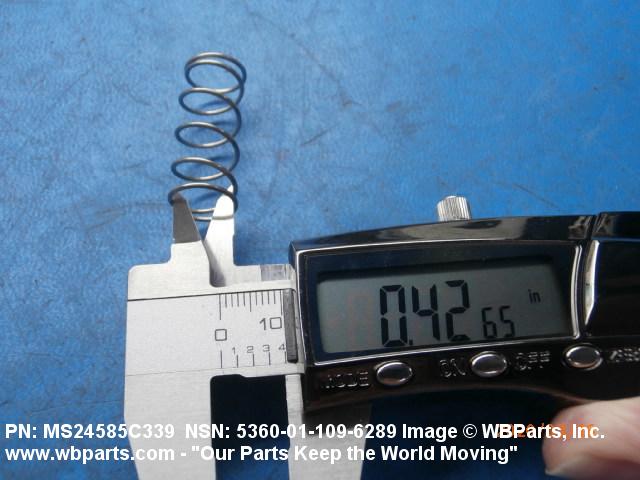

| INSIDE DIAMETER | 0.424 INCHES NOMINAL |

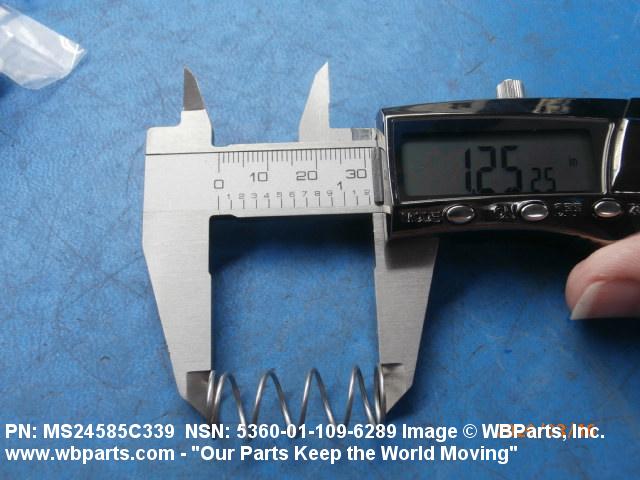

| SPRING FREE LENGTH | 1.250 INCHES NOMINAL |
| SPRING SOLID LENGTH | 0.237 INCHES NOMINAL |
| SPRING FREE OUTSIDE DIAMETER | 0.500 INCHES NOMINAL |

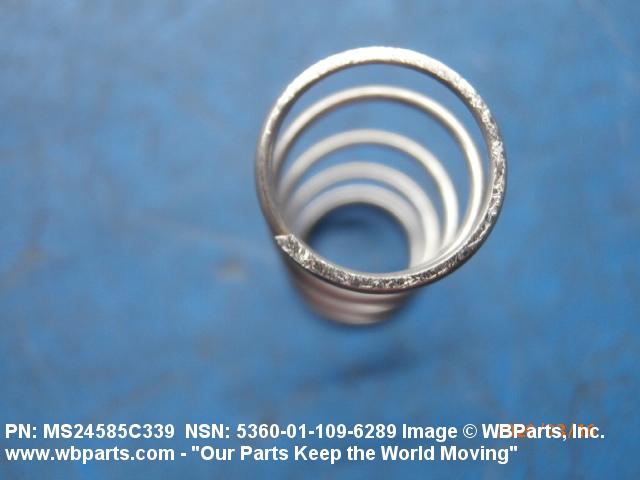

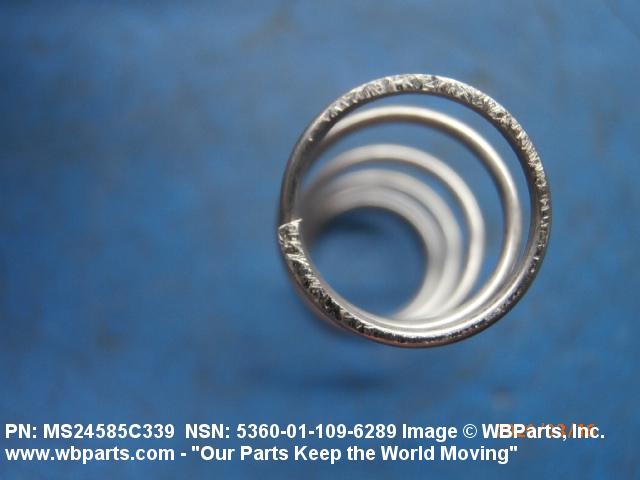

| END STYLE | E2 SQUARED BOTH ENDS |
| COIL HELIX DIRECTION | RIGHT-HAND OR LEFT-HAND |
| SPRING DEFLECTION RATE | 7.500 POUNDS PER INCH NOMINAL |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS24585C339 |
Restrictions/Controls & Freight Information | NSN 5360-01-109-6289
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 177940 | SPRINGS:SPRINGS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 579 | unknown |
| Originating Activity Code | ZN | Netherlands ZO ZP |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5360-01-109-6289
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
