NSN 5360-01-159-5953 1433300001, 143330-0001, TBD
Product Details | EXTENSION HELICAL SPRING
5360-01-159-5953 An open-or close-coiled spring, wound in various forms and from different shapes and types of materials and finished at the ends, so designed to provide resistance to pulling forces. The close-coiled springs may incorporate the special feature of initial tension created between the coils when wound so that an initial load must be applied to separate them. Excludes SPRING, REINFORCING, HOSE.20210050018Guns, through 30mm53600034Coil, Flat, Leaf, and Wire Springs
Part Alternates: 1433300001, 143330-0001, TBD , 5360-01-159-5953, 01-159-5953, 5360011595953, 011595953
Hardware and Abrasives | Coil, Flat, Leaf, and Wire Springs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 10 AUG 1983 | 01-159-5953 | 04227 ( SPRING, HELICAL, EXTENSION ) |
Drawings & Photos | NSN 5360-01-159-5953
Demand History | NSN 5360-01-159-5953
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| TBD | 2025-11-310 | 1 | US |
| TBD | 2025-11-310 | 1 | US |
| TBD | 2025-04-101 | 6 | US |
| TBD | 2020-07-184 | 10 | US |
| TBD | 2018-07-190 | 2 | United States |
| TBD | 2006-04-117 | 1 | us |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5360-01-159-5953
Technical Data | NSN 5360-01-159-5953
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 FED SPEC ALL TREATMENT RESPONSES OVERALL |
| STYLE DESIGNATOR | B1 CYLINDRICAL |
| INSIDE DIAMETER | 0.175 INCHES NOMINAL |
| SPRING FREE LENGTH | 1.414 INCHES NOMINAL |
| SPRING FREE OUTSIDE DIAMETER | 0.375 INCHES NOMINAL |

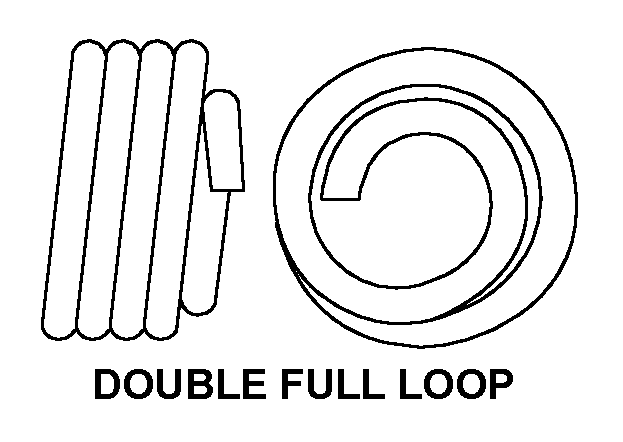

| END STYLE | F46 DOUBLE FULL LOOP FIRST END F47 MACHINE LOOP SECOND END |
| COIL HELIX DIRECTION | RIGHT-HAND OR LEFT-HAND |
| LOAD RATING | 6.800 POUNDS NOMINAL |
| DESIGN TYPE | CLOSED |
| SPRING DEFLECTION RATE | 6.400 POUNDS PER INCH NOMINAL |
Restrictions/Controls & Freight Information | NSN 5360-01-159-5953
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 177940 | SPRINGS:SPRINGS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 579 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5360-01-159-5953
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
