NSN 5365-00-068-7009 5158311, 515831-1, 00-068-7009
Product Details | SHIM
5365-00-068-7009 A thin flat metal or plastic item of various peripheral shapes having a solid or laminated cross-section. It is designed to maintain a predetermined distance between two surfaces. For round items without a hole and having a solid rectangular cross-section use DISK, SOLID, PLAIN. Items with either (1) a solid (not laminated) cross-section, or (2) a non-separable laminated cross-section with one hole centrally located, must have a thickness less than 0.006 inch (0.152 mm) for items less than 1/4 inch (6.35 mm) outside diameter or shortest distance across peripheral flats, and less than 0.016 inch (0.406 mm) for items 1/4 inch (6.35 mm) or more outside diameter, or shortest distance across peripheral flats. For items with thickness greater than those indicated above, see SPACER, PLATE; WASHER, FLAT and SPACER, RING. When thickness and/or outside diameter or shortest distance across peripheral flats is designated as a tolerance dimension, the maximum dimension will be used to determine compliance. See also SHIM STOCK, LAMINATED; SHIM STOCK ASSORTMENT, GASKET; and BEARING, WASHER, THRUST.
Part Alternates: 5158311, 515831-1, 5365-00-068-7009, 00-068-7009, 5365000687009, 000687009
Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1961 | 00-068-7009 | 20349 ( SHIM ) |
Drawings & Photos | NSN 5365-00-068-7009
Demand History | NSN 5365-00-068-7009
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 515831-1 | 2022-11-312 | 100 | DIBBS |
| 5365-00-068-7009 | 2011-09-251 | 366 | DIBBS |
| 5365-00-068-7009 | 2011-01-25 | 205 | DIBBS |
| 5365-00-068-7009 | 2010-05-145 | 173 | DIBBS |
| 5365-00-068-7009 | 2009-11-331 | 20 | DIBBS |
| 5365-00-068-7009 | 2009-02-57 | 173 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5365-00-068-7009
Technical Data | NSN 5365-00-068-7009
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING |
| SURFACE TREATMENT | CADMIUM |
| CONSTRUCTION | ONE-PIECE |
| BOLT HOLE QUANTITY | 2 |

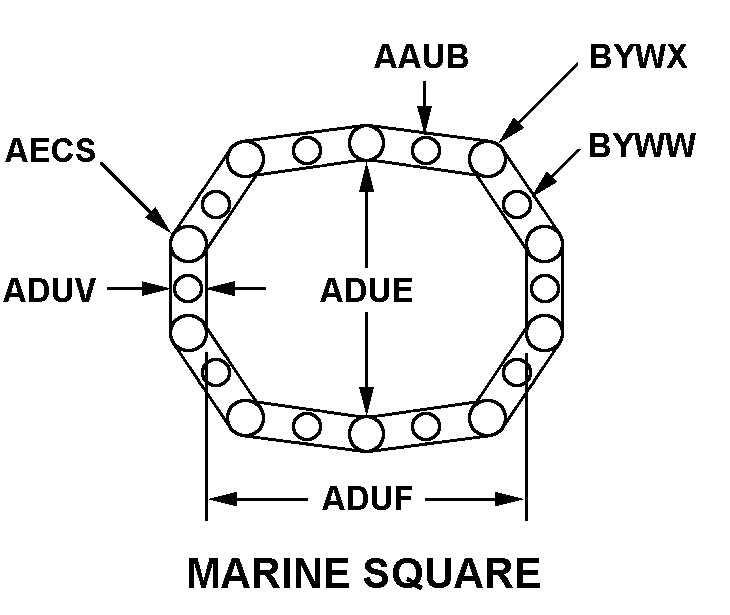

| STYLE DESIGNATOR | A2A MARINE SQUARE W/O BOLT HOLES |
| HOLE DIAMETER | 0.120 INCHES NOMINAL |
| BOLT CIRCLE DIAMETER | 1.455 INCHES NOMINAL |
| OVERALL WIDTH | 1.695 INCHES NOMINAL |
| APERTURE DIAMETER | 1.125 INCHES MINIMUM AND 1.130 INCHES MAXIMUM |
| OUTSIDE CORNER RADIUS | 0.110 INCHES MINIMUM AND 0.130 INCHES MAXIMUM |
| SIDE RADIUS FROM GASKET CENTER | 0.617 INCHES NOMINAL |
| III FSC APPLICATION DATA | MOTOR,ACTUATOR,AIRCRAFT |
| MANUFACTURERS CODE | 70210 |
| DESIGN CONTROL REFERENCE | 515831-1 |
