NSN 5365-00-177-3928 NAS1211A17, 00-177-3928, 001773928
Product Details | DEE RING
5365-00-177-3928 A device in the shape of the letter D, used for attaching and holding straps and lines, or as a handle for certain types of containers.
Part Alternates: NAS1211A17, 5365-00-177-3928, 00-177-3928, 5365001773928, 001773928
Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 29 AUG 1969 | 00-177-3928 | 08392 ( RING, DEE ) |

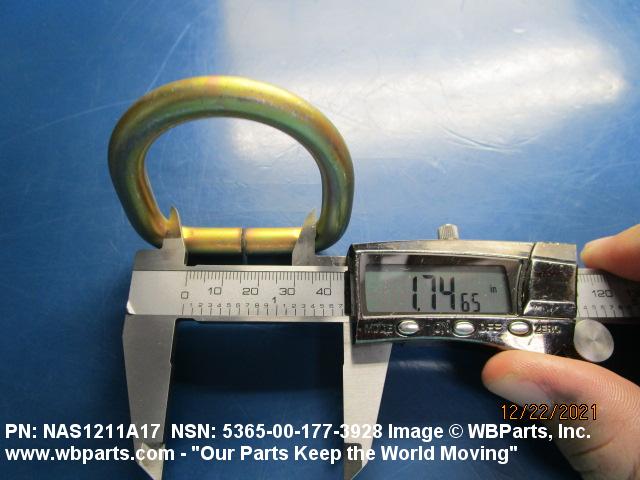

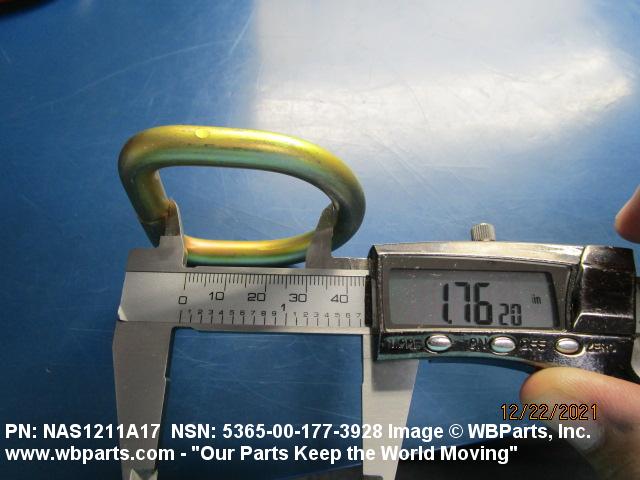

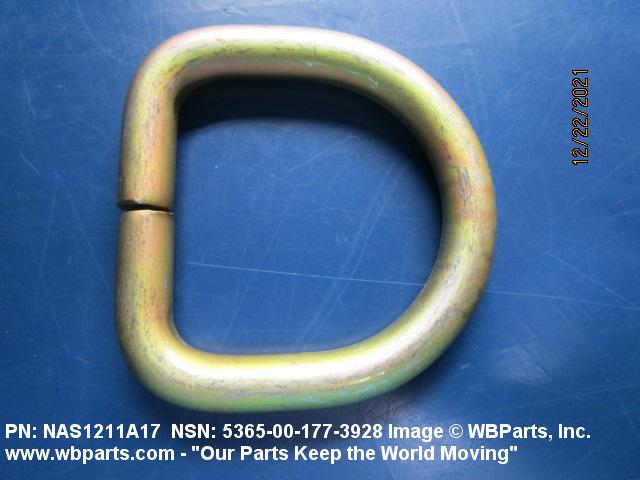

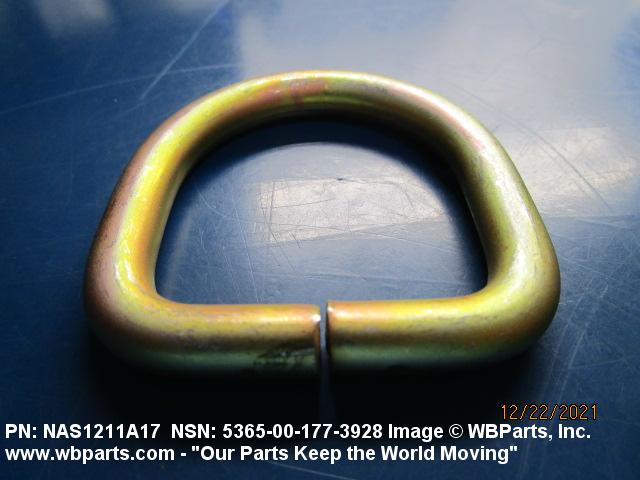

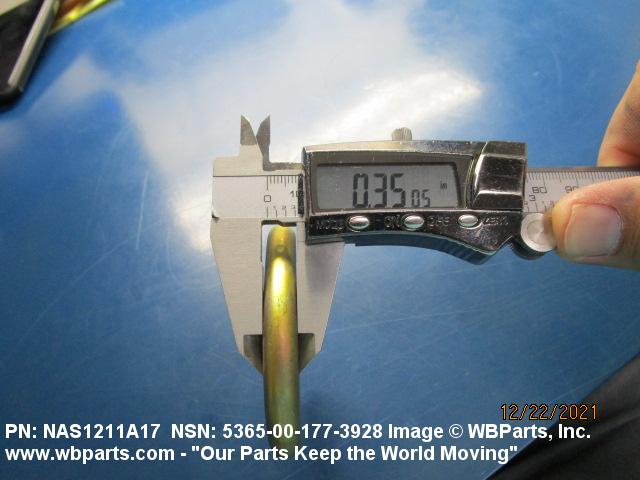

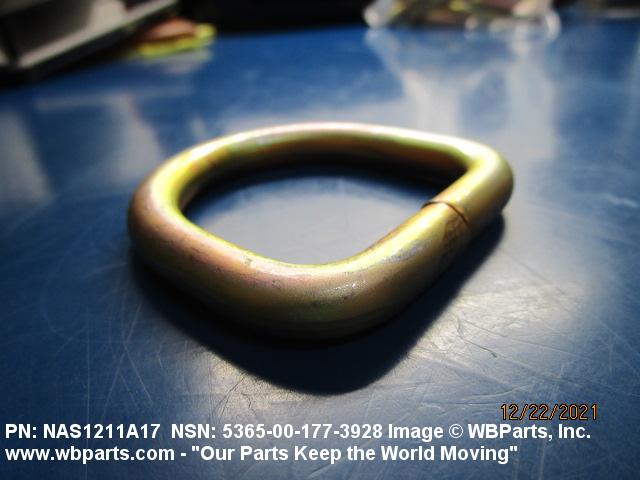

Drawings & Photos | NSN 5365-00-177-3928
Demand History | NSN 5365-00-177-3928
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5365-00-177-3928 | 2023-06-152 | 10 | US |
| 5365-00-177-3928 | 2022-11-332 | 3 | US |
| 5365-00-177-3928 | 2022-06-172 | 12 | US |
| 5365-00-177-3928 | 2022-04-115 | 2 | US |
| NAS1211A17 | 2022-01-12 | 4 | United States |
| NAS1211A17 | 2022-01-12 | 4 | United States |
| NAS1211A17 | 2021-12-344 | 12 | United States |
| 5365-00-177-3928 | 2021-06-173 | 8 | United States |
| 5365-00-177-3928 | 2020-02-35 | 180 | DIBBS |
| 5365-00-177-3928 | 2020-01-31 | 5 | US |
| NAS1211A17 | 2015-02-42 | 23 | US |
| 5365-00-177-3928 | 2013-01-08 | 160 | DIBBS |
| 5365-00-177-3928 | 2012-12-354 | 92 | DIBBS |
| 5365-00-177-3928 | 2012-05-126 | 152 | DIBBS |
| 5365-00-177-3928 | 2010-04-102 | 28 | DIBBS |
Cross Reference | NSN 5365-00-177-3928
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1211A17 | 04348 | LAWRENCE ENGINEERING AND SUPPLY INC |
| NAS1211A17 | 07851 | NOR-CAL SUPPLY CO.INC. |
| NAS1211A17 | 08938 | AIR INDUSTRIES CO INC |
| NAS1211A17 | 30889 | ERIKS SOUTHWEST INC DBA MONTCLAIR ENTERPRISES |
| NAS1211A17 | 50568 | APCOM INC |
| NAS1211A17 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| NAS1211A17 | 71563 | COLLINS ENGINEERING CORP |
| NAS1211A17 | 73197 | HI-SHEAR CORPORATION |
| NAS1211A17 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| NAS1211A17 | 82172 | DURHAM AIRCRAFT SERVICE INC |
| NAS1211A17 | L4528 | LISI AEROSPACE CANADA CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5365-00-177-3928
Related Products | NSN 5365-00-177-3928
Technical Data | NSN 5365-00-177-3928
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE |
| STOCK SIZE | 0.350 IN. DIA |
| FABRICATION METHOD | FORGED |
| INSIDE WIDTH | 1.750 INCHES NOMINAL |
| INSIDE HEIGHT | 1.690 INCHES NOMINAL |
| MOUNTING METHOD | STRAPS |
| STRAIGHT SIDE FORM | NONROLLER |
Restrictions/Controls & Freight Information | NSN 5365-00-177-3928
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 136500 | METAL NOI/METAL ALLOYS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5365-00-177-3928
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
