NSN 5365-00-530-8895 QB731471, QB73147-1, 00-530-8895
Product Details | NONMETALLIC BUSHING
5365-00-530-8895 An item, made of rubber or plastic, usually cylindrical, with or without a flange, having one or more holes extending through its entire length, usually parallel to its axis. The overall length must exceed 25 percent of its diameter or a distance across the peripheral flats for items without a flange. For items formed of other material see BUSHING, SLEEVE. Excludes BUMPER, NONMETALLIC and GROMMET NONMETALLIC.
Part Alternates: QB731471, QB73147-1, 5365-00-530-8895, 00-530-8895, 5365005308895, 005308895
Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1961 | 00-530-8895 | 39929 ( BUSHING, NONMETALLIC ) |

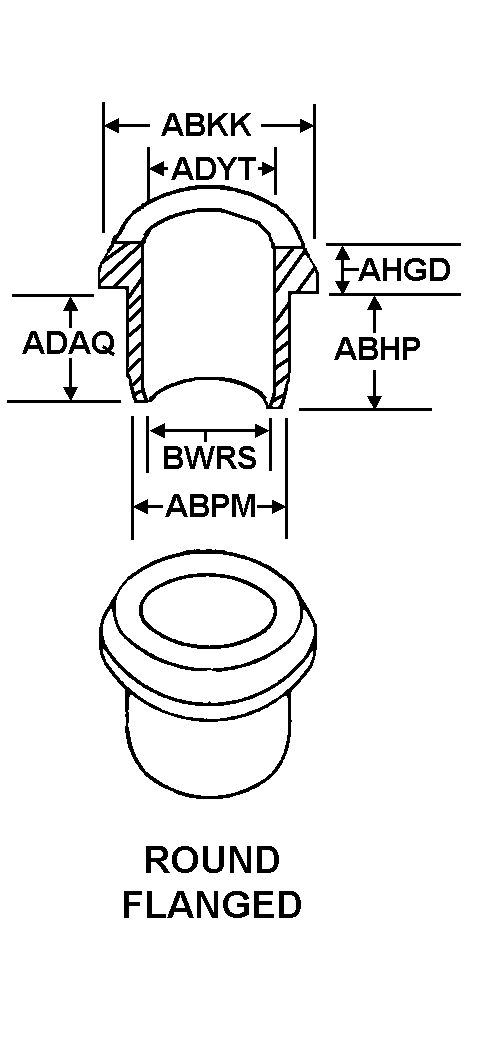

Drawings & Photos | NSN 5365-00-530-8895
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5365-00-530-8895
Technical Data | NSN 5365-00-530-8895
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER, EM45, BENDIX AVIATION CORP |
| SPLIT DESIGN FEATURE | NOT INCLUDED |
| DESIGN TYPE | SINGLE CENTRALLY LOCATED HOLE |
| STYLE DESIGNATOR | 25 ROUND FLANGED |
| OVERALL LENGTH | 0.500 INCHES NOMINAL |
| FLANGE DIAMETER | 1.500 INCHES NOMINAL |
| BODY DIAMETER | 1.063 INCHES NOMINAL |
| BODY LENGTH | 0.375 INCHES NOMINAL |
| CENTER HOLE DIAMETER | 0.375 INCHES NOMINAL |
| FLANGE HEIGHT | 0.125 INCHES NOMINAL |
| TAPERED CENTER HOLE SMALLEST DIAMETER | ANY ACCEPTABLE |
| NONMETALLIC HARDNESS RATING | 70.0 NOMINAL DUROMETER |
| SPECIAL FEATURES | FOUR 1/8 IN. DIA HOLES SPACED 90 DEG APART ON CIRCLE 11/16 IN. DIA AND CONCENTRIC W/CENTER HOLE |
| MANUFACTURERS CODE | 55974 |
| DESIGN CONTROL REFERENCE | QB73147-1 |
Restrictions/Controls & Freight Information | NSN 5365-00-530-8895
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
