NSN 5365-00-663-2125 MS342010, MS3420-10, MS3905610

Product Details | NONMETALLIC BUSHING

5365-00-663-2125 An item, made of rubber or plastic, usually cylindrical, with or without a flange, having one or more holes extending through its entire length, usually parallel to its axis. The overall length must exceed 25 percent of its diameter or a distance across the peripheral flats for items without a flange. For items formed of other material see BUSHING, SLEEVE. Excludes BUMPER, NONMETALLIC and GROMMET NONMETALLIC.

Part Alternates: MS342010, MS3420-10, MS3905610, MS39056-10, MS390565, MS39056-5, MS432010, MS4320-10, MP2820A, MP2820A01/N0101, MP2820A01N0101, A18220PT10CHANGEB, AN342010, AN3420-10 , AN742D10, CA 18220-10, CA1822010, CA18220-10, S2041006REV2PT5, S204-1006REV2PT5, G1601M18A288B2A, R17B42750, 97-79-513-10, 9779-513-10, 1420236152, 1420-2-3615-2, 1865K78P005, 2041006P5, 204-1006P5, 2041006PT5, 204-1006PT5, 2360-069220-05-0, 332374, 33-2374, 342010, 3420-10, 3578437000, 357-8437-000, 3803955, 4160975, 416097-5, 01221900, 012-219-00, 0S342010, 0S3420-10, 10118604 , 461-058-010, 6600041830, 6600-041830, 803955, 8538292, 90177105, 901771-05, 913877, 5365-00-663-2125, 00-663-2125, 5365006632125, 2360069220050, 461058010, 006632125, 137619161, 977951310

Hardware and Abrasives | Bushings, Rings, Shims, and Spacers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-663-2125	39929 ( BUSHING, NONMETALLIC )

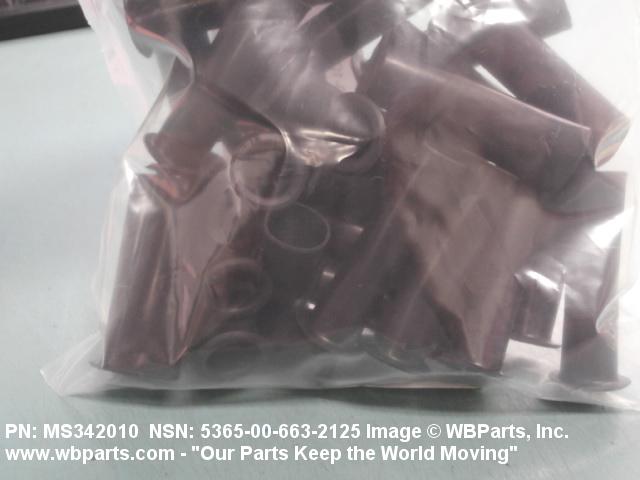

Drawings & Photos | NSN 5365-00-663-2125

Part Number	Request Date	QTY	Origin
5365-00-663-2125	2025-03-85	1667	DIBBS
AN742D10	2024-09-263	50	United States
AN742D10	2024-09-263	50	United States
AN742D10	2024-04-110	100	United States
AN742D10	2024-04-110	100	United States
5365-00-663-2125	2018-11-322	6326	DIBBS
5365-00-663-2125	2018-10-281	2976	DIBBS
AN742D10	2018-06-171	100	US
5365-00-663-2125	2017-04-108	2956	DIBBS
5365-00-663-2125	2016-10-288	1709	US
5365-00-663-2125	2016-09-271	1709	DIBBS
MS342010	2016-08-223	1564	United States
MS3420-10	2014-07-203	8
MS342010	2014-04-106	1	United States
5365-00-663-2125	2012-03-76	680	DIBBS
5365-00-663-2125	2011-01-06	20	FR
5365-00-663-2125	2010-04-102	3488	DIBBS

Cross Reference | NSN 5365-00-663-2125

Part Number	Cage Code	Manufacturer
012-219-00	71468	ITT CORPORATION DBA I T T CANNON
0S3420-10	71468	ITT CORPORATION DBA I T T CANNON
137619161	A0199	OTO MELARA SPA
1420-2-3615-2	15942	USACECOM INTELLIGENCE ELECTRONIC WARFARE SENSORS DIRECTORATE
1865K78P005	26512	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE
204-1006P5	3B150	RAYTHEON TECHNICAL SERVICES COMPANY LLC
204-1006P5	49956	RAYTHEON COMPANY DBA RAYTHEON
204-1006PT5	3B150	RAYTHEON TECHNICAL SERVICES COMPANY LLC
204-1006PT5	49956	RAYTHEON COMPANY DBA RAYTHEON
2360-069220-05-0	D1839	BUNDESAMT FUER AUSRUESTUNG,
2360-069220-05-0	D1871	KRAUSS-MAFFEI WEGMANN GMBH & CO. KG DBA KMW KRAUSS-MAFFEI WEGMANN
33-2374	U3577	RACAL INSTRUMENTS WIRELESS SOLUTIONS TD AN AEROFLEX COMPANY
3420-10	80058	JOINT ELECTRONICS TYPE DESIGNATION SYSTEM
357-8437-000	13499	ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS
357-8437-000	95105	ROCKWELL COLLINS, INC. DIV GOVERNMENT SYSTEMS - DALLAS
3803955	19203	PICATINNY ARSENAL
416097-5	96214	RAYTHEON COMPANY DBA RAYTHEON
461-058-010	07421	INTERSTATE ELECTRONICS CORPORATION DBA L-3 INTERSTATE ELECTRONICS
6600-041830	80041	NAVAL ACADEMY
803955	19203	PICATINNY ARSENAL
8538292	18876	U S ARMY AVIATION AND MISSILE COMMAND
901771-05	90536	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
913877	F0302	HISPANO SUIZA GROUPE SAFRAN
97-79-513-10	74868	AMPHENOL CORPORATION
9779-513-10	02660	AMPHENOL CORP SPECTRA-STRIP/ITD
9779-513-10	F6162	AMPHENOL SOCAPEX
A18220PT10CHANGEB	71468	ITT CORPORATION DBA I T T CANNON
AN3420-10	71468	ITT CORPORATION DBA I T T CANNON
AN3420-10	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AN3420-10	A1587	VEAM SPA
AN3420-10	A4072	ITT CANNON VEAM ITALIA SRL
AN742D10	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
CA 18220-10	C5108	DELCOM ELECTRONIC GMBH
CA 18220-10	K0316	ITT INDUSTRIES LIMITED ITT CANNON UK
CA18220-10	71468	ITT CORPORATION DBA I T T CANNON
G1601M18A288B2A	06324	GLENAIR, INC.
MP2820A	U0409	FACTRON SCHLUMBERGER
MP2820A	U5602	SCHLUMBERGER INDUSTRIES
MP2820A01/N0101	U0409	FACTRON SCHLUMBERGER
MP2820A01/N0101	U5602	SCHLUMBERGER INDUSTRIES
MS3420-10	13113	SHEPHERD PRODUCTS U S INC
MS3420-10	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS39056-10	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS39056-5	71468	ITT CORPORATION DBA I T T CANNON
MS39056-5	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS4320-10	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
R17B42750	99993	DEPARTMENT OF THE NAVY
S204-1006REV2PT5	49956	RAYTHEON COMPANY DBA RAYTHEON

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5365-00-663-2125

Compare

Related Products | NSN 5365-00-663-2125

5365-00-663-2130, 5365-00-663-2132, 5365-00-663-2135, 5365-00-663-2211, 5365-00-663-2220

Technical Data | NSN 5365-00-663-2125

Characteristic	Specifications
SPLIT DESIGN FEATURE	NOT INCLUDED
MATERIAL	RUBBER, MIL-STD-417, TYPE S, CLASS SC, GRADE SC 515A1B1C1E3F2GM
DESIGN TYPE	SINGLE CENTRALLY LOCATED HOLE
STYLE DESIGNATOR	1 ROUND FLANGED
OVERALL LENGTH	2.375 INCHES NOMINAL
FLANGE DIAMETER	0.869 INCHES NOMINAL

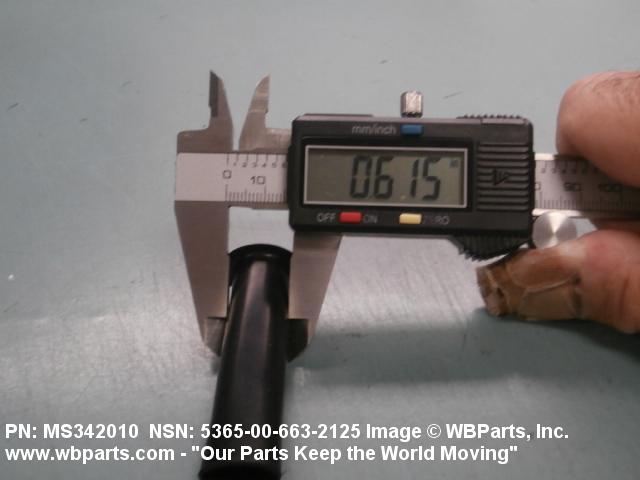

BODY DIAMETER	0.615 INCHES NOMINAL
BODY LENGTH	2.312 INCHES NOMINAL
CENTER HOLE DIAMETER	0.562 INCHES NOMINAL
FLANGE HEIGHT	0.062 INCHES NOMINAL
BEVEL DEG AND DISTANCE FROM FLANGE TOP	45 DEG OF BEVEL 0.046 IN. FROM TOP OF FLANGE
FLANGE END HOLE CORNER RADIUS	0.062 INCHES NOMINAL
CORNER RADIUS BETWEEN FLANGE AND BODY	0.062 INCHES NOMINAL
NONMETALLIC HARDNESS RATING	50.0 NOMINAL DUROMETER
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS3420-10

Restrictions/Controls & Freight Information | NSN 5365-00-663-2125

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	U	96 months
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	114800	BEARING,ROLLER,THRUST
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	846	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5365-00-663-2125

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	B	Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous Group	BK	CH-47
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	U	96 months
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	U	96 months
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	G	General Property MaterielDefense Supply Center Richmond (DSCR)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	K	Reserved
Physical Category Code	1	Bin
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	U	96 months
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	U	96 months
Purchasing	QTY UOM	1 EA : Each
