NSN 5365-00-752-7622 10-40822-59, 7527622, 00-752-7622
Product Details | NONMETALLIC BUSHING
5365-00-752-7622 An item, made of rubber or plastic, usually cylindrical, with or without a flange, having one or more holes extending through its entire length, usually parallel to its axis. The overall length must exceed 25 percent of its diameter or a distance across the peripheral flats for items without a flange. For items formed of other material see BUSHING, SLEEVE. Excludes BUMPER, NONMETALLIC and GROMMET NONMETALLIC.
Part Alternates: 10-40822-59, 7527622, 5365-00-752-7622, 00-752-7622, 5365007527622, 104082259, 007527622
Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-752-7622 | 39929 ( BUSHING, NONMETALLIC ) |
Drawings & Photos | NSN 5365-00-752-7622
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5365-00-752-7622
Technical Data | NSN 5365-00-752-7622
| Characteristic | Specifications |
|---|---|
| SPLIT DESIGN FEATURE | NOT INCLUDED |
| MATERIAL | RUBBER, SYNTHETIC |
| DESIGN TYPE | SINGLE CENTRALLY LOCATED HOLE |

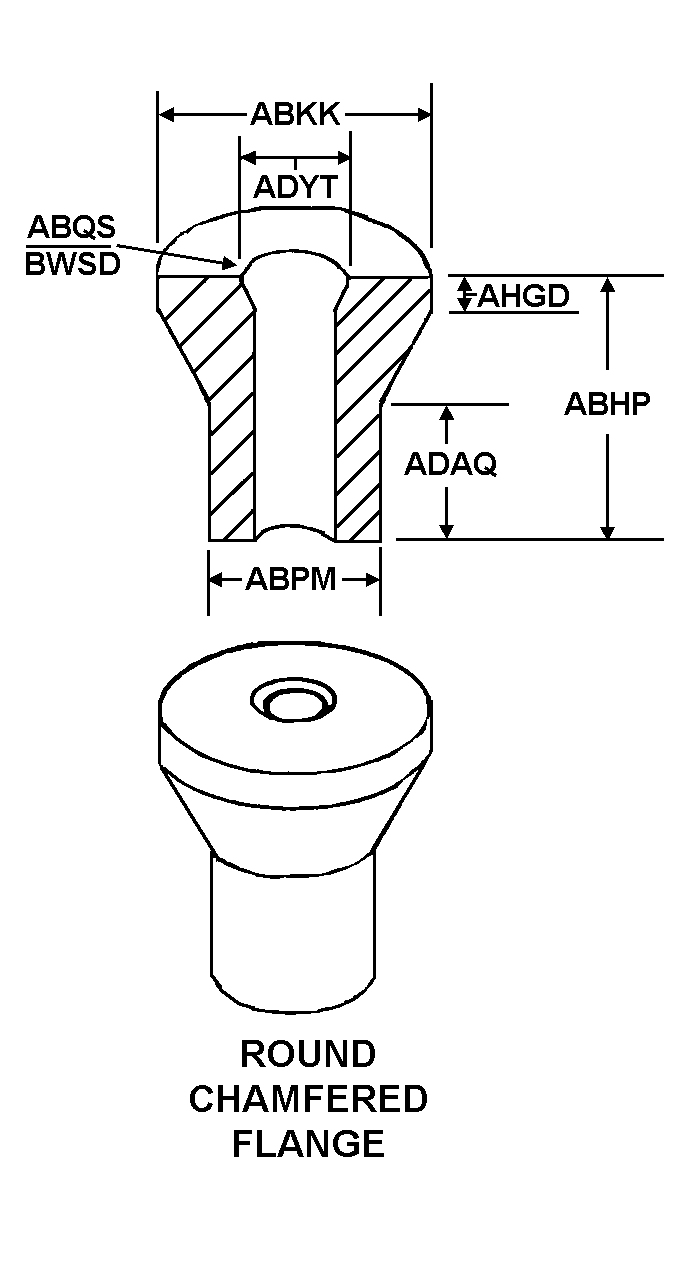

| STYLE DESIGNATOR | 28 ROUND CHAMFERED FLANGE |
| OVERALL LENGTH | 0.772 INCHES MINIMUM AND 0.782 INCHES MAXIMUM |
| FLANGE DIAMETER | 1.068 INCHES MINIMUM AND 1.078 INCHES MAXIMUM |
| BODY DIAMETER | 0.990 INCHES MINIMUM AND 1.000 INCHES MAXIMUM |
| COUNTERSUNK HOLE ANGLE IN DEG | 90.0 |
| BODY LENGTH | 0.688 INCHES NOMINAL |
| CENTER HOLE DIAMETER | 0.561 INCHES MINIMUM AND 0.572 INCHES MAXIMUM |
| FLANGE HEIGHT | 0.084 INCHES MINIMUM AND 0.094 INCHES MAXIMUM |
| NONMETALLIC HARDNESS RATING | NOT RATED |
Restrictions/Controls & Freight Information | NSN 5365-00-752-7622
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 000000 | NO NMFC FREIGHT DESCRIPTION |
| Less than car load rating | ||
| Less than truck load rating | Z | No Rating |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
